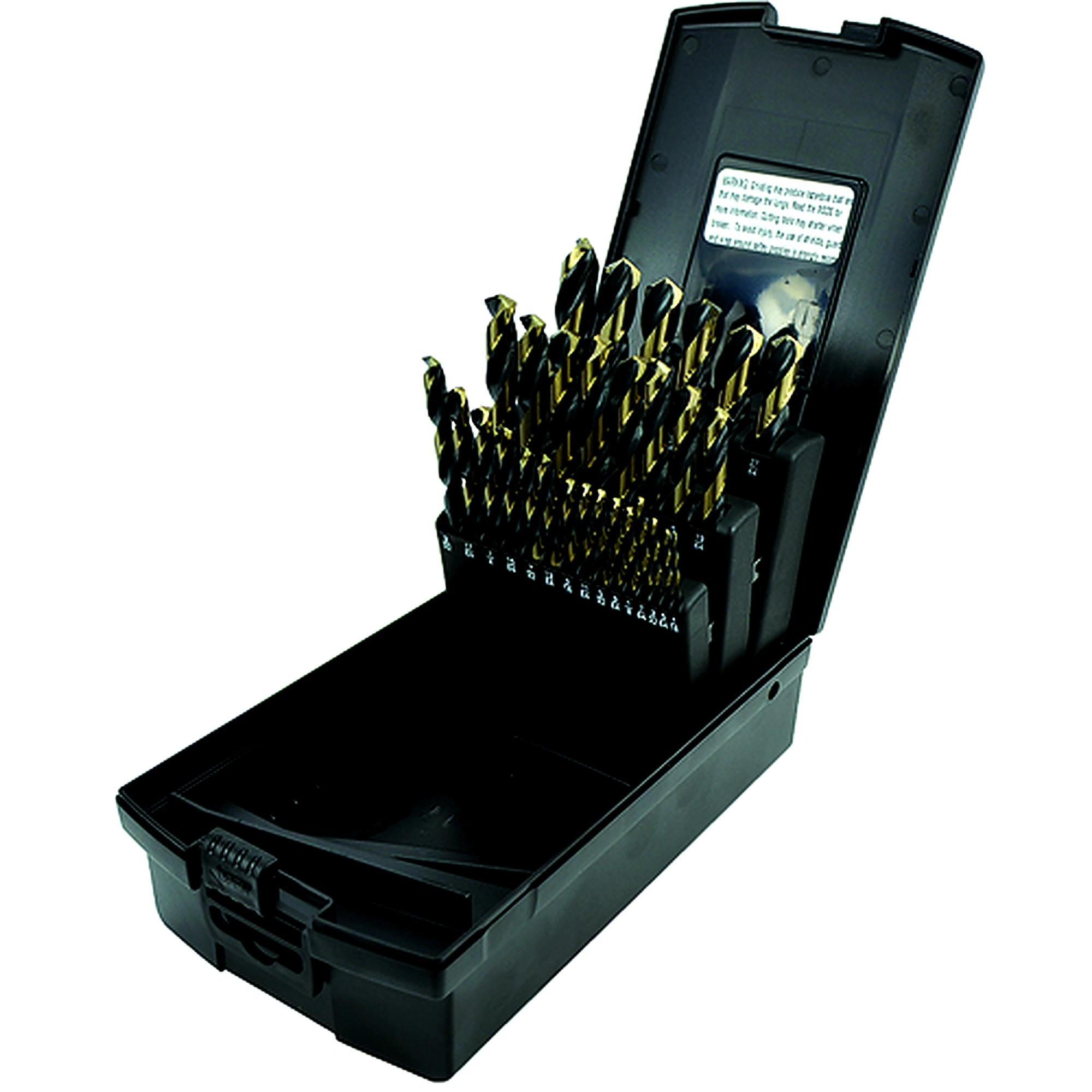

MORSE CUTTING TOOLS 82144 MX1082144 Mechanics Length Drill Set, 1/16 Inch to 1/2 Inch Dia. Range
Get it by Monday, Aug 17
€334.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Coating | Black Oxide, Gold Oxide |
| Coolant Delivery | External |
| Coolant Supply Property | External |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Dia. | 1/16" to 1/2" |
| Drill Bit Size | 3/8", 5/16", 1/8", 1/4", 1/2", 7/32", 11/32", 7/16", 3/16", 9/32", 13/32", 15/32", 5/32", 3/32", 1/16", 25/64", 11/64", 21/64", 13/64", 15/64", 9/64", 7/64", 5/64", 17/64", 27/64", 23/64", 29/64", 31/64", 19/64" |
| Finish, Coating | Gold And Black Oxide |
| Flute Count | 2 |
| Flute Length | 2", 3 1/8", 3", 2 1/2", 1 1/4", 1", 2 1/8", 2 1/4", 1 9/16", 1 15/16", 7/8", 1 7/8", 1 7/16", 3 1/4", 1 13/16", 2 9/16", 1 5/16", 2 7/8", 2 3/4", 2 1/16", 2 13/16", 1 11/16", 2 5/8", 2 11/16", 2 3/8", 2 15/16", 3 3/8" |
| Flute Type | Standard |
| Increment | 0.01562" |
| Largest Drill Bit Size | 1/2" |
| Length Group | Mechanics Length |
| Material | High Speed Steel |
| Material Grade | Grade M7 |
| Max. Cutting Dia. | 1/2" |
| Measurement Type | Imperial |
| Min. Cutting Dia. | 1/16" |
| No. Of Flutes | 2 |
| No. Of Pieces | 29 |
| Overall Length | 2", 5", 4", 3 1/8", 3", 2 1/2", 3 1/2", 2 1/4", 4 1/2", 4 5/8", 1 7/8", 4 3/4", 4 1/8", 3 1/4", 2 7/8", 4 1/4", 3 5/8", 2 3/4", 4 7/8", 2 5/8", 3 3/4", 2 3/8", 3 7/8", 3 3/8", 4 7/16", 4 3/16", 4 3/8", 4 1/16", 4 5/16", 3 1/8" |
| Point Angle | 135° |
| Point Angle (sig) | 135° |
| Point Type | Split Point |
| Series | 383 Series |
| Shank Type | 3 Flat |
| Smallest Drill Bit Size | 1/16" |
| Spiral/cut | Right Hand Spiral/Right Hand Cut |
| Step Increments | 0.01562" |
| Tool Type | Mechanics Length Drill |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
