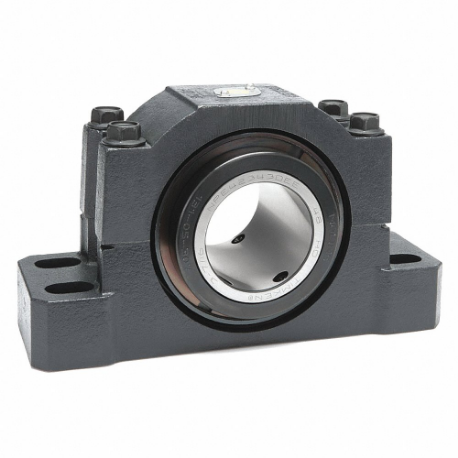

MOLINE BEARING 49342215 Pillow Block Bearing, 2 15/16 Inch Bore, Fixed, Ductile Iron, 3 1/8 Inch Shaft Height | CT3TWT 60JT84

MOLINE BEARING 49342215 Pillow Block Bearing, 2 15/16 Inch Bore, Fixed, Ductile Iron, 3 1/8 Inch Shaft Height

Item: CT3TWTModel: 49342215Cross Ref: 60JT84
Check Availability
In Stock

Get it by Tuesday, Dec 23

€2,322.33
10.00% off
€2,090.10 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Pillow Block Bearing
Application Aggregate And Cement, Air Handling, Baggage Handling, Food Processing, Mining, Paper And Forestry
Base Height 1 22/25"
Base Width 3 3/4"
Bearing Housing Material Type Ductile Iron
Bearing Insert Material Alloy Steel
Bearing Insert Type Tapered Roller
Bearing Material Grade Grade 52100
Bolt Center To Center Length 9 1/2"
Bore Dia. 2.938"
Bore Diameter 2 15/16"
Bore Type Cylindrical
Center Height 3 1/8"
Closure Double Sealed
Dimension H 1 7/8"
Dimension J 6 13/16"
Dimension L 4 5/8"
Dynamic Axial Load Capacity 12300 lbf.
Expansion Type Fixed
Housing Material Ductile Iron
Housing Type Split
Included Bearing Non-Expansion Timken Type E Tapered Roller
Includes Non-Expansion Timken Type E Tapered Roller Bearing
Load Direction Radial, Thrust
Lubricant Material Lithium Complex Grease
Max. Angular Misalignment 4°
Max. Speed 1965 RPM
Max. Temp. 250°F
Maximum Misalignment Angle 4°
Minimum Temperature -40°F
Mount Hole Center-to-center Length 9 1/2"
Mount Hole Center-to-center Width 2 1/8"
Mount Hole Size 1 3/8"
Mounting Bolt Size 5/8"
Mounting Surface To Shaft Center 3 1/8"
Mounting Surface To Shaft Center (height) 3.13"
Mounting Surface To Shaft Center Height 3 1/8"
Mounting Type Bolt Through
Number Of Bolts 4
Number Of Mounting Holes 4
Overall Height 6.812"
Overall Length 11 3/4"
Overall Width 4 1/2"
Seal Type Contact
Shaft Locking Type Set Screws
Split Housing Split Horizontally
Static Radial Load Capacity 61200 lbf.
System Of Measurement Inch
Width 4 1/2"

Shipping Info:

Ship weight (kg) 15.75
Ship height (cm)17.3
Ship length (cm)29.85
Ship width (cm)11.43
Country of OriginUS

Product Variants

ProductModelBore Dia.Overall WidthOverall LengthOverall HeightStatic Radial Load CapacityMax. SpeedDynamic Axial Load CapacityBase HeightPrice
MOLINE BEARING 19321108 Pillow Block Bearing, 1 1/2 Inch Bore, Expansion, Cast Iron, 2 1/8 Inch Shaft Height | CT3TUU 60JR26 193211081 1/2"3 3/8"7 7/8"4 1/4"33000 lbf.2800 RPM7860 lbf.1 1/4"€745.37
MOLINE BEARING 49322108 Pillow Block Bearing, 1 1/2 Inch Bore, Fixed, Ductile Iron, 2 1/8 Inch Shaft Height | CT3TUV 60JT71 493221081 1/2"3.38"7 3/4"4.687"33000 lbf.2800 RPM7860 lbf.1 1/4"€1,163.41
MOLINE BEARING 19321104 Pillow Block Bearing, 1 1/4 Inch Bore, Expansion, Cast Iron, 1 1/2 Inch Shaft Height | CT3TUX 60JR23 193211041 1/4"2 7/8"6 1/4"3"15760 lbf.3800 RPM3810 lbf.22/25"€629.42
MOLINE BEARING 19321111 Pillow Block Bearing, 1 11/16 Inch Bore, Expansion, Cast Iron, 2 1/8 Inch Shaft Height | CT3TVA 60JR27 193211111.688"3 3/8"7 7/8"4 1/4"33000 lbf.2800 RPM7860 lbf.1 1/4"€788.82
MOLINE BEARING 19321115 Pillow Block Bearing, 1 15/16 Inch Bore, Expansion, Cast Iron, 2 1/4 Inch Shaft Height | CT3TVD 60JR29 193211151.938"8 7/8"8 7/8"3 1/2"43000 lbf.2650 RPM10300 lbf.1.31"€778.99
MOLINE BEARING 49322115 Pillow Block Bearing, 1 15/16 Inch Bore, Fixed, Ductile Iron, 2 1/4 Inch Shaft Height | CT3TVE 60JT73 493221151.938"3 1/2"8 7/8"5"43000 lbf.2650 RPM10300 lbf.1.31"€1,300.38
MOLINE BEARING 19321103 Pillow Block Bearing, 1 3/16 Inch Bore, Expansion, Cast Iron, 1 1/2 Inch Shaft Height | CT3TVH 60JR22 193211031.188"2 7/8"6 1/4"3"15760 lbf.3800 RPM3810 lbf.22/25"€678.10
