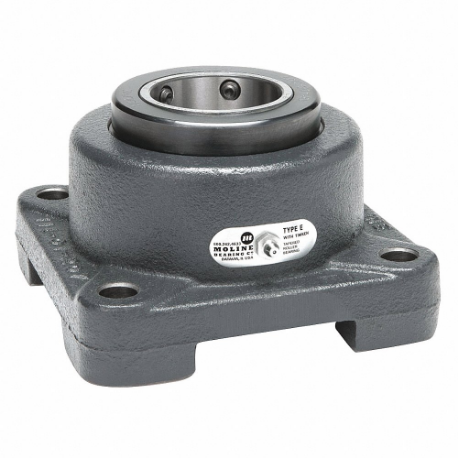

MOLINE BEARING 19311207 Flange Bearing, Tapered Roller, 2 7/16 Inch Bore, Cast Iron, Set Screws, 6 7/8 Inch Length
Item: CT3TRZModel: 19311207Cross Ref: 60JR16
7 In Stock
Ships within 2 days via
13.00% off
€695.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bearing |
| Application | Aggregate, Conveying, Cranes, Forestry, Gas, Mining, Oil, Power Generation, Screening |
| Bearing Housing Material Type | Cast Iron |
| Bearing Insert Material | Alloy, Steel |
| Bearing Insert Type | Tapered Roller |
| Bearing Lubrication | Lithium Complex Grease |
| Bearing Material Grade | Grade 52100 |
| Bolt Center To Center Length | 5 3/8" |
| Bolt Size | 5/8" |
| Bore Dia. | 2 7/16" |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Dimensions A | 4" |
| Dimensions B | 6 7/8" |
| Dimensions C | 5 3/8" |
| Dimensions D | 5 3/8" |
| Dimensions E | 3/16" |
| Dimensions F | 5/8" |
| Dimensions H | 1 1/2" |
| Dimensions J | 5 3/4" |
| Dimensions L | 4" |
| Dynamic Load Capacity | 11600 lbf. |
| Expansion Type | Fixed |
| Features | Assembled, Adjusted And Pre-Lubricated In Advance For Immediate Use, Close Fit Oversized Collars Act As Flingers For Additional Protection In Dusty Or Damp Environments, Housings Of Class 30 Cast Iron, Standard V-Guard Nitrile And Teflon Contact Seal Or Balanced Labyrinth Seal, Timken Lithium Complex Grease Operating Temperature Is Upto 250°, High Temperature Grease Is Available Upto 350° |
| Flange Thickness | 1 1/2" |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Material Grade | Class 30 |
| Housing Type | Square |
| Included | Timken Type E Tapered Roller Bearing |
| Insert Material | Alloy Steel |
| Insert Type | Tapered Roller |
| Load Direction | Radial, Thrust |
| Lubricant Material | Lithium Complex Grease |
| Lubrication Openings | One Zirc Fitting |
| Max. Temp. | 250°F |
| Min. Temp. | -40°F |
| Mount Hole Center To Center Height | 5 3/8" |
| Mount Hole Center To Center Length | 5 3/8" |
| Mount Hole Size | 5/8" |
| Mounting Bolt Size | 5/8" |
| No. Of Mount Holes | 4 |
| No. Of Mounting Holes | 4 |
| Overall Height | 6 7/8" |
| Overall Length | 6 7/8" |
| Overall Width | 4" |
| Rolling Element Rows | 2 |
| Seal Material | Nitrile, Teflon |
| Seal Type | Contact |
| Shaft Locking Type | Set Screw |
| Static Radial Load Capacity | 54000 lbf. |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 2.93 |
| Ship height (cm) | 17.46 |
| Ship length (cm) | 17.46 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Height | Dynamic Load Capacity | Seal Type | Overall Width | Bearing Insert Type | Bolt Size | Static Radial Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
19111108 | 1 1/2" | 4 5/8" | 16600 lbf. | Triple Lip | 2.938" | - | 1/2" | 18300 lbf. | €708.67 | |
 |
19231108 | 1 1/2" | 5 1/4" | 16600 lbf. | Triple Lip, Contact | 2 13/16" | Spherical Roller | 3/8" | 18300 lbf. | €730.46 | |
 |
19211108 | 1 1/2" | 4 5/8" | 16600 lbf. | Triple Lip, Contact | 2 15/16" | Spherical Roller | 1/2" | 18300 lbf. | €684.82 | |
|
19211104 | 1 1/4" | 4 5/8" | 16600 lbf. | Triple Lip, Contact | 2 15/16" | Spherical Roller | 1/2" | 18300 lbf. | €743.66 | |
|
19111111 | 1 11/16" | 5" | 17300 lbf. | Triple Lip, Contact | 3 1/16" | Spherical Roller | 1/2" | 19800 lbf. | €764.31 | |
|
19211111 | 1 11/16" | 5" | 17300 lbf. | Triple Lip, Contact | 3 1/16" | Spherical Roller | 1/2" | 19800 lbf. | €804.53 | |
 |
19131115 | 1 15/16" | 6 3/8" | 19000 lbf. | Triple Lip, Contact | 3" | Spherical Roller | 7/16" | 22500 lbf. | €825.16 |
