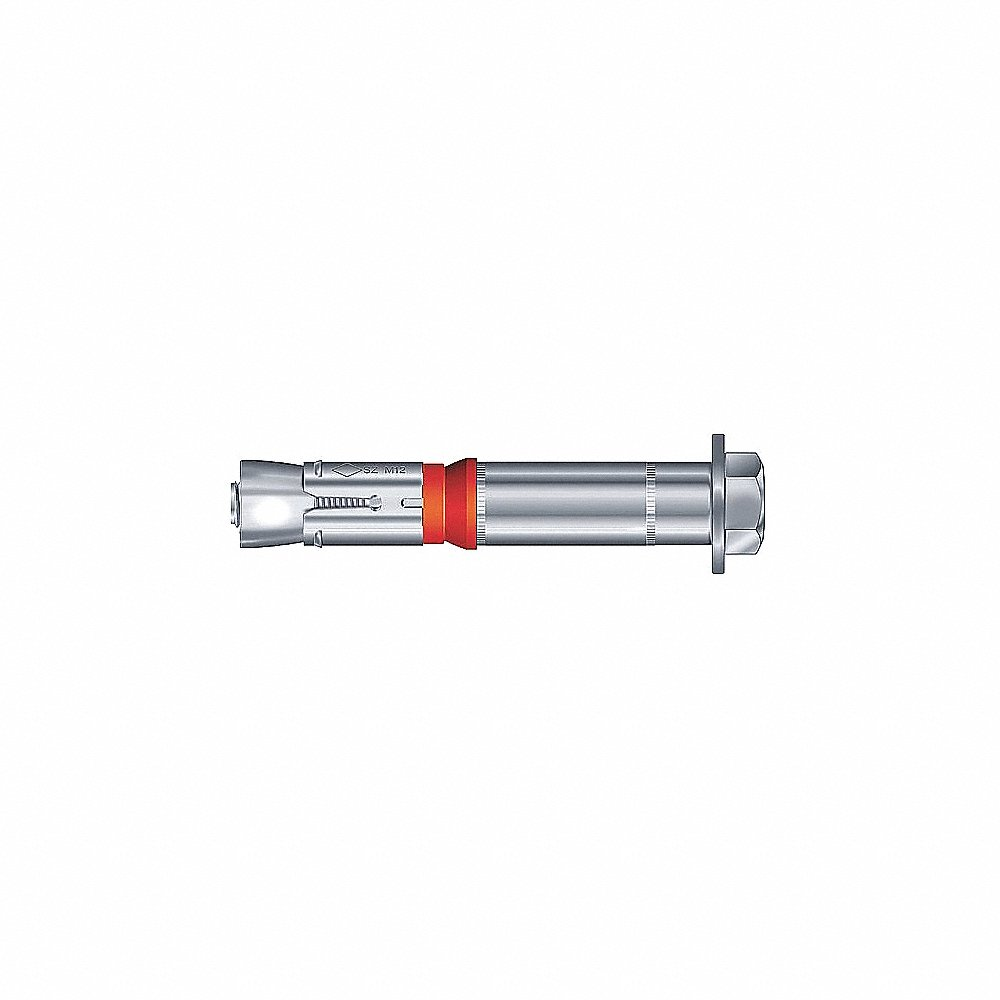

MKT FASTENING M16105301 Wedge Anchor Stud, M8x1.25 Thread Size, 80 mm Lg., 12 mm Dia.
Item: AD8HPXModel: M16105301Cross Ref: 44ZT59
7 In Stock
Ships within 2 days via
10.00% off
€89.95 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wedge Anchor Stud |
| Anchor Diameter | 12 mm |
| Class | Class 8.8 |
| Compatible Material | Concrete |
| Diameter | 12 mm |
| Display Qty | 50 |
| Drill Bit Size | 12 mm |
| Finish | Zinc Plated |
| Icc Approved For Cracked Concrete | Yes |
| Icc Approved For Un-cracked Concrete | Yes |
| Includes | Nut, Washer |
| Industry Standards | Eta-02/0030, Icc Esr-3173 |
| Length | 80 mm |
| Material | Steel |
| Material Grade/class | Class 8.8 |
| Max. Work Thickness | 5 mm |
| Maximum Installation Torque | 22 lbs.-ft. |
| Maximum Material Thickness | 0 mm |
| Maximum Ultimate Shear Strength | 44623 lbs. |
| Maximum Ultimate Tension Strength | 21444 lbs. |
| Min. Embedment | 60 mm |
| Minimum Installation Depth | 70 mm |
| Minimum Installation Torque | 22 lbs.-ft. |
| Minimum Material Thickness | 127 mm |
| Nut Width | 13 mm |
| Overall Length | 80 mm |
| Removable | Removable |
| Seismic Approved | Yes |
| System Of Measurement | Metric |
| Thread Size | M8 |
| Type | Wedge Anchor |
| Ultimate Shear Strength At 4000 Psi | 8497 lbs. |
| Ultimate Tension Strength (4,000 Psi Concrete) | 5780 lbs. |
| Washer Outside Diameter | 20 mm |
Shipping Info:
| Ship weight (kg) | 0.56 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 7.62 |
| HS code | 7316000000 |
| Country of Origin | DE |
