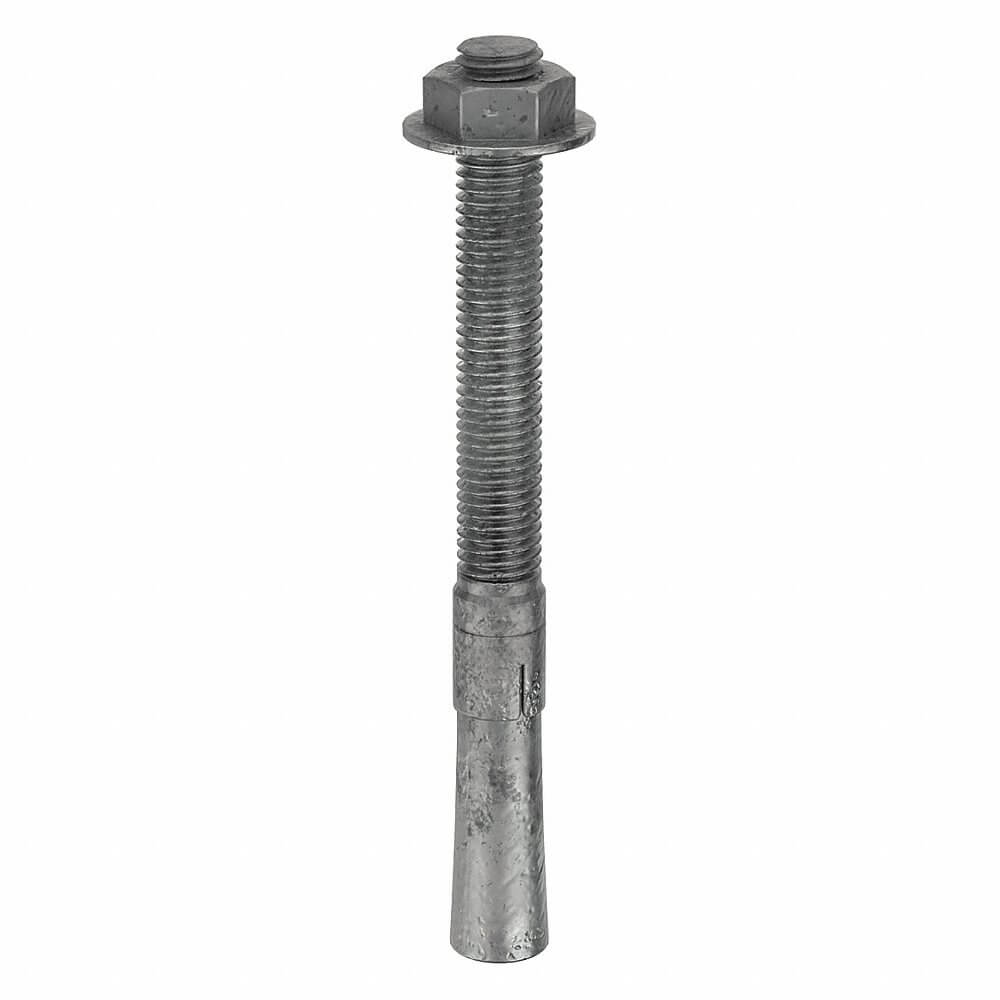

MKT FASTENING 2858700 Wedge Anchor, 5/8 In - 11 Thread Size, 7 In Anchor Lg., 4 In Thread Lg., 5/8 In Anchor Dia., 4 1/4 In Max. Work Thk.
Item: AB6KPRModel: 2858700Cross Ref: 21U993
7 In Stock
Ships within 2 days via
13.00% off
€37.67 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wedge Anchor |
| Anchor Length | 7" |
| Compatible Material | Concrete |
| Display Qty | 5 |
| Drill Bit Size | 5/8" |
| Finish | Galvanized |
| Icc Approved For Cracked Concrete | No |
| Icc Approved For Un-cracked Concrete | Yes |
| Included | Nut And Washer |
| Industry Standards | Dot Metro Dade Nca No: 10-0928.01, Fm Approved, Gsa Specification Ff-S-325C, Group Ii, Type 4, Class 1, Icc Esr-3782 C-Stl, Zp 1/4" Ss, Ul Listed |
| Material | Steel |
| Material Grade/class | Grade 2 |
| Max. Installation Torque | 75 lbs.-ft. |
| Max. Material Thickness | 3 5/8" |
| Max. Ultimate Shear Strength | 9659 lbs. |
| Max. Ultimate Tension Strength | 9294 lbs. |
| Max. Work Thickness | 4 1/4" |
| Min. Embedment | 2 3/4" |
| Min. Installation Depth | 2 3/4" |
| Min. Installation Torque | 40 lbs.-ft. |
| Min. Material Thickness | 4" |
| Nut Width | 0.9375" |
| Overall Length | 7" |
| Seismic Approved | No |
| System Of Measurement | Imperial |
| Thread Length | 4" |
| Thread Size | 5/8"-11 |
| Ultimate Pullout (lb.) | 9294 |
| Ultimate Shear | 9659 lbs. |
| Ultimate Shear Strength 4000 Psi Concrete | 9659 lbs. |
| Ultimate Tension | 9294 lbs. |
| Ultimate Tension Strength 3000 Psi Concrete | 6957 lbs. |
| Ultimate Tension Strength 4000 Psi Concrete | 9294 lbs. |
| Washer Outside Dia. | 1.312" |
| Wedge Anchor Type | Standard |
Shipping Info:
| Ship weight (kg) | 1.6 |
| Ship height (cm) | 2.29 |
| Ship length (cm) | 18.29 |
| Ship width (cm) | 12.95 |
| HS code | 7316000000 |
| Country of Origin | DE |
Product Variants
| Product | Model | Anchor Dia. | Anchor Length | Finish | Thread Length | Max. Work Thickness | Min. Installation Depth | Drill Bit Size | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2814134 | 1/4" | 1 3/4" | Galvanized | 7/8" | 5/8" | 1 1/8" | 1/4" | Grade 2 | 20 | €21.77 | |
 |
2814214 | 1/4" | 2 1/4" | Galvanized | 1 3/8" | 1 1/8" | - | - | - | 20 | €27.32 | |
 |
2838214 | 3/8" | 2 1/4" | Galvanized | 1 3/16" | 5/8" | 1 5/8" | 3/8" | Grade 2 | 20 | €37.80 | |
 |
2838234 | 3/8" | 2 3/4" | Galvanized | 1 5/8" | 1 1/8" | 1 5/8" | 3/8" | Grade 2 | 20 | €41.38 | |
 |
2838300 | 3/8" | 3" | Galvanized | 1 7/8" | 1 3/8" | 1 5/8" | 3/8" | Grade 2 | 20 | €41.64 | |
 |
2838334 | 3/8" | 3 3/4" | Galvanized | 2 5/8" | 2 1/8" | 1 5/8" | 3/8" | Grade 2 | 20 | €46.57 | |
 |
2838500 | 3/8" | 5" | Galvanized | 4" | 3 3/8" | - | - | - | 20 | €56.34 |
