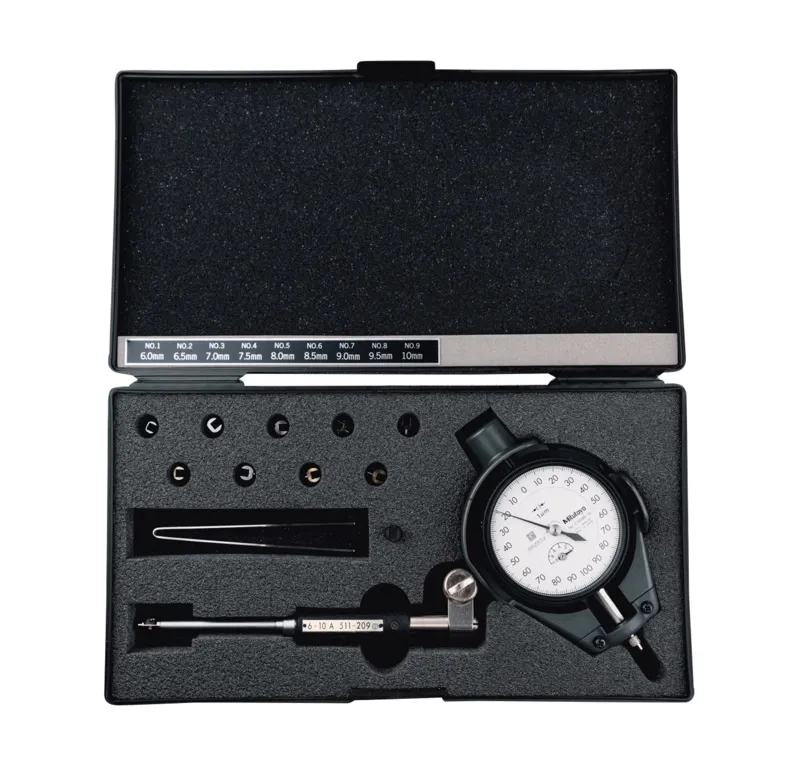

MITUTOYO 511-212-20 Bore Gauge, 0.24-0.4 Inch, 0.0001 Inch
Get it by Thursday, May 21
€583.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bore Gauge |
| Accuracy | 5 µm |
| Digital/analog | Analog |
| Graduation: | 0.0001" |
| Inch-metric | Inch |
| Measuring Depth | 2" |
| No. Dial Indicator | 2923AB-10 |
| Number Of Anvils | 9 |
| Product Datasheet | mitutoyo-511-212-20.pdf |
| Range | 0.24" to 0.4" |
| Repeatability | 2 µm |
| Stroke Of Contact Point | 0.5 mm |
Shipping Info:
| Ship weight (kg) | 0.26 |
Documentation:
Product Variants
| Product | Model | Accuracy | Range | Repeatability | Number Of Anvils | Operation Type | Dimension Type | Maximum Measurement | Min. Measurement | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
511-521 | 0.003 mm | 1.8" to 4" | 0,002 mm | 12 | - | - | - | - | €1,343.79 | |
 |
511-753-20 | -0.0001" to +0.0001" | 0" to 0.05" | - | 11 | Mechanical | Inch | 6" | 2" | €486.67 | |
 |
511-771-20 | 2 µm | 18 mm to 35 mm | 0.5 µm | 9 | - | - | - | - | €383.00 | |
 |
511-712-20 | 2 µm | 35 mm to 60 mm | 0.5 µm | 6 | - | - | - | - | €311.00 | |
 |
511-766-20 | 2 µm | 18 mm to 35 mm | 0.5 µm | 9 | - | - | - | - | €310.00 | |
 |
511-426-20 | 4 µm | 35 mm to 60 mm | 1 µm | - | - | - | - | - | €557.00 | |
 |
511-823-20 | 2 µm | 60 mm to 100 mm | 0,5 µm | - | - | - | - | - | €567.00 |
