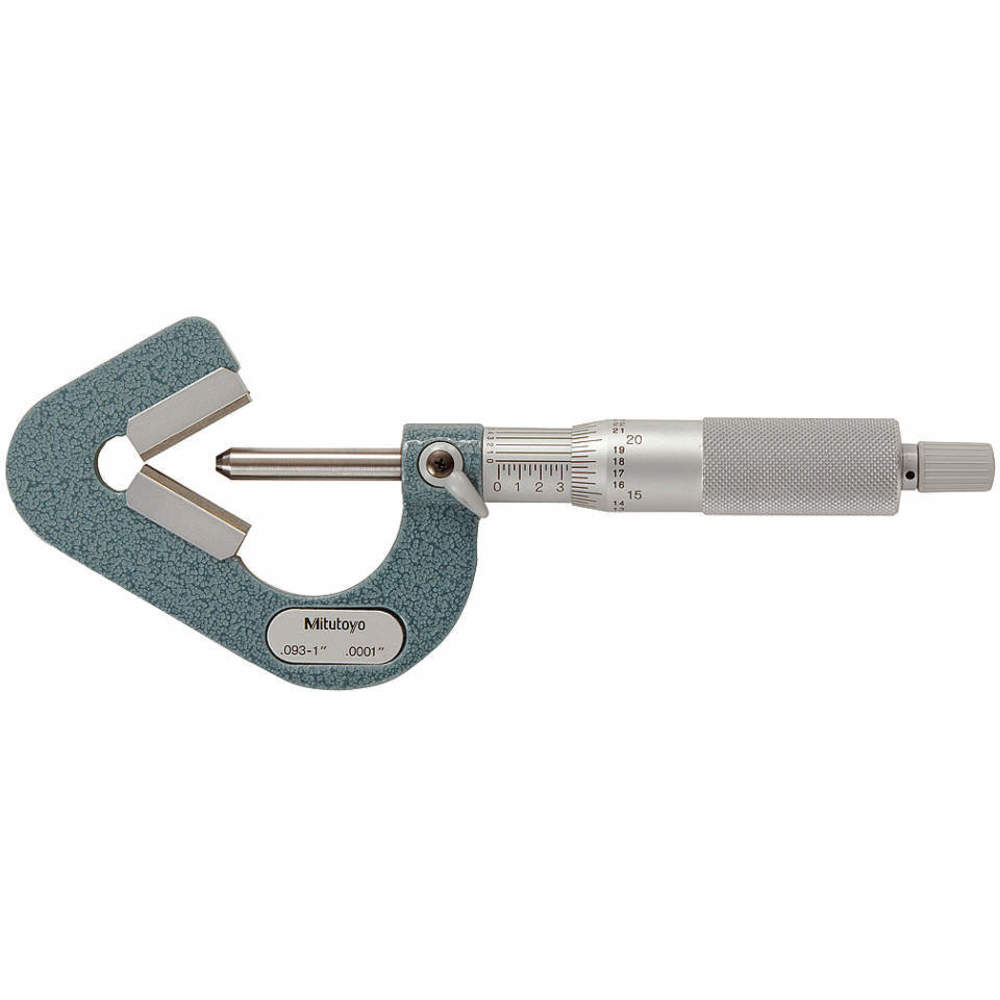

MITUTOYO 114-202 V-anvil Micrometer 0.09-1 Inch 0.0001
Item: AD6XMZModel: 114-202Cross Ref: 4CGE1
7 In Stock
Ships within 2 days via
10.00% off
€703.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Anvil Micrometer |
| Accuracy | -0.0002" to +0.0002" |
| Anvil | Carbide Tipped, V-Shaped |
| Anvil Material | Carbide |
| Anvil Material | Carbide Tipped |
| Anvil Shape | V Shaped |
| Anvil Size | 0.315" |
| Case Included | Yes |
| Case Type | Plastic |
| Certification | Certificate Of Inspection |
| Dimension Type | Inch |
| Included Certification | Certificate Of Inspection |
| Includes | Yes |
| Lock Nut Type | Lever |
| Long Form Calibration Certificate | No |
| Max. Measurement | 1" |
| Minimum Measurement - Inch | 0.09" |
| Operation Type | Mechanical |
| Product Datasheet | mitutoyo-114-202.pdf |
| Range | 0.09" to 1" |
| Resolution | 0.00005" |
| Rotating Spindle | Yes |
| Spc Output | No |
| Spindle | Carbide Tipped |
| Spindle Diameter | 18 mm |
| Spindle Material | Carbide Tipped |
| Spindle Material | Carbide |
| Spindle Size | 0.059" |
| Spindle Size | 1/4" |
| Thimble Type | Ratchet |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 3.56 |
| Ship length (cm) | 20.07 |
| Ship width (cm) | 10.67 |
| HS code | 9017304000 |
| Country of Origin | JP |
Product Details:
- Rotating Spindle (Yes/No) (Yes)
Documentation:
Product Variants
| Product | Model | Range | Anvil | Operation Type | Dimension Type | Accuracy | Resolution | Long Form Calibration Certificate | Spc Output | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

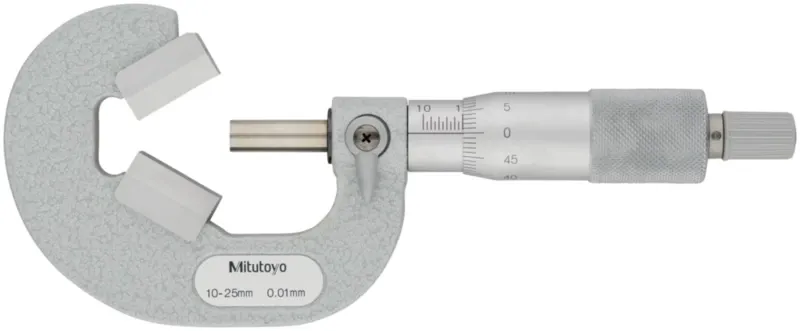

114-162 | 10 mm to 25 mm | Without Groove | - | - | - | - | - | - | €468.00 | |
 |

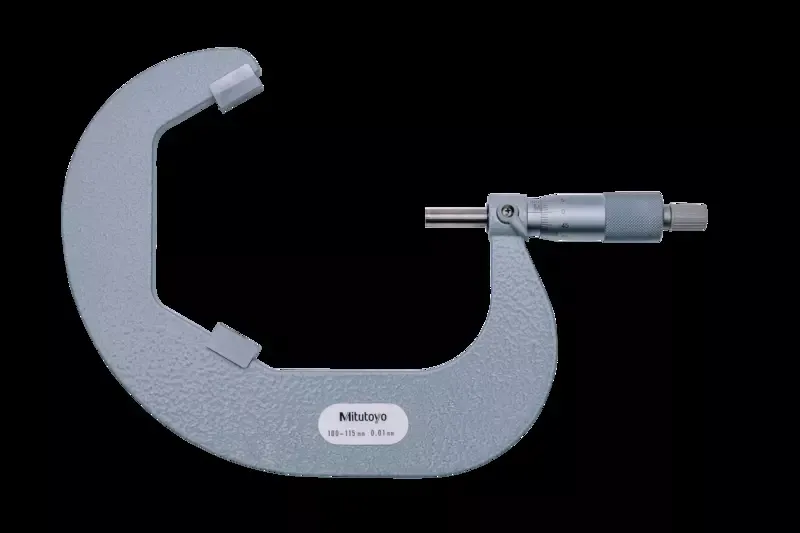

114-108 | 100 mm to 115 mm | Without Groove | - | - | - | - | - | - | €639.00 | |
 |

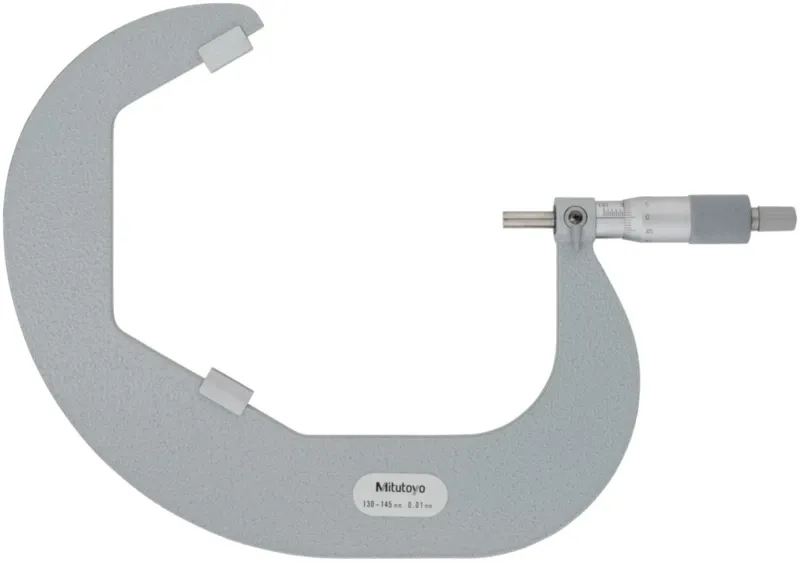

114-110 | 130 mm to 145 mm | Without Groove | - | - | - | - | - | - | €813.00 | |
 |

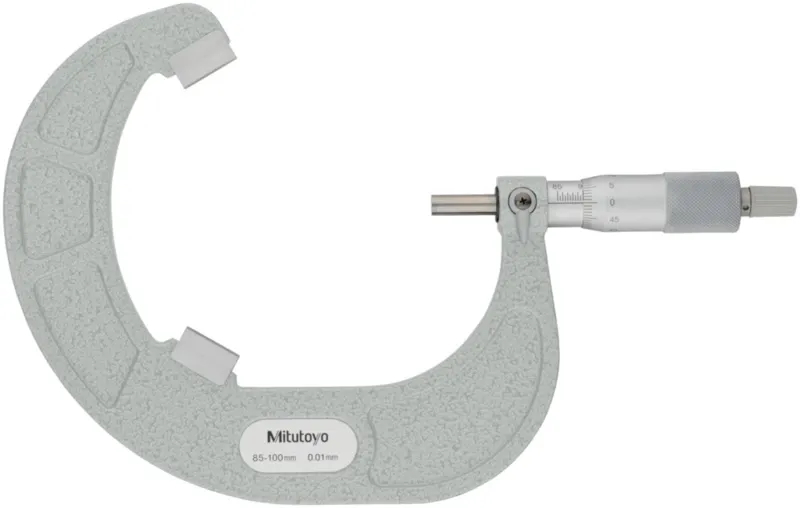

114-107 | 85 mm to 100 mm | Without Groove | - | - | - | - | - | - | €738.00 | |
 |

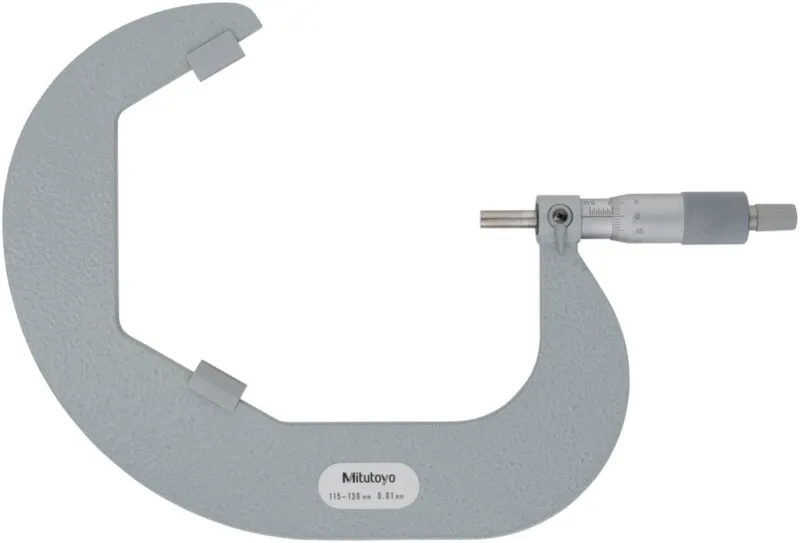

114-109 | 115 mm to 130 mm | Without Groove | - | - | - | - | - | - | €727.00 | |
 |

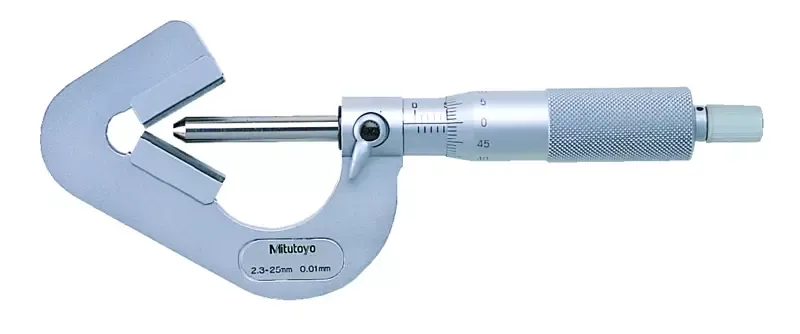

114-204 | 2.3 mm to 25 mm | Without Groove | - | - | - | - | - | - | €556.00 |
