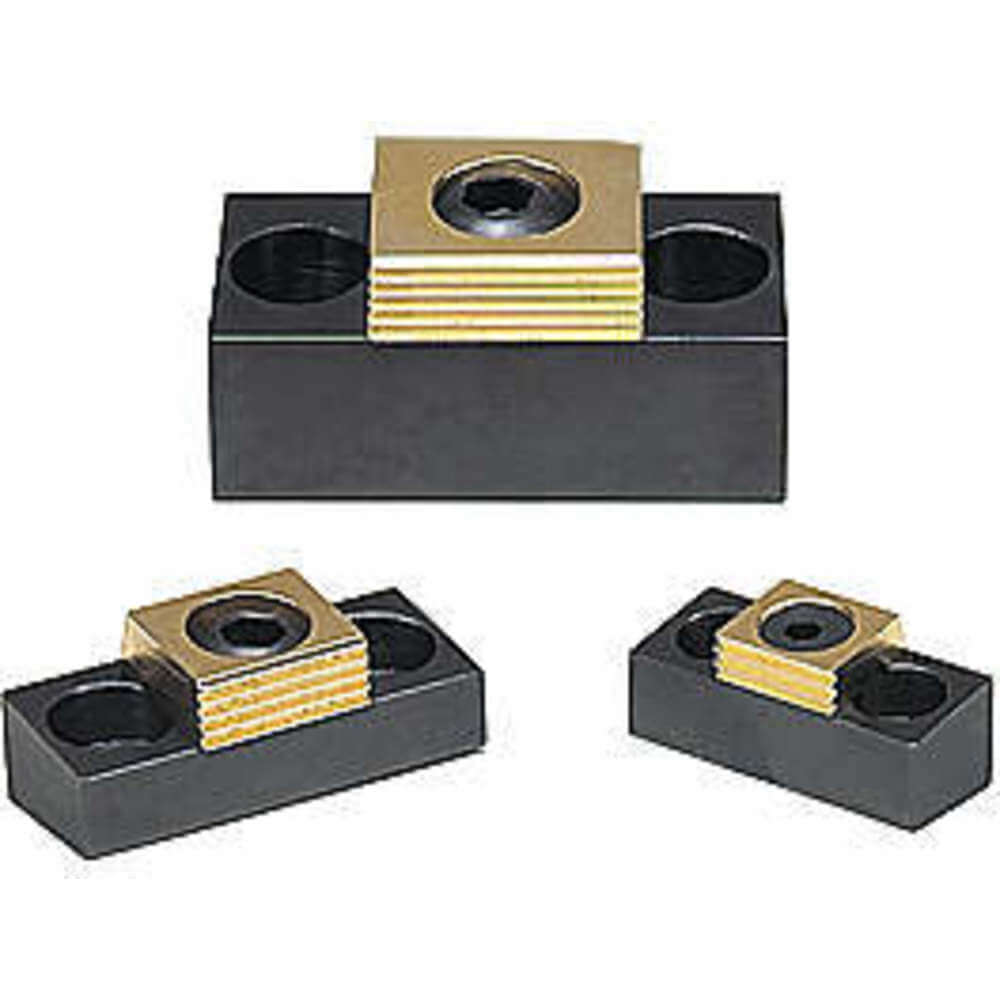

MITEE-BITE PRODUCTS INC 24110 Fixture Clamp Compact Toe 5/8-11 1 Inch
Item: AH4CQKModel: 24110Cross Ref: 34CW89
7 In Stock
Ships within 2 days via
10.00% off
€170.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fixture Clamp |
| Bolt Thread Length | 1 1/4" |
| Bolt Thread Size | 1/2"-13 |
| Clamp Body Material | Steel |
| Clamp Face Material | Steel |
| Clamp Face Type | Smooth, Serrated |
| Clamp Travel From Centerline | 0.1" |
| Clamp Type | Compact Toe Clamp |
| Clamping Length From Workpiece | 0.13" |
| Force | 6000 lbs. |
| Head Height | 1/2" |
| Head Length | 1 1/2" |
| Head Width | 1 1/2" |
| Includes | Mounting Screws |
| Material | Steel |
| Max Clamping Force | 26680N |
| Measurement System | Inch |
| Overall Depth | 1 1/2" |
| Overall Height | 1.7" |
| Overall Length | 2.95" |
| Overall Width | 1 1/2" |
| Thread Length | 1" |
| Thread Size | 5/8"-11 |
Shipping Info:
| Ship weight (kg) | 0.75 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
Product Details:
- Clamp Style : Compact Toe
Product Variants
| Model | Force | Overall Height | Material | Overall Width | Thread Length | Diameter | Overall Depth | Drive Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10202 | 205 lbs. | 0.46" | Brass, Steel | 0.312" | 3/8" | 0.172" | - | 5/64" | 10 | €139.75 | |
| 10207 | 350 lbs. | 1/2" | Brass, Steel | 1/2" | 3/8" | 3/16" | - | 3/32" | 10 | €149.98 | |
| 10204 | 800 lbs. | 0.66" | Brass, Steel | 5/8" | 1/2" | 1/4" | - | 1/8" | 10 | €148.96 | |
| 10205 | 800 lbs. | 16/25" | Brass, Steel | - | - | - | - | - | 12 | €179.75 | |
| 10201 | 800 lbs. | 16/25" | Brass, Steel | - | 1/2" | - | - | 3/16" | 12 | €182.09 | |
| 10206 | 2000 lbs. | 0.96" | Brass, Steel | 0.812" | 3/4" | 3/8" | - | 3/16" | 10 | €158.01 | |
| 10208 | 4000 lbs. | 1.275" | Brass, Steel | 1" | 1" | 1/2" | - | 5/16" | 8 | €182.00 |
