MILWAUKEE 2216-20 Digital Multimeter 600v 10a 40 Mohms
Item: AE9FYTModel: 2216-20Cross Ref: 6JHY3
7 In Stock
Ships within 2 days via
10.00% off
€201.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Digital Multimeter |
| Ac Response | True RMS |
| Ac Response Calculation | Trms |
| Audible Continuity | Yes |
| Auto Power Off | Yes |
| Auto Ranging | Yes |
| Bar Graph Included | Yes |
| Basic Ac Current Accuracy | -1.5% to +1.5% |
| Basic Ac Voltage Accuracy | -2% to +2% |
| Basic Dc Accuracy | 0.003 |
| Basic Dc Current Accuracy | -0.01% to +0.01% |
| Basic Dc Voltage Accuracy | +/-0.05% + 2 Digits |
| Batteries Included | Yes |
| Battery Access | Yes |
| Battery Chemistry | Alkaline |
| Battery Size | AA |
| Battery Type | AAA Alkaline Battery |
| Bluetooth Compatible | No |
| Calibration Certificate | No |
| Capacitance | 0.1 µF to 1000 µF |
| Capacitance Measurement Accuracy | +/-1.9% |
| Capacitance Range | 0.1 to 1000uF |
| Counts | 9999 |
| Data Hold | Yes |
| Data Logging | Yes |
| Data Storage | Yes |
| Depth | 6.5" |
| Display | Backlit Black On White LCD |
| Display Type | LCD |
| Dustproof | Yes |
| Frequency Counter Range | 10 Hz to 50 kHz |
| Frequency Measurement Accuracy | +/-0.1% |
| Fuse Access | Yes |
| Includes | Electrical Test Lead Set, (2) Aa Batteries |
| Instrument Counts | 9999 |
| Instrument Safety Rating | CAT III 600V |
| Intrinsically Safe | No |
| Ip Rating | IP64 |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Ac Amps | 10 |
| Max. Ac Amps | 10A |
| Max. Ac Voltage | 600V AC |
| Max. Ac Volts | 600 |
| Max. Dc Amps | 10 |
| Max. Dc Amps | 10A |
| Max. Dc Volts | 600 |
| Max. Dc Volts | 600V |
| Max. Ohms | 40 megaohm |
| Maximum Ac Voltage Measurement | 600V |
| Maximum Capacitance Measurement | 1000 µF |
| Maximum Dc Current Measurement | 10A |
| Maximum Dc Voltage Measurement | 600V |
| Maximum Frequency Measurement | 50 kHz |
| Maximum Operating Temperature | 122°F |
| Maximum Resistance Measurement | 40 M ohms |
| Maximum Storage Temperature | 140°F |
| Maximum Temperature Measurement | 752°F |
| Min-max-avg Button Included | Yes |
| Minimum Capacitance Measurement | 10 pF |
| Minimum Frequency Measurement | 2 Hz |
| Minimum Operating Temperature | 14°F |
| Minimum Resistance Measurement | 600 ohms |
| Minimum Storage Temperature | -40°F |
| Minimum Temperature Measurement | -40°F |
| Minimum/maximum Memory | Yes |
| Multimeter Style | Full Size |
| Parameters Measured | AC Voltage, DC Voltage, AC Current, DC Current, Capacitance, Frequency, Resistance |
| Peak Hold | Yes |
| Removable Screen | No |
| Resistance Measurement Accuracy | -2% to +2% |
| Standards | C1, Ce, Culus, Emc En61326-1, En61010-031 (Probes), En61010-1, Iec/En61010-1 2Nd Edition For Measurement Category Iii, 600 V, Pollution Degree 2, Ul 61010-031 (Probes), Ul 61010-1 |
| Thermal Imaging | No |
| Waterproof | No |
Shipping Info:
| Ship weight (kg) | 0.61 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 15.75 |
| HS code | 9030310000 |
| Country of Origin | CN |
Product Details:
Milwaukee 2216-20 digital multimeter is used in commercial, industrial and professional electric applications for measuring electrical quantities like AC / DC voltage & current, capacitance, frequency and resistance.
Features:
- Milwaukee 2216-20 digital multimeter has rugged over-moulding for ergonomics grip and durability.
- It provides true RMS measurement for optimal precision.
- This Milwaukee multimeter measures currents up to 10A and voltages up to 600V for both AC & DC.
- It comes with an LCD screen and backlight display for easy measurement learning.
- This Milwaukee digital multimeter can measure resistances ranging from 600 ohms to 40 Mohm and capacitances up to 1000uF.
- It has a hold & digital bar graph readout function for ease of measurement during operation.
- This dustproof multimeter can measure frequencies from 10 Hz to 50 KHz.
Standards and Approvals:
- IP64
- CE
- cULus
Frequently Asked Questions:
Q. Can this digital multimeter measure temperatures?
A. Yes, it can measure temperatures ranging from -40 to 752 degrees F.
Q. How often should Milwaukee 2216-20 digital multimeter be calibrated?
A. The recommended calibration service is once per year.
Q. Is Milwaukee 2216-20 digital multimeter electrically safe?
A. It is CATIII 600V rated for advanced safety in mandating electrical conditions.
Q. What accessories come with this digital multimeter?
A.
- Electrical test lead set
- AA batteries
- Instruction manual
- Magnetic meter holder attachment
Product Variants
| Product | Model | Calibration Certificate | Instrument Counts | Data Logging | Basic Dc Voltage Accuracy | Dustproof | Minimum Frequency Measurement | Basic Dc Current Accuracy | Instrument Safety Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

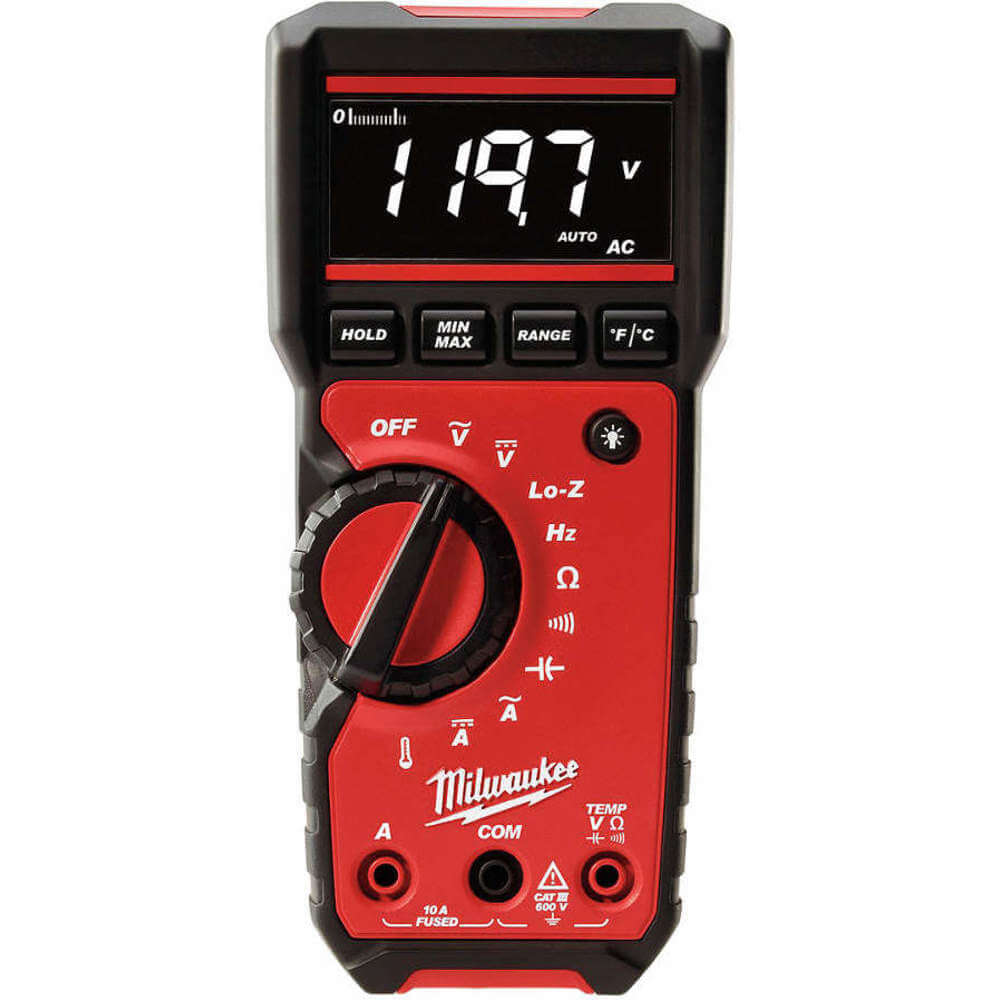

2217-20NST | NIST | 6000 | No | +/-0.50% + 2 Digits | No | 10 Hz | -1.5% to +1.5% | CAT III 600V | €458.36 |
