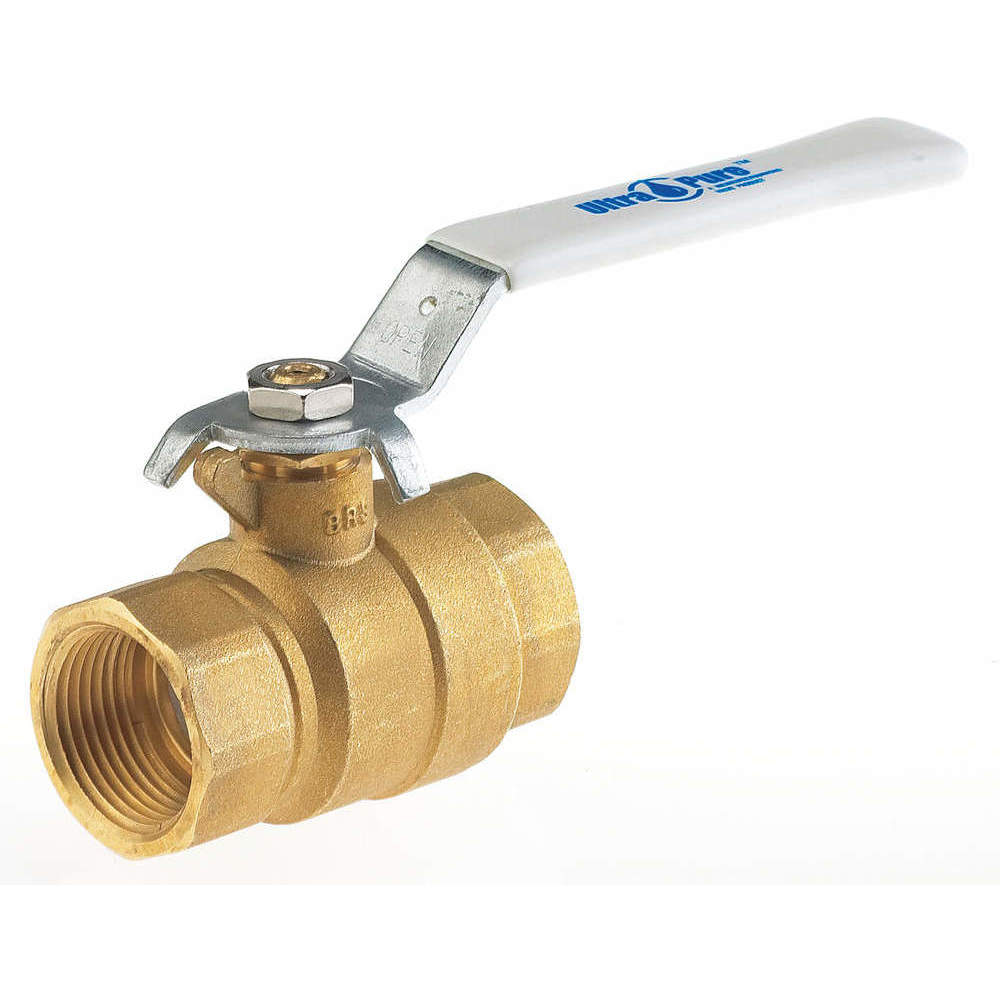

MILWAUKEE VALVE UPBA475B 1 Manual Two-Way Ball Valve, 1 Inch, Brass, Straight, FNPT x FNPT, Full Port Ball Port
Item: AE3PUGModel: UPBA475B 1Cross Ref: 5EMT0
7 In Stock
Ships within 2 days via
10.00% off
€86.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Finish | Brass , Chrome Plated |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Brass |
| Body Style | Inline |
| Cleaned And Bagged | Valve Cleaned And Bagged |
| Coefficient Of Volume (cv) | 72 |
| Connection Gender - Side 1 | Female |
| Connection Gender Side 2 | Female |
| Connection Size | 1" x 1" |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| For Media | Water |
| Handle | Locking Lever |
| Handle - Locking | Locking |
| Handle Color | White |
| Handle Height | 2.1" |
| Handle Length | 4.45" |
| Handle Material | Zinc Plated Steel |
| Handle Type | Lever |
| Included Mounting | Not Applicable |
| Max. Pressure | 600 psi WOG |
| Max. Pressure (cwp) | 600 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Max. Steam Pressure | 150 psi WSP |
| Maximum Pressure - Steam | Not Applicable |
| Media Temp. Range | 0°F to 180°F |
| Meets Ul Flammable Gas And Liquid Standards | UL 125, UL 842, UL 1477 |
| Nominal Valve Size | 1" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Number Of Pieces | 2 |
| Overall Length | 3.06" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 1" |
| Port | Full |
| Pressure For Water | 600 psi WOG |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Temp. Range | Up To 180°F |
| Vacuum Service Rating | -29.92 in. hg |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | UPBA475B Series |
| Vented Ball Valve | Not Applicable |
Shipping Info:
| Ship weight (kg) | 0.51 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 17.53 |
| Ship width (cm) | 16.51 |
| HS code | 8481801085 |
| Country of Origin | CN |
Product Variants
| Product | Model | Overall Length | Pipe Size | Ball Finish | Connection Size | Body Material | Connection Type | Max. Pressure | Max. Steam Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPBA475B 2 | 4.38" | 2" | Chrome Plated | 2" x 2" | Brass | FNPT x FNPT | 600 psi WOG | 150 psi WSP | €306.43 |
