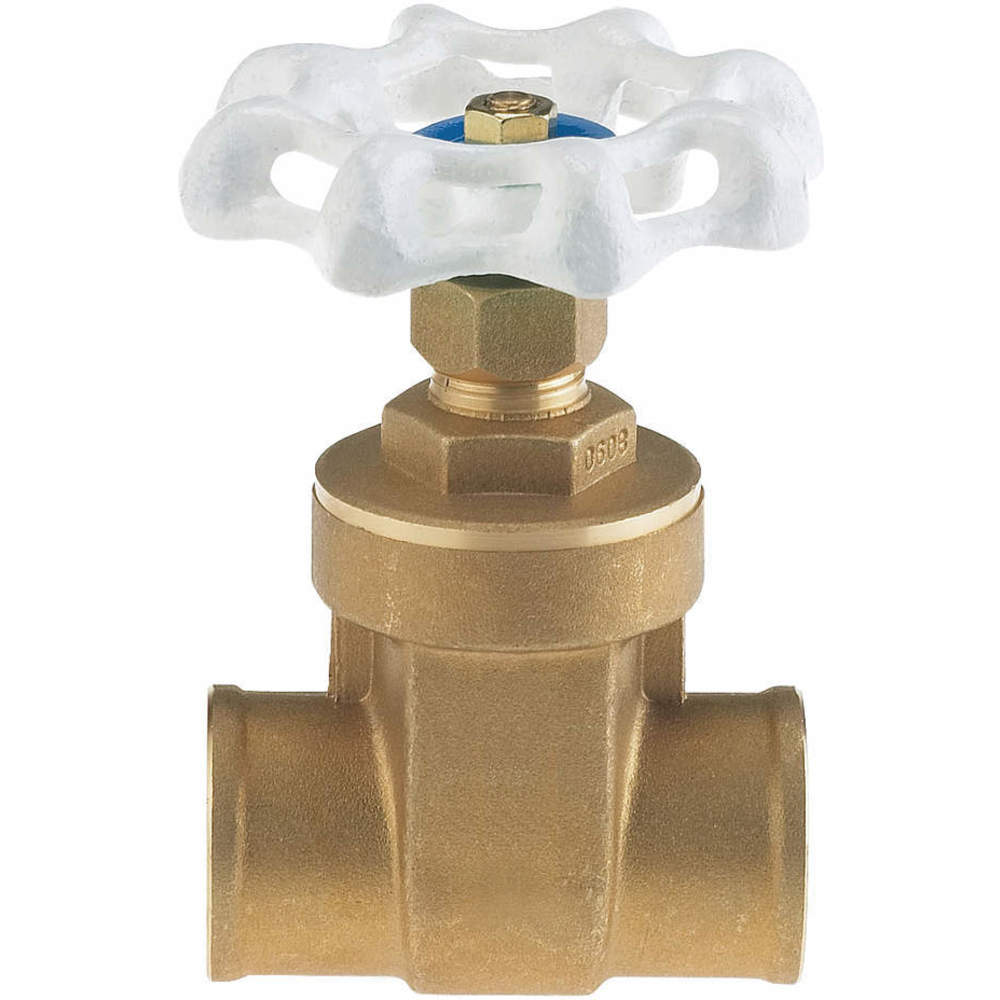

MILWAUKEE VALVE UP668 2 Gate Valve, 2 Inch, Brass, Non-Rising, Sweat x Sweat, 200 psi CWP, Wheel, Solid Wedge
Item: AC7ZMFModel: UP668 2 Cross Ref: 39A273
7 In Stock
Ships within 2 days via
10.00% off
€351.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gate Valve |
| Ansi Flange Class | Not Applicable |
| Body Material | Brass |
| Bonnet Material | Brass |
| Bonnet Style | Screw In |
| Coefficient Of Volume | 230 |
| Connection Gender - Side 1 | Not Applicable |
| Connection Gender Side 2 | Not Applicable |
| Connection Size - Side 1 | 2" |
| Connection Size - Side 2 | 2" |
| Connection Type | Sweat x Sweat |
| Connection Type - Side 1 | Sweat |
| Connection Type - Side 2 | Sweat |
| For Media | Water |
| Handle Dia. | 3.19" |
| Handle Height | 6.031" |
| Handle Length | Not Applicable |
| Handle Material | Cast Iron |
| Handle Type | Wheel |
| Inlet To Outlet Length | 3.969" |
| Max. Fluid Temp. | 200°F |
| Max. Pressure (cwp) | 200 psi |
| Max. Water Pressure | 200 psi |
| Maximum Pressure - Steam | Not Applicable |
| Media Temp. Range | -40°F to +200°F |
| Nominal Valve Size | 2" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Operating Temperature - Maximum | 200°F |
| Operating Temperature - Minimum | -40°F |
| Overall Length | 3.97" |
| Pipe Size | 2" |
| Seal Material | Brass |
| Seat Material | Brass |
| Stem Material | Brass |
| Stem Type | Non Rising |
| Top Of Handle To Inlet Center | 6.031" |
| Wedge Material | Forged Brass |
| Wedge Style | Solid |
Shipping Info:
| Ship weight (kg) | 1.4 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 18.29 |
| Ship width (cm) | 10.16 |
| HS code | 8481801060 |
| Country of Origin | CN |
Product Variants
| Model | Pipe Size | Top Of Handle To Inlet Center | Inlet To Outlet Length | Coefficient Of Volume | Body Material | Seal Material | Seat Material | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| UP668 3/8 | 3/8" | 2.844" | 1 5/8" | - | Brass | Brass | Brass | Sweat x Sweat | €113.92 | |
| UP668 1/2 | 1/2" | 2.906" | 1.781" | - | Brass | Brass | Brass | Sweat x Sweat | €124.97 | |
| UP668 3/4 | 3/4" | 3.312" | 2.312" | 32 | Brass | Brass | Brass | Sweat x Sweat | €148.97 | |
| UP668 1 | 1" | 3.938" | 2.844" | - | Brass | Brass | Brass | Sweat x Sweat | €198.69 | |
| UP668 1-1/4 | 1 1/4" | 4.344" | 3" | 97 | Brass | Brass | Brass | Sweat x Sweat | €259.75 | |
| UP668 1-1/2 | 1 1/2" | 4.938" | 3.219" | 135 | Brass | Brass | Brass | Sweat x Sweat | €295.29 |
