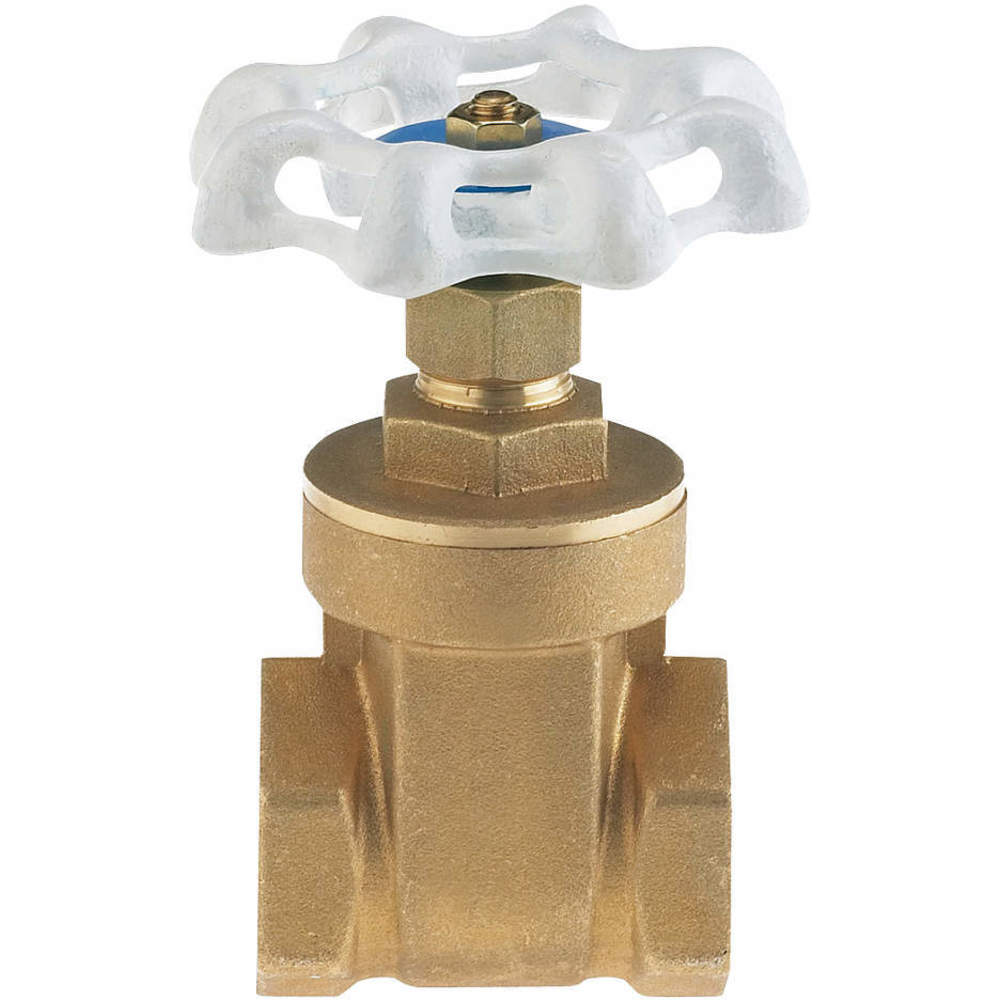

MILWAUKEE VALVE UP667-3/8" Gate Valve, 3/8 Inch, Brass, Non-Rising, FNPT x FNPT, 200 psi CWP, Wheel, Solid Wedge
Item: AC7ZLRModel: UP667-3/8"Cross Ref: 39A260
7 In Stock
Ships within 2 days via
€117.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gate Valve |
| Ansi Flange Class | Not Applicable |
| Body Material | Brass |
| Bonnet Material | Brass |
| Bonnet Style | Screw In |
| Coefficient Of Volume(cv) | 10.7 |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 3/8" |
| Connection Size-side 2 | 3/8" |
| Connection Type | FNPT x FNPT |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| For Media | Water |
| Handle Dia. | 2.13" |
| Handle Height | 2.844" |
| Handle Length | Not Applicable |
| Handle Material | Cast Iron |
| Handle Type | Wheel |
| Inlet To Outlet Length | 1 5/8" |
| Max. Fluid Temp. | 200°F |
| Max. Operating Temp. | 200°F |
| Max. Pressure (cwp) | 200 psi |
| Max. Pressure-steam | Not Applicable |
| Max. Water Pressure | 200 psi |
| Media Temp. | -40°F to +200°F |
| Min. Operating Temp. | -40°F |
| Nominal Valve Size | 3/8" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Overall Length | 1.13" |
| Pipe Size | 3/8" |
| Seal Material | Brass |
| Seat Material | Brass |
| Stem Material | Brass |
| Stem Type | Non Rising |
| Top Of Handle To Inlet Center | 2.844" |
| Wedge Material | Brass |
| Wedge Style | Solid |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 5.59 |
| HS code | 8481801060 |
| Country of Origin | CN |
Product Variants
| Model | Top Of Handle To Inlet Center | Inlet To Outlet Length | Connection Size-side 1 | Connection Size-side 2 | Handle Height | Nominal Valve Size | Handle Dia. | Coefficient Of Volume | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| UP667-1/4" | 2.844" | 1 5/8" | 1/4" | 1/4" | 2.844" | 1/4" | 2.13" | - | €119.06 | |
| UP667-1/2" | 2.906" | 1.688" | 1/2" | 1/2" | 2.906" | 1/2" | 2.13" | - | €140.12 | |
| UP667-3/4" | 3.312" | 1.844" | 3/4" | 3/4" | 3 1/8" | 3/4" | 2.13" | 32 | €157.27 | |
| UP667 1 | 3.938" | 2.187" | 1" | 1" | 3.938" | 1" | 2.41" | - | €182.66 | |
| UP667 1-1/4 | 4.344" | 2.422" | 1 1/4" | 1 1/4" | 4.344" | 1 1/4" | 2.94" | 97 | €270.18 | |
| UP667 1-1/2 | 4.938" | 2.437" | 1 1/2" | 1 1/2" | 4.938" | 1 1/2" | 2.94" | 135 | €286.77 | |
| UP667 2 | 6.031" | 2.844" | 2" | 2" | 6.031" | 2" | 3.19" | 230 | €395.98 |
