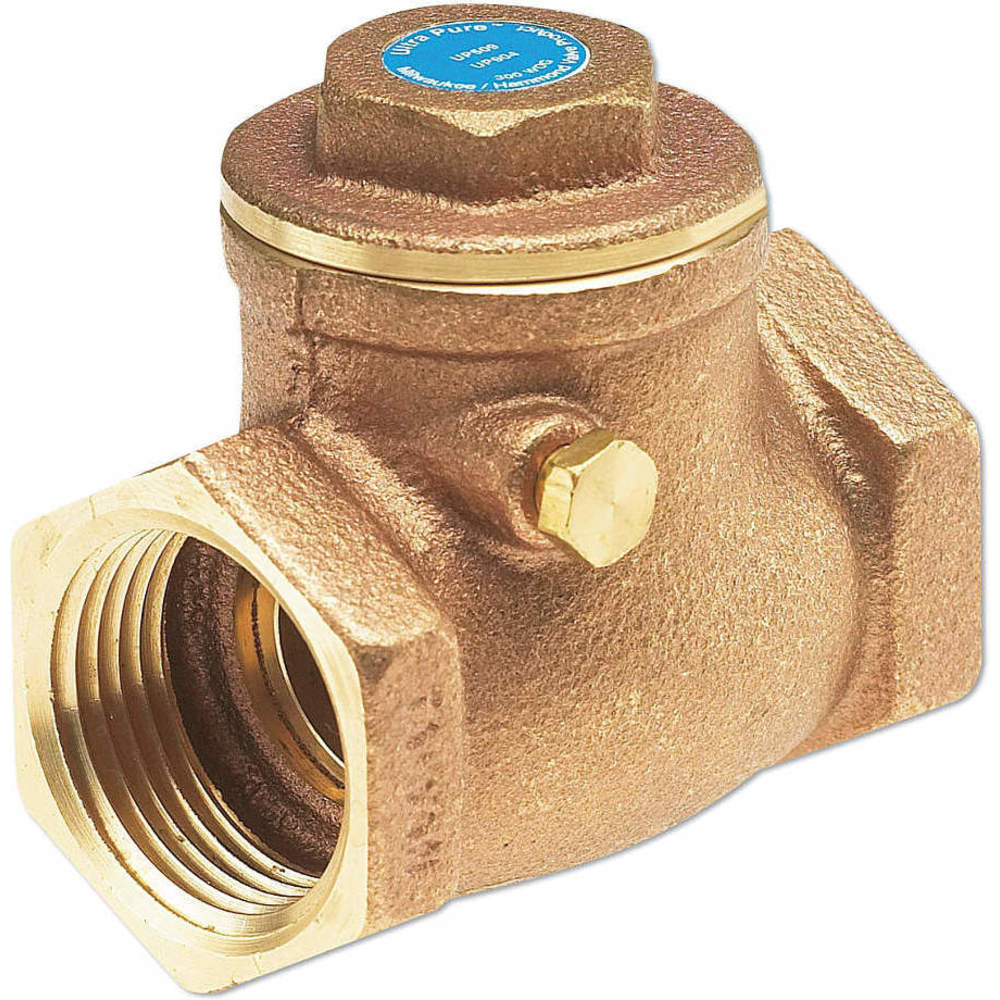

MILWAUKEE VALVE UP509 2 Low Lead Swing Check Valve, Swing, Inline Valve Body, 2 Inch Pipe Size, FNPT x FNPT
Item: AE3PWGModel: UP509 2Cross Ref: 5EMX7
7 In Stock
Ships within 2 days via
10.00% off
€454.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Low Lead Swing Check Valve |
| 3-a Compliance | Not Rated |
| Application - Valves | General Purpose |
| Body Material | Bronze |
| Cap To Inlet Center | 2.812" |
| Cap To Inlet Center | 2-13/16" |
| Check Mechanism | Swing |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 2" |
| Connection Size - Side 2 | 2" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Cracking Pressure | 0.5 psi |
| Disc Material | Bronze |
| Flow Coefficient (cv) | 131 |
| Flow Design | Single |
| Flow Rate | 131 GPM |
| For Media | Gas, Oil, Water |
| Full Flow - Valves | Yes |
| Height - Cap To Inlet Center | 2 13/16" |
| Includes Counterweight | No Counterweight |
| Length | 4 3/4" |
| Material | Bronze |
| Max. Pressure (cwp) | 300 psi |
| Max. Pressure (steam) | Not Rated |
| Max. Steam Pressure | 150 psi |
| Max. Steam Pressure - Valves | Not Rated |
| Max. Temp. | 200°F |
| Media Temp. Range | -20°F to +200°F |
| Mounting Orientation | Horizontal |
| Mounting Orientation - Check Valves | Horizontal |
| Mounting Position | Under Disc |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Operating Temperature - Maximum | 200°F |
| Operating Temperature - Minimum | -20°F |
| Overall Height | 2.812" |
| Overall Length | 4.75" |
| Pipe Or Tube Size | 2" |
| Pipe Or Tube Size - Check Valves | 2" |
| Seal Material | Bronze |
| Seal Material - Check Valves | Bronze |
| Seat Material - Check Valves | Bronze |
| Silent Check | Standard |
| Size | 2" |
| Standards | Nsf/Ansi 372 |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | UP509 Series |
| Width | 2" |
Shipping Info:
| Ship weight (kg) | 1.89 |
| Ship height (cm) | 13.21 |
| Ship length (cm) | 37.85 |
| Ship width (cm) | 26.42 |
| HS code | 8481301090 |
| Country of Origin | US |
Product Variants
| Model | Connection Type | Overall Height | Mounting Position | Cap To Inlet Center | Flow Rate | Disc Material | Body Material | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| UP509 1 | FNPT x FNPT | 2" | Pressure From Under Disc | 2" | 31 GPM | Brass | Bronze | 200°F | €222.82 | |

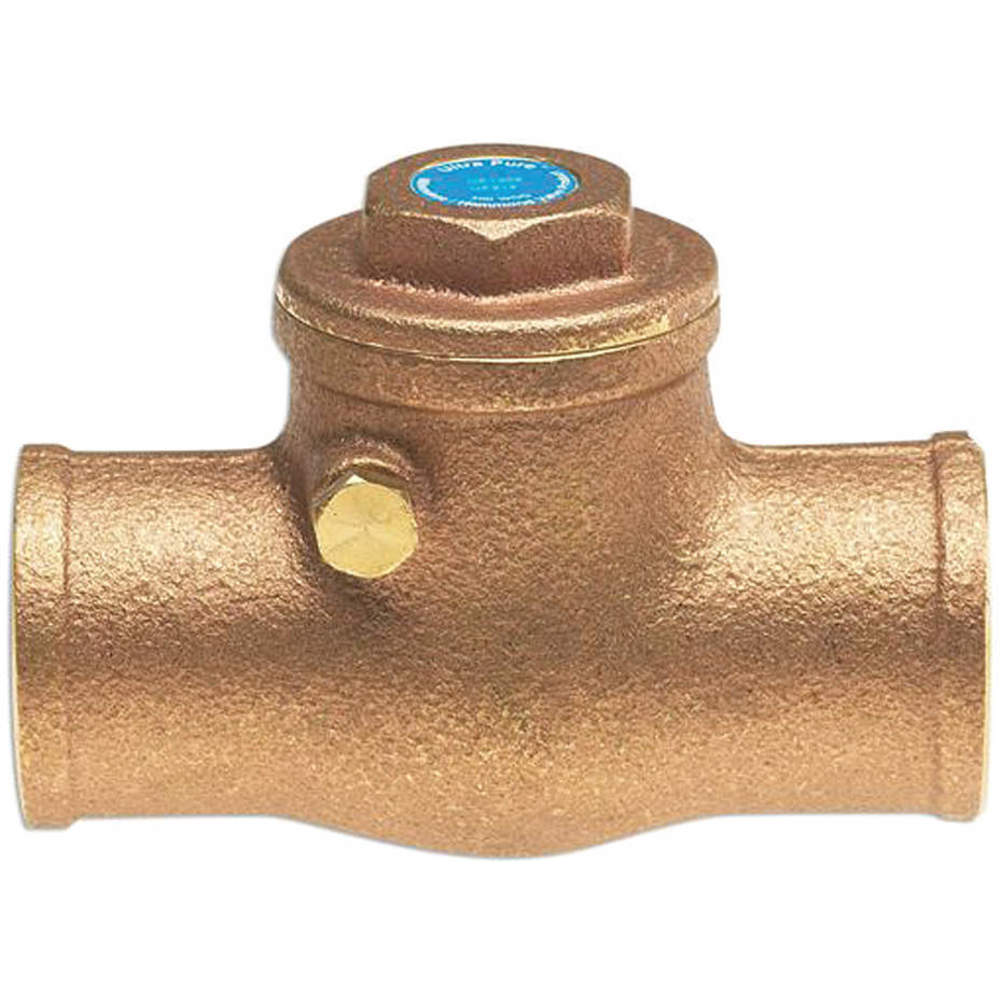

| UP1509 1 | Sweat x Sweat | 1 31/32" | Pressure From Under Disc | 1 31/32" | 31 GPM | Brass | Bronze | 200°F | €289.07 | |
| UP1509 2 | Sweat x Sweat | 2.812" | Under Disc | 2.812" | 131 GPM | Bronze | Bronze | 200°F | €661.43 |
