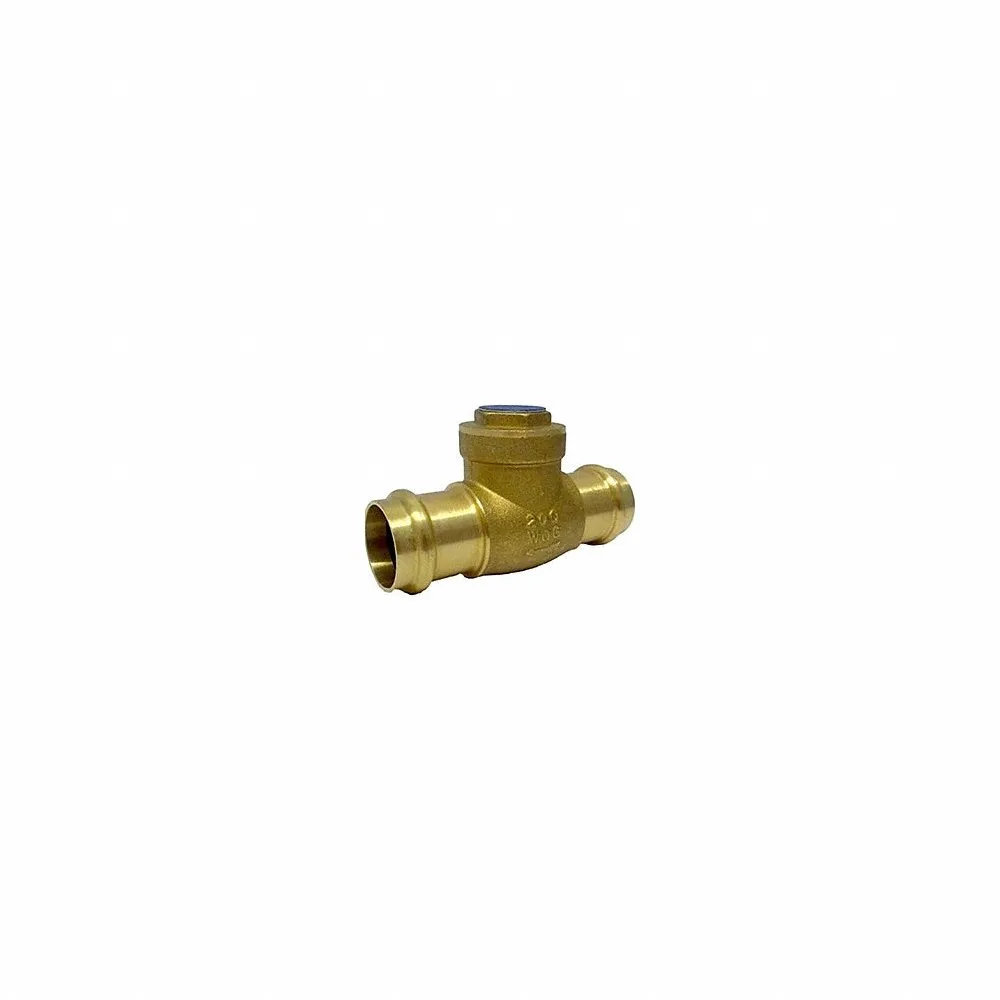

MILWAUKEE VALVE UP0969000034 Swing Check Valve, Swing, Inline Valve Body, 3/4 Inch Pipe Size, Press x Press, Brass
Item: CE2LEFModel: UP0969000034Cross Ref: 804GM0
7 In Stock
Ships within 2 days via
€83.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Swing Check Valve |
| 3-a Certified | Not Rated |
| Body Material | Brass |
| Check Mechanism | Swing |
| Connection Size-side 1 | 3/4" |
| Connection Size-side 2 | 3/4" |
| Connection Type-side 1 | Press |
| Connection Type-side 2 | Press |
| Cracking Pressure | 0.5 psi |
| Disc Material | Brass |
| Flow Coefficient Cv | 18 |
| Flow Rate | 18 GPM |
| For Media | Water |
| Height-cap To Inlet Center | 1 7/16" |
| Included Counterweight | No Counterweight |
| Max. Operating Temp. | 150°F |
| Max. Pressure (cwp) | 200 psi |
| Max. Pressure-steam | Not Rated |
| Media Temp. | -20°F to +150°F |
| Min. Operating Temp. | -20°F |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Overall Length | 3.74" |
| Pipe Size | 3/4" |
| Product Datasheet | milwaukee-valve-969-34.pdf |
| Seal Material | Brass |
| Silent Check | Standard |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | UP969 Series |
Shipping Info:
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 3.63 |
| Ship length (cm) | 9.5 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Connection Size-side 1 | Connection Size-side 2 | Flow Rate | Height-cap To Inlet Center | Flow Coefficient Cv | Hex Size | Cap To Inlet Center | Pipe Or Tube Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| UP0969000012 | 1/2" | 1/2" | 10 GPM | 1 3/8" | 10 | - | - | - | €60.98 | |
| UP0969000100 | 1" | 1" | 54 GPM | 1 3/4" | 54 | 2 3/8" | 1.74" | 1" | €115.77 | |
| UP0969000112 | 1 1/2" | 1 1/2" | 76 GPM | 2 1/4" | 76 | 3 5/16" | - | - | €295.40 | |
| UP0969000114 | 1 1/4" | 1 1/4" | 31 GPM | 2" | 31 | 2 15/16" | 1.99" | - | €225.35 | |
| UP0969000200 | - | - | - | - | - | 3.99" | - | 2" | €451.77 |
