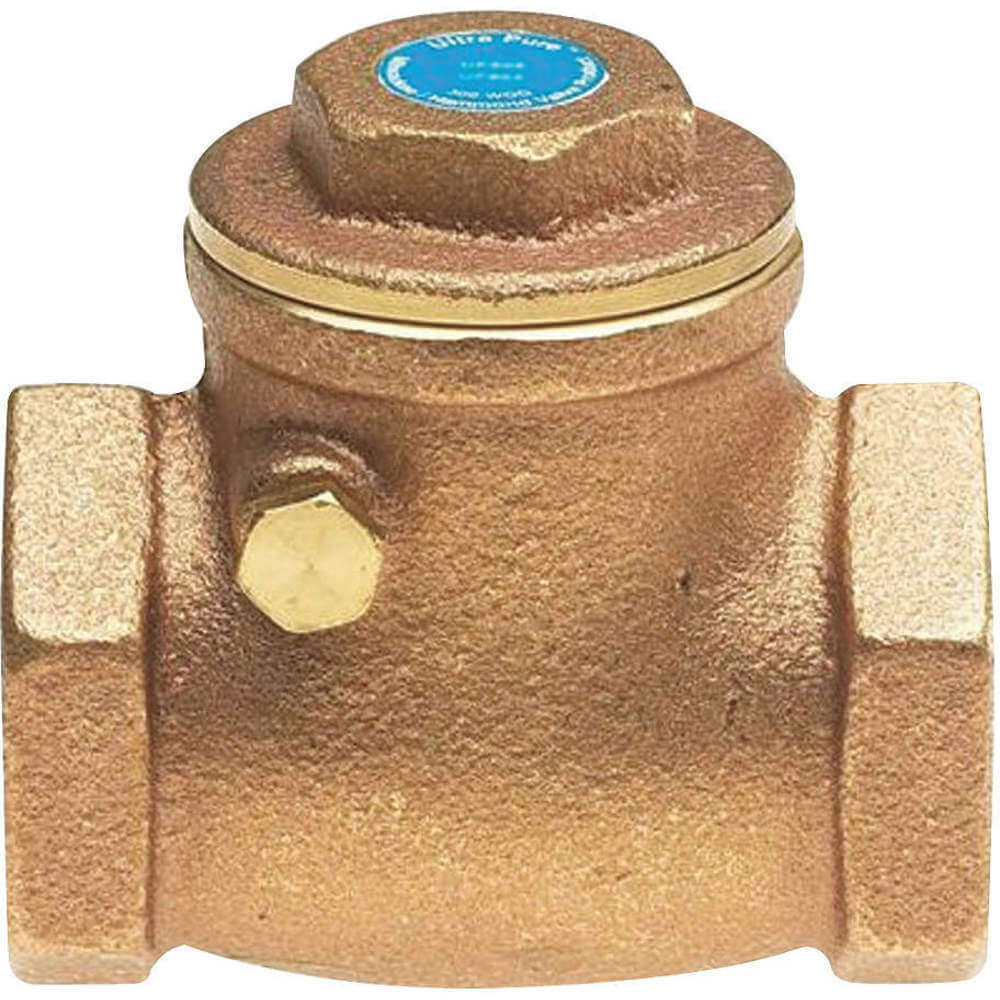

MILWAUKEE VALVE UP0967000034 Swing Check Valve, Swing, Inline Valve Body, 3/4 Inch Pipe Size, FNPT x FNPT, Brass
Item: AA4FJLModel: UP0967000034Cross Ref: 12K647
7 In Stock
Ships within 2 days via
10.00% off
€119.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Swing Check Valve |
| 3-a Compliance | Not Rated |
| Application - Valves | General Purpose |
| Body Material | Brass |
| Cap To Inlet Center | 1 5/8" |
| Cap To Inlet Center | 1-5/8" |
| Check Mechanism | Swing |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 3/4" |
| Connection Size - Side 2 | 3/4" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Cracking Pressure | 0.5 psi |
| Disc Material | Brass |
| Flow Coefficient (cv) | 18 |
| Flow Design | Single |
| Flow Rate | 18 GPM |
| For Media | Gas, Oil, Water |
| Full Flow - Valves | Yes |
| Height - Cap To Inlet Center | 1 1/2" |
| Includes Counterweight | No Counterweight |
| Length | 2.312" |
| Material | Low Lead Brass |
| Max. Pressure (cwp) | 200 psi |
| Max. Pressure (steam) | Not Rated |
| Max. Steam Pressure - Valves | Not Rated |
| Max. Temp. | 151°F |
| Media Temperature Range | -20°F to +150°F |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Mounting Position | Multi Position |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | -20°F |
| Overall Height | 2.297" |
| Overall Length | 2.11" |
| Pipe Or Tube Size | 3/4" |
| Pipe Or Tube Size - Check Valves | 3/4" |
| Product Datasheet | milwaukee-valve-up0967000012.pdf |
| Seal Material | Brass |
| Seal Material - Check Valves | Brass |
| Seat Material | Brass |
| Seat Material - Check Valves | Metal |
| Silent Check | Standard |
| Standards | Nsf/Ansi 372 |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | UP967 Series |
| Width | 1 1/4" |
Shipping Info:
| Ship weight (kg) | 0.24 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 5.84 |
| HS code | 8481301090 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Connection Type | Pipe Size | Max. Temp. | Cracking Pressure | Cap To Inlet Center | Flow Rate | Overall Height | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| UP0967000012 | FNPT x FNPT | 1/2" | 150°F | 0.5 psi | 1.531" | 10 GPM | 2.094" | Brass | €125.32 | |
| UP0967000100 | FNPT x FNPT | - | 152°F | 0.5 psi | 1.781" | 31 GPM | - | Brass | €179.63 | |
| UP0967000114 | FNPT x FNPT | 1 1/4" | 153°F | 0.5 psi | 2" | 54 GPM | 2.906" | Brass | €293.13 | |
| UP0967000112 | FNPT x FNPT | 1 1/2" | 154°F | 0.5 psi | 2 1/4" | 76 GPM | 3.297" | Brass | €333.69 | |
| UP0967000200 | FNPT x FNPT | - | 155°F | 0.1 psi | 2.688" | 131 GPM | 3.844" | Brass | €515.80 | |

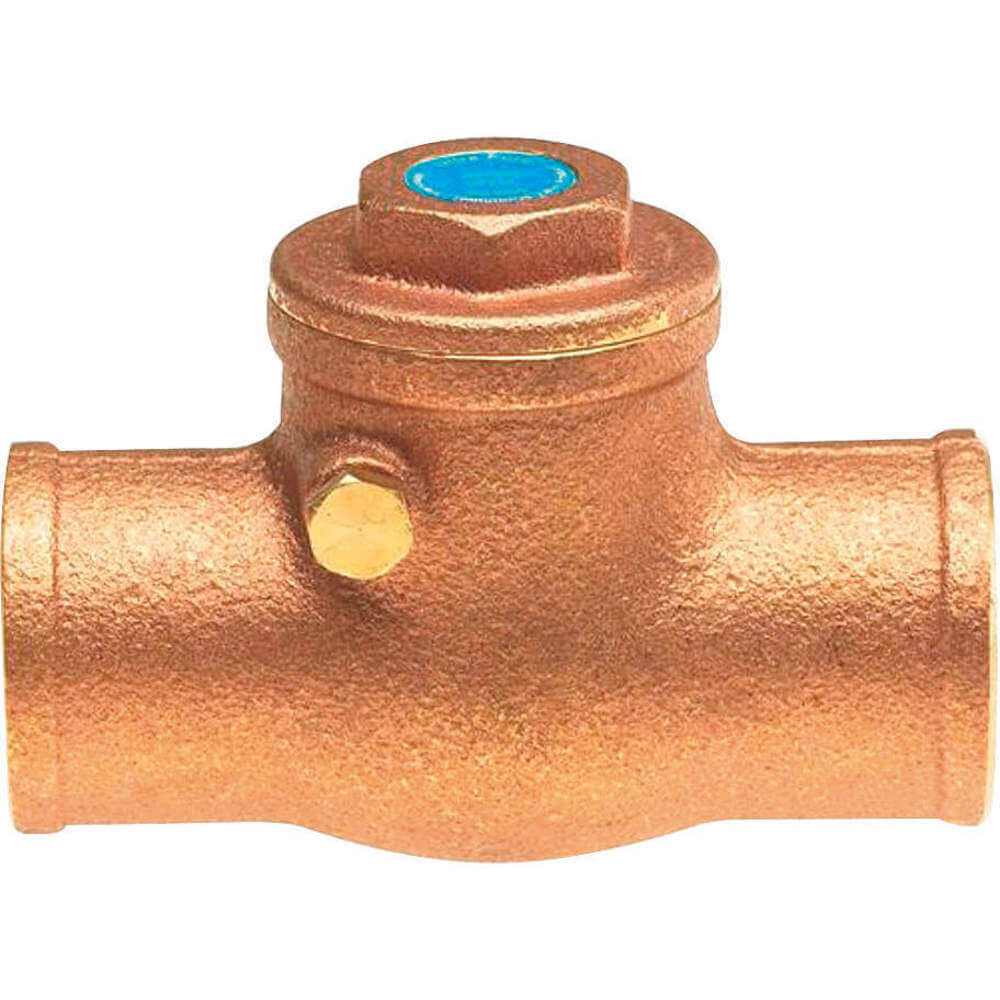

| UP0968000012 | Sweat x Sweat | - | 156°F | 0.1 psi | 1.531" | 10 GPM | 2.094" | Brass | €116.95 | |
| UP0968000034 | Sweat x Sweat | - | 157°F | 0.1 psi | 1 5/8" | 18 GPM | 2.297" | Brass | €139.16 |
