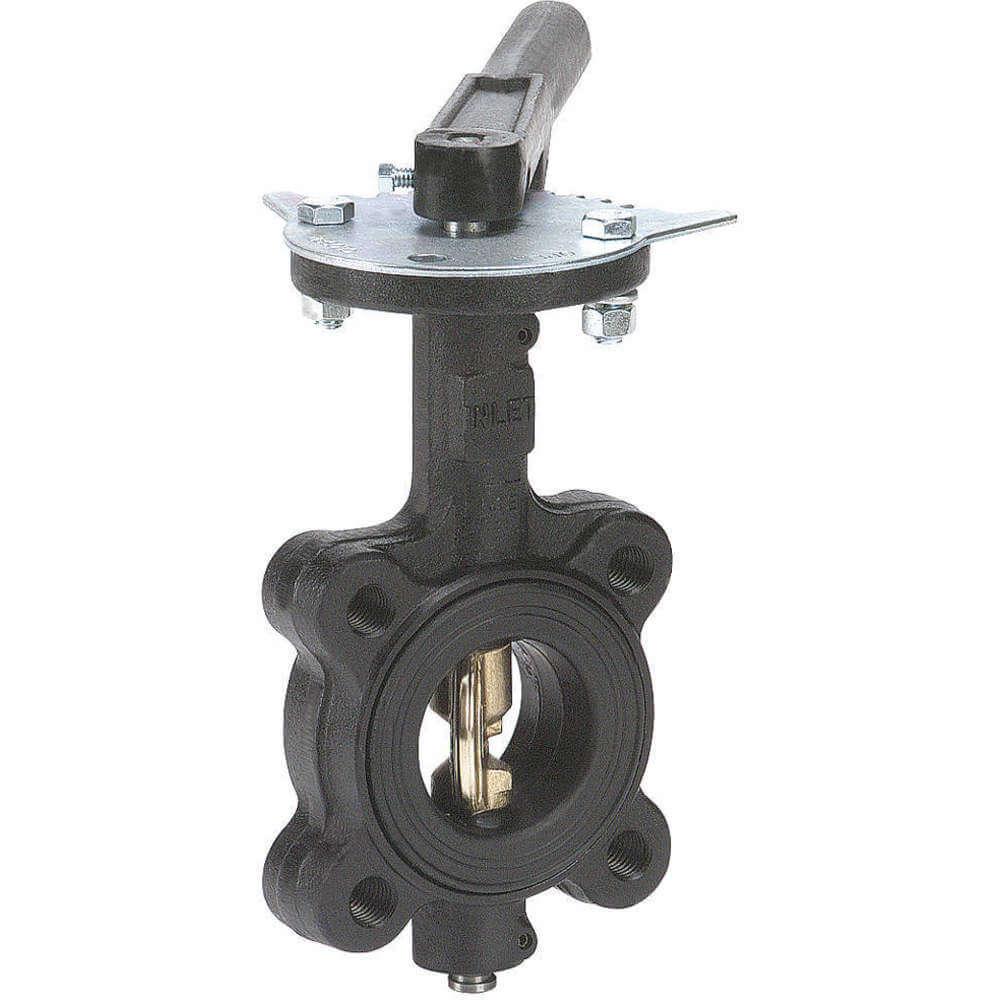

MILWAUKEE VALVE ML232B Butterfly Valve, 2 Inch Pipe Size, Concentric, 200 psi Max Pressure, Lug, Lever
Item: AE4TEGModel: ML232BCross Ref: 5MPC7
7 In Stock
Ships within 2 days via
€279.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Butterfly Valve |
| 3-a Certified | Not Rated |
| Body Material | Ductile Iron |
| Bolt Circle Dia. | 4 3/4" |
| Bolt Holes | 4 |
| Connection Type | Lug |
| Disc Alignment | Concentric |
| Disc Finish | Nickel Plated |
| Disc Material | Ductile Iron |
| Flow Coefficient | 159 |
| For Media | Gas, Oil, Water |
| Handle Length | 11" |
| Handle Type | Lever |
| Included Disc Position Indicator | Disc Position Indicator Included |
| Liner Material | Buna N |
| Lug Dia. | 5/8-11 |
| Lug Dia. | 5/8"-11 |
| Max. Pressure (cwp) | 200 psi |
| Max. Water Pressure | 200 psi |
| Media Temp. | 10°F to 180°F |
| No. Of Bolt Holes | 4 |
| O-ring Material | Buna N |
| Pipe Size | 2" |
| Stem Material | 416 Stainless Steel |
| Stop Positions | 10 |
| Style | Lug |
| Temp. | +10°F to +180°F |
| Vacuum Service Rating | Not Rated |
| Valve Series | M Series |
Shipping Info:
| Ship weight (kg) | 4.14 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 29.21 |
| Ship width (cm) | 15.75 |
| HS code | 8481803030 |
| Country of Origin | CN |
Product Variants
| Model | Disc Material | Temp. | Liner Material | No. Of Bolt Holes | Handle Type | Stem Material | Max. Pressure (cwp) | For Media | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CL223E 2 | Aluminum Bronze Alloy | -30°F to +250°F | EPDM | 4 | Lever | 416 Stainless Steel | 200 psi | Gas, Oil, Water | €228.62 | |
| CL223E 2-1/2 | Aluminum Bronze Alloy | -30°F to +250°F | EPDM | 4 | Lever | 416 Stainless Steel | 200 psi | Gas, Oil, Water | €222.24 | |
| CL223E 3 | Aluminum Bronze Alloy | -30°F to +250°F | EPDM | 4 | Lever | 416 Stainless Steel | 200 psi | Gas, Oil, Water | €212.55 | |
| CL223E 4 | Aluminum Bronze Alloy | -30°F to +250°F | EPDM | 8 | Lever | 416 Stainless Steel | 200 psi | Gas, Oil, Water | €318.87 | |
| CL223E 5 | Aluminum Bronze Alloy | -30°F to +250°F | EPDM | 8 | Lever | 416 Stainless Steel | 200 psi | Gas, Oil, Water | €367.95 | |
| CL223E 6 | Aluminum Bronze Alloy | -30°F to +250°F | EPDM | 8 | Lever | 416 Stainless Steel | 200 psi | Gas, Oil, Water | €434.53 | |
| CL223E 8 | Aluminum Bronze Alloy | -30°F to +250°F | EPDM | 8 | Lever | 416 Stainless Steel | 200 psi | Gas, Oil, Water | €668.20 |
