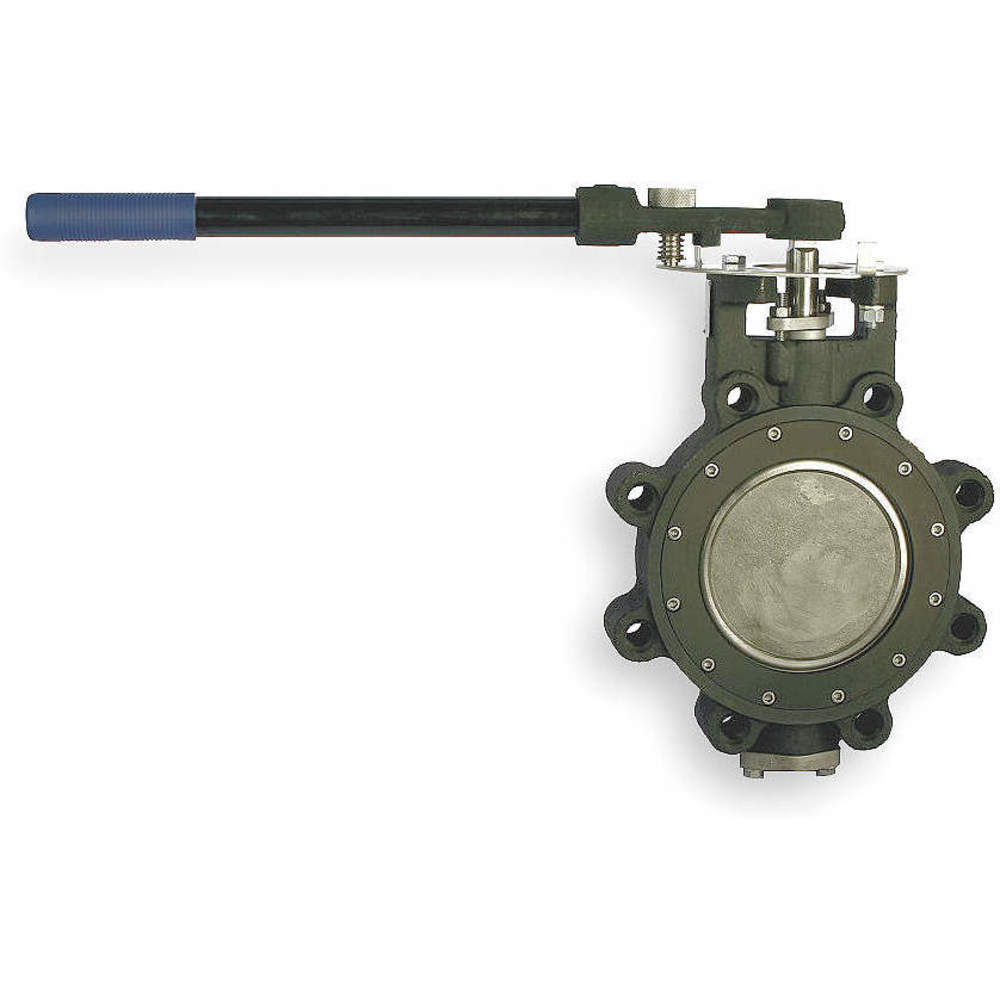

MILWAUKEE VALVE HP1LCS4212 5 Butterfly Valve, For Steam Media, 5 Inch Pipe Size, Lug, 285 psi Max Pressure
Get it by Thursday, Feb 26
5.00% off
€3,529.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Butterfly Valve |
| 3-a Compliance | Not Rated |
| Ansi Flange Class | Class 150 |
| Body Material | Carbon Steel |
| Bolt Circle Dia. | 8 1/2" |
| Bolt Holes | 8 |
| Connection Type | Lug |
| Disc Alignment | Double Offset |
| Disc Material | Cf8M Stainless Steel |
| Flow Coefficient (cv) | 726 |
| For Media | Steam |
| Handle - Locking | Locking |
| Handle Length | 19.87" |
| Handle Type | Lever |
| Includes Disc Position Indicator | Disc Position Indicator Included |
| Liner Material | RPFTE |
| Lug Dia. | 3/4-10 |
| Lug Dia. | 3/4"-10 |
| Lug Diameter | 3/4"-10 |
| Manufacturer Warranty | 1 yr. |
| Max. Pressure (cwp) | 285 psi |
| Max. Steam Pressure | 150 psi |
| Media Temperature Range | -20°F to +400°F |
| No. Of Bolt Holes | 8 |
| Number Of Bolt Holes | 8 |
| O-ring Material | Graphite |
| Pipe Size | 5" |
| Stem Material | 17-4PH Stainless Steel |
| Stop Positions | 10 |
| Style | Lug |
| Temp. Range | -20°F to +400°F |
| Vacuum Service Rating | Not Rated |
| Valve Series | HP |
Shipping Info:
| Ship weight (kg) | 17.18 |
| Ship height (cm) | 18.54 |
| Ship length (cm) | 42.16 |
| Ship width (cm) | 29.97 |
| HS code | 8481803075 |
| Country of Origin | CN |
Product Variants
| Model | Handle Type | Body Material | Pipe Size | Temp. Range | Liner Material | Disc Material | Lug Dia. | Number Of Bolt Holes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CL223E 2 | Lever | Cast Iron | 2" | -30°F to +250°F | EPDM | Aluminum Bronze Alloy | 5/8"-11 | 4 | €268.25 | |
| CL223E 2-1/2 | Lever | Cast Iron | 2 1/2" | -30°F to +250°F | EPDM | Aluminum Bronze Alloy | 5/8"-11 | 4 | €276.44 | |
| CL223E 3 | Lever | Cast Iron | 3" | -30°F to +250°F | EPDM | Aluminum Bronze Alloy | 5/8"-11 | 4 | €265.14 | |
| CL223E 4 | Lever | Cast Iron | 4" | -30°F to +250°F | EPDM | Aluminum Bronze Alloy | 5/8"-11 | 8 | €384.24 | |
| CL223E 5 | Lever | Cast Iron | 5" | -30°F to +250°F | EPDM | Aluminum Bronze Alloy | 3/4"-10 | 8 | €443.40 | |
| CL223E 6 | Lever | Cast Iron | 6" | -30°F to +250°F | EPDM | Aluminum Bronze Alloy | 3/4"-10 | 8 | €523.63 | |
| CL223E 8 | Lever | Cast Iron | 8" | -30°F to +250°F | EPDM | Aluminum Bronze Alloy | 3/4"-10 | 8 | €771.72 |
