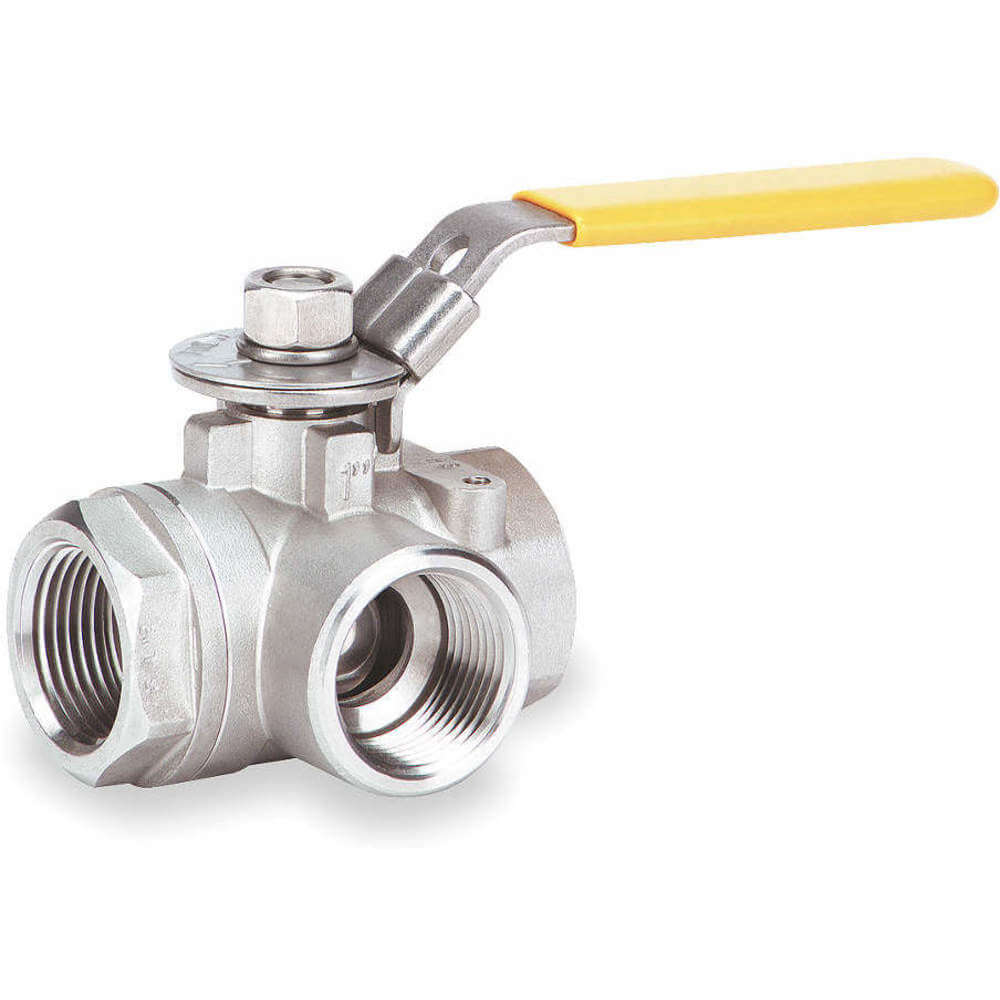

MILWAUKEE VALVE BA3WDSLH 2 Manual Three-Way Ball Valve, 2 Inch, CF8M Stainless Steel, L Flow, FNPT x FNPT x FNPT
Item: AA9YCYModel: BA3WDSLH 2Cross Ref: 1JCL5
7 In Stock
Ships within 2 days via
10.00% off
€1,228.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Stainless Steel |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | Stainless Steel |
| Flow Pattern | L Flow |
| For Media | Gas, Oil, Water |
| Grade | Grade CF8M |
| Handle | Locking Lever |
| Handle - Locking | Locking |
| Handle Color | Yellow |
| Handle Height | 3.46" |
| Handle Length | 8.07" |
| Handle Material | Grade 304 Stainless Steel |
| Handle Type | Lever Locking |
| Included Mounting | Not Applicable |
| Inlet Connection | FNPT |
| Inlet Connection Entry | Side |
| Inlet Connection Gender | Female |
| Inlet Connection Size | 2" |
| Max. Pressure | 1000 psi WOG |
| Max. Pressure (cwp) | 1000 psi |
| Max. Pressure (steam) | 65 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Media Temperature Range | -20°F to +450°F |
| Nominal Valve Size | 2" |
| Number Of Pieces | 2 |
| Number Of Ways | 3 |
| Outlet Connection 1 | FNPT |
| Outlet Connection 2 | FNPT |
| Outlet Connection Gender - Side 1 | Female |
| Outlet Connection Gender - Side 2 | Female |
| Outlet Connection Size - Side 1 | 2" |
| Outlet Connection Size - Side 2 | 2" |
| Overall Length | 5.59" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 2" |
| Port | Standard L |
| Pressure For Water | 1000 psi WOG |
| Seal Material | RPTFE |
| Seat Material | RPTFE |
| Special Features | Not Applicable |
| Standards | Astm A351 |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. Range | -20°F to +450°F |
| Vacuum Service Rating | 29.92 in. hg |
| Valve Construction | Two-Piece |
| Valve Series | 30 Series |
| Vented Ball Valve | Not Applicable |
Shipping Info:
| Ship weight (kg) | 3.24 |
| Ship height (cm) | 12.95 |
| Ship length (cm) | 27.43 |
| Ship width (cm) | 11.18 |
| HS code | 8481801085 |
| Country of Origin | CN |
Product Variants
| Model | Overall Length | Pipe Size | Number Of Ways | Body Material | Max. Pressure | Ball Material | Seat Material | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BA3WDSLH 3/8 | 2.36" | 3/8" | 3 | Stainless Steel | 1000 psi WOG | Stainless Steel | RPTFE | RPTFE | €353.32 | |
| BA3WDSLH 1/2 | 2.36" | 1/2" | 3 | Stainless Steel | 1000 psi WOG | Stainless Steel | RPTFE | RPTFE | €364.53 | |
| BA3WDSLH 3/4 | 2.99" | 3/4" | 3 | Stainless Steel | 1000 psi WOG | Stainless Steel | RPTFE | RPTFE | €476.29 | |
| BA3WDSLH 1 | 3.39" | 1" | 3 | Stainless Steel | 1000 psi WOG | Stainless Steel | RPTFE | RPTFE | €644.19 | |
| BA3WDSLH 1 1/4 | 3.82" | 1 1/4" | 3 | Stainless Steel | 1000 psi WOG | Stainless Steel | RPTFE | RPTFE | €747.26 | |
| BA3WDSLH 1 1/2 | 4.49" | 1 1/2" | 3 | Stainless Steel | 1000 psi WOG | Stainless Steel | RPTFE | RPTFE | €988.30 |
