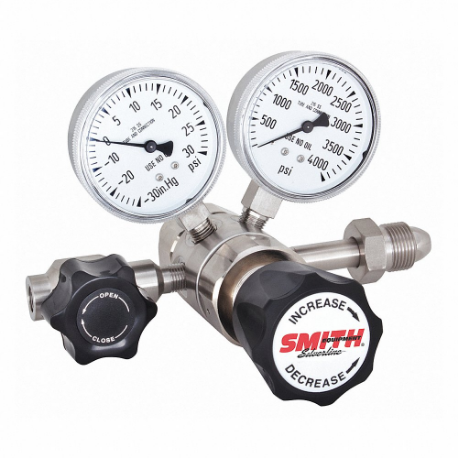

MILLER-SMITH EQUIPMENT 322-85250000 High Purity Gas Regulator, Two Stage, CGA 660 Inlet, 1/4 Inch Tube Outlet, 100 PSIg
Get it by Tuesday, Dec 23
10.00% off
€3,088.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | High Purity Gas Regulator |
| Application | Stable Delivery Pressure Control |
| Body Dia. | 2" |
| Body Finish | Nickel Plated |
| Body Material | Stainless Steel |
| Body Material Grade | Grade 316 |
| Bonnet Material | Nickel Plated Brass |
| Cga Number | CGA 660 |
| Control Type | Knob |
| Diaphragm Material | Stainless Steel |
| Features | Metal To Metal Diaphragm Seal |
| Filter Material | Stainless Steel |
| Filter Material Grade | Grade 316 |
| Flow Coefficient | 0.1 |
| For Gas Type | Chlorine, Nitric Oxide, Nitrogen Dioxide, Sulfur Dioxide |
| Gas Purity Rating | 99.5% |
| Gauge Diameter | 2 1/2" |
| Helium Leak Integrity Rating | 2.00 x 10^-8 Cc/Sec |
| Inlet Connection | CGA 660 |
| Inlet Connection Gender | Male |
| Inlet Connection Size | 1.03"-14 |
| Inlet Connection Type | NGO |
| Inlet Thread Direction | Right Hand |
| Max. Inlet Pressure | 3500 psig |
| Max. Operating Temp. | 165°F |
| Max. Outlet Pressure | 100 psig |
| Min. Operating Temp. | -40°F |
| Min. Outlet Pressure | 0 psig |
| Mounting Location | Front Panel |
| Mounting Type | Cylinder |
| Number Of Stages | 2 |
| Outlet Connection Size | 1/4" |
| Regulator Series | 320 Series |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
