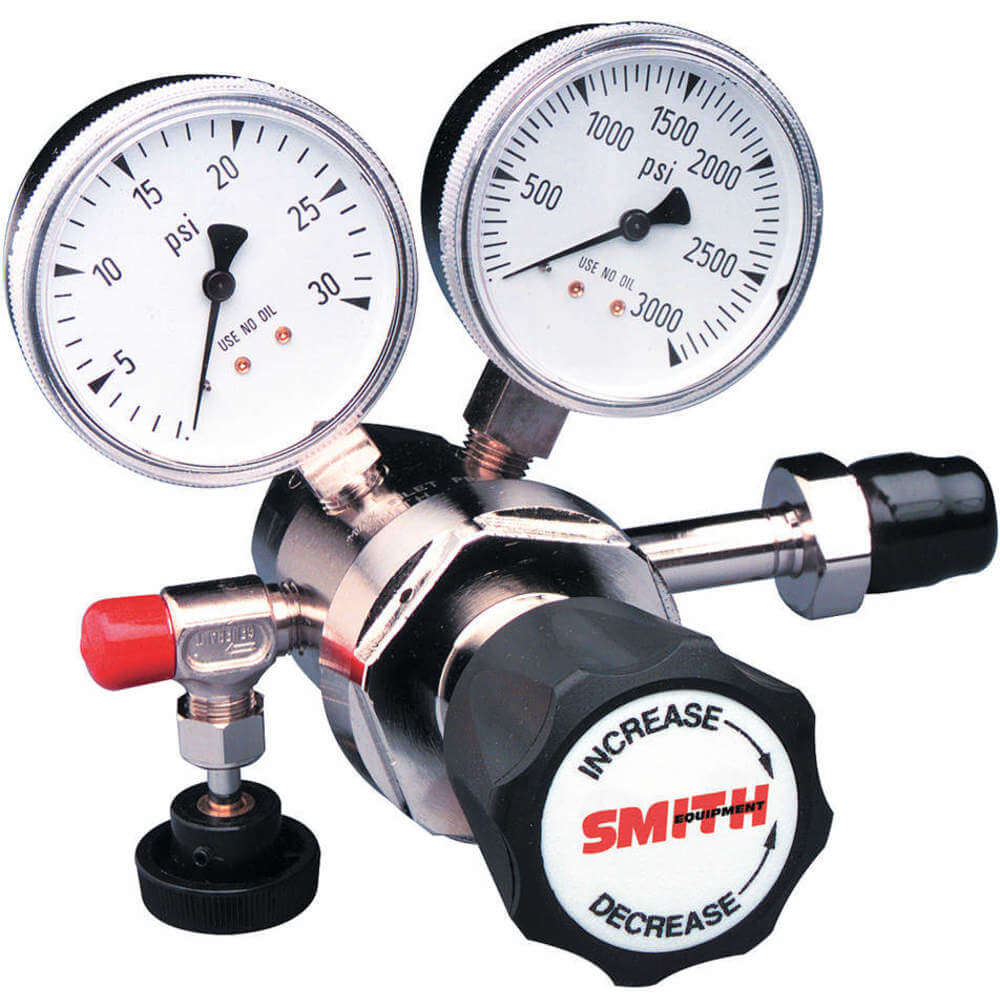

MILLER-SMITH EQUIPMENT 122-2006 General Purpose Two Stage Regulator
Item: AF2AHLModel: 122-2006Cross Ref: 6PHG1
7 In Stock
Ships within 2 days via
10.00% off
€1,025.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Specialty Gas Regulator |
| Application | General Purpose |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Bonnet Material | Nickel Plated Brass |
| Cga Number | RP_CGA 350 |
| Coefficient Of Volume | 0.19 |
| Control Type | Knob |
| Delivery | 100 psi |
| Delivery Pressure Range | 0 psig to 100 psig |
| Diaphragm Material | Neoprene |
| Features | Built In Safety Relief Valve, Plated Body, Bonnet, And Gauges |
| Filter Material | Stainless Steel |
| Flow Coefficient | 0.19 |
| For Gas Type | Hydrogen, Methane |
| Gas Purity Rating | 99.9% |
| Gas Service | Inert, Non Corrosive |
| Gauge Diameter | 2 1/2" |
| Gauge Size | 2-1/2" |
| Gauge Size | 2 1/2" |
| Gauges Delivery Pressure | 0 psi to 200 psi |
| Grade | Grade 316 |
| Helium Leak Integrity Rating | 1 x 10^ 5 Cc/Sec |
| Inlet Connection | CGA 350 |
| Inlet Connection Gender | Male |
| Inlet Connection Size | 0.825"-14 |
| Inlet Connection Type | NGO |
| Inlet Pressure (maximum) | 3500 psig |
| Inlet Thread Direction | Left Hand |
| Mounting Type | Cylinder |
| Number Of Stages | Two |
| Operating Temperature (maximum) | 165°F |
| Operating Temperature (minimum) | -40°F |
| Outlet Connection | 1/4" |
| Outlet Connection Gender | Male |
| Outlet Connection Size | 1/4" |
| Outlet Pressure (maximum) | 100 psig |
| Outlet Pressure (minimum) | 0 psig |
| Overall Length | 4 3/4" |
| Regulator Capacity | Heavy Duty |
| Regulator Series | 120 Series |
| Seal Material | FKM |
| Seat Material | PFA |
| Supply Pressure Gauge | 4000 psi |
| Type | General Purpose |
Shipping Info:
| Ship weight (kg) | 1.49 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 23.88 |
| HS code | 8481809015 |
| Country of Origin | US |
Product Variants
| Model | Number Of Stages | Body Material | Diaphragm Material | Mounting Type | Inlet Connection | Control Type | Helium Leak Integrity Rating | Gas Purity Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 824-0009 | Single | Brass | Neoprene | Cylinder | CGA 580 | T-Handle | 1 x 10^ 5 Cc/Sec | - | €1,492.13 | |
| 825-0009 | Single | Brass | Neoprene | Cylinder | CGA 580 | T-Handle | 1 x 10^ 5 Cc/Sec | - | €1,435.81 | |
| 826-0009 | Single | Brass | Neoprene | Cylinder | CGA 580 | T-Handle | 1 x 10^ 5 Cc/Sec | - | €1,409.01 | |
| 210-4102 | Single | Brass | Stainless Steel | Cylinder | CGA 320 | Knob | 1 x 10^ 5 Cc/Sec | 99.99% | €819.89 | |
| 213-4102 | Single | Brass | Stainless Steel | Cylinder | CGA 320 | Knob | 1 x 10^ 5 Cc/Sec | 99.99% | €929.21 | |
| 210-4106 | Single | Brass | Stainless Steel | Cylinder | CGA 350 | Knob | 1 x 10^ 5 Cc/Sec | 99.99% | €943.03 | |
| 213-4106 | Single | Brass | Stainless Steel | Cylinder | CGA 350 | Knob | 1 x 10^ 5 Cc/Sec | 99.99% | €926.63 |
