MILLER ELECTRIC 907683 TIG Welder, Maxstar 210, DC, Power Source Only, 150 A/210 A
Get it by Wednesday, Dec 24
10.00% off
€5,887.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | TIG Welder |
| Color | Blue |
| Features | Wireless Remote Compatible |
| For Material Type | Specialty Metals, Stainless Steel, Steel |
| For Maximum Material Thickness | 1/4" |
| For Minimum Material Thickness | 0.002" |
| Includes | Power Source Only |
| Input Frequency | 50/60 Hz |
| Input Voltage | 110/115/120/208/220/230/240/380/400/460/480V AC |
| Maximum Amperage (stick) | 210A |
| Maximum Amperage (tig) | 210A |
| Maximum Input Current | 15 A @ 208V (Three-Phase), 26 A @ 208V (Single-Phase) |
| Minimum Amperage (stick) | 5A |
| Minimum Amperage (tig) | 1A |
| Model | 907683 |
| Open Circuit Voltage | 80V DC |
| Overall Depth | 19 1/2" |
| Overall Height | 13.61" |
| Overall Width | 8.61" |
| Phase | 1, 3 |
| Plug Type | Bare Leads |
| Polarity | DC |
| Power Cord Length | 8 ft. |
| Process | Stick Welding, TIG Welding |
| Promotion Restriction | Not Eligible For Promotion |
| Remote Connection Type | 14-Pin (Miller) |
| Remote Control | Remote Control Not Included |
| Tig Arc Start Feature | Lift Arc Start, High Frequency Start |
| Weight | 38 lbs. |
| Welded Material | Mild Steel, Stainless Steel |
| Welder Series | MAXSTAR 210 Series |
| Welding Power Source Type | CC |
Shipping Info:
| Ship weight (kg) | 19.62 |
| Ship height (cm) | 34.57 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 21.87 |
| Country of Origin | US |
Product Variants
| Product | Model | Plug Type | Phase | Polarity | Rated Output @ Duty Cycle (tig) | Remote Connection Type | Overall Height | Minimum Amperage (stick) | Open Circuit Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
907627 | 5-15P, 6-50P | Single-Phase | AC/DC | 125 A @ 15 V, 35% (115 V), 150 A @ 16 V, 20% (230 V), 180 A @ 17.2 V, 10% (230 V) | RJ45 | 17" | 10A | 80 | €4,612.83 | |
 |
907550 | Bare Leads | 1, 3 | AC/DC | 250A @ 20V, 60% | 14 Pin (Miller) | 13.63" | 5A | 60V DC | - | RFQ
|
 |
907552 | Bare Leads | 1 | - | - | - | 13 5/8" | - | - | €9,766.06 | |
 |
907553 | Bare Leads | 1 | AC/DC | 235A @ 19V, 60% | - | 13.63" | 1A | 60V DC | €8,459.09 | |
|
907538 | Bare Leads | 1 | AC/DC | 235A @ 19V, 60% | - | 13.63" | 1A | 60V DC | €8,175.60 | |
|
907539 | Bare Leads | 1 | - | - | - | 13 5/8" | - | - | €9,167.85 | |
 |

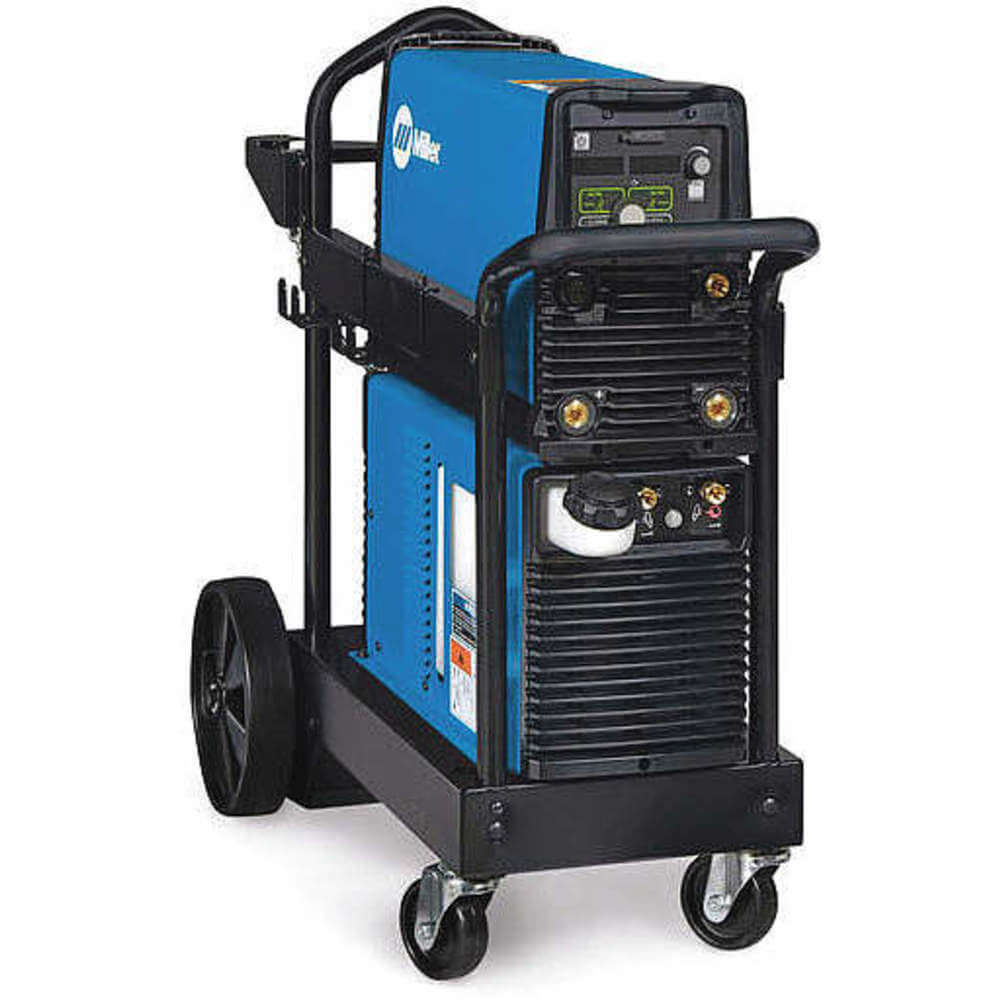

907538002 | Bare Leads | 1 | AC/DC | 235A @ 19V, 60% | - | 13.63" | 1A | 60V DC | €10,362.61 |
