MILLER ELECTRIC 907161 Multiprocess Welder, Dc, Power Source Only
Get it by Wednesday, Dec 24
10.00% off
€9,128.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Multiprocess Welder |
| Amperage Range | 5-425A |
| Amperage Range | 5A to 425A |
| Application | Aerospace, Construction, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Manufacturing, Railcar, Shipbuilding |
| Color | Blue |
| Features | Output Connector Choices, Power Management Technology, Standard 14-Pin Receptacle, Welder Friendly Control Panel |
| For Material Type | Aluminum, Metal, Stainless Steel, Steel |
| For Wire Type | Aluminum, Flux-Cored, Solid |
| Includes | Power Source Only |
| Input Frequency | 50/60 Hz |
| Input Voltage | 208/220/230/240/380/400/440/460/480/575V AC |
| Max. Wire Dia. | 0.40" (Aluminum), 0.45" (Nickel), 0.45" (Steel) |
| Maximum Amperage (mig) | 425A |
| Maximum Amperage (stick) | 425A |
| Maximum Amperage (tig) | 425A |
| Maximum Input Current | 40.4A @ 208V AC (Three Phase), 60.8A @ 208V AC (Single Phase) |
| Minimum Amperage (mig) | 5A |
| Minimum Amperage (stick) | 5A |
| Minimum Amperage (tig) | 5A |
| Minimum Wire Diameter | 0.35 (aluminum), 0.35 (nickel), 0.35 (steel) |
| Model | 907161 |
| Open Circuit Voltage | 75V DC |
| Output Current | 425A |
| Overall Depth | 26" |
| Overall Height | 16" |
| Overall Width | 20" |
| Phase | Single Phase, Three Phase |
| Plug Type | Bare Leads |
| Polarity | DC |
| Process | MIG Welding (GMAW), Flux-Cored Welding (FCAW), Stick Welding (SMAW), TIG Welding (GTAW), Air Carbon Arc Cutting And Gouging (CAC-A) |
| Promotion Restriction | Not Eligible For Promotion |
| Rated Output @ Duty Cycle (mig) | 300A @ 32V DC, 60%, 350A @ 34V DC, 60% |
| Rated Output @ Duty Cycle (stick) | 300A @ 32V, 60%, 350A @ 34V, 60% |
| Rated Output @ Duty Cycle (tig) | 300 A @ 32 V, 60% (1-Phase), 350 A @ 34 V, 60% (3-Phase) |
| Remote Connection Type | 14 Pin (Miller) |
| Tig Arc Start Feature | Lift Arc Start |
| Weight | 80 lbs. |
| Welder Series | XMT 350 CC/CV Series |
| Welding Power Source Type | CC/CV |
| Wire Dia. | 2/5" |
Shipping Info:
| Ship weight (kg) | 38.7 |
| Ship height (cm) | 40.64 |
| Ship length (cm) | 66.04 |
| Ship width (cm) | 50.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Process | Input Frequency | Maximum Amperage (tig) | Plug Type | Polarity | Rated Output @ Duty Cycle (stick) | Remote Connection Type | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

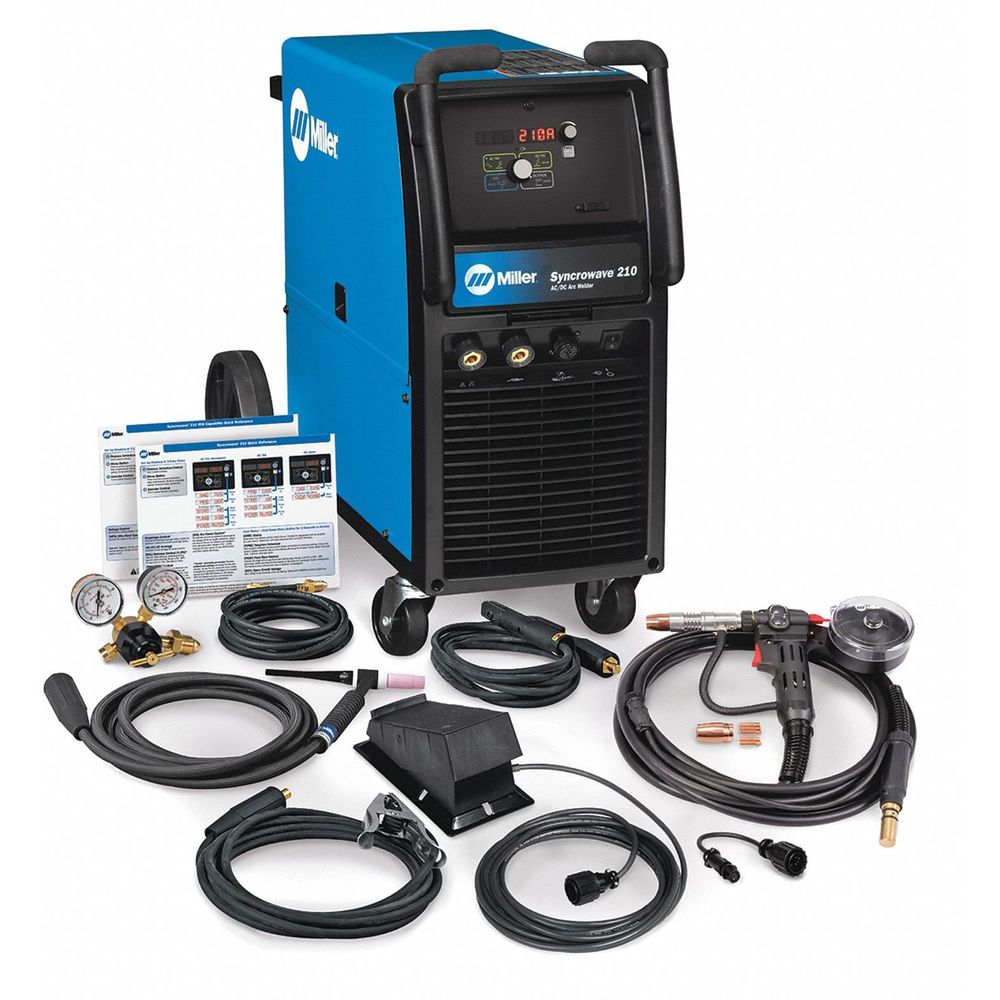

951684 | Mig Welding (GMAW), Flux-Cored Welding (FCAW), Stick Welding (SMAW), Tig Welding (GTAW) | 50/60 Hz | 210A | 5-15P, 6-50P | AC/DC | 70A @ 22.8V, 60% (115V), 90A @ 23.6V, 60% (230V) | 14 Pin (Miller) | 1 | - | RFQ
|
 |

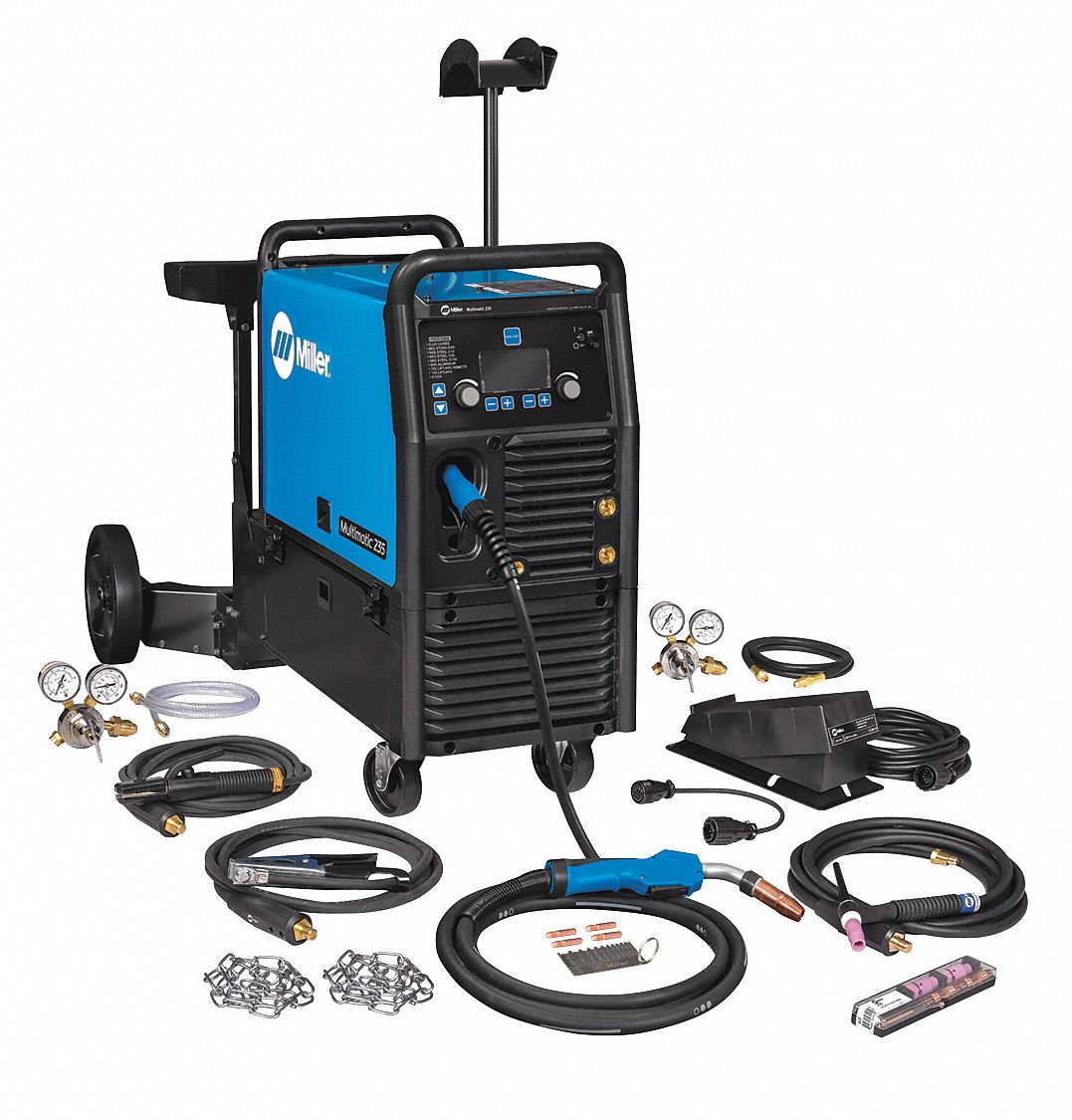

951847 | Mig Welding (GMAW), Flux-Cored Welding (FCAW), Stick Welding (SMAW), Tig Welding (GTAW) | 50/60 Hz | 210A | NEMA 6-50P | DC | 150A @ 26V, 60% | 14 Pin (Miller) | 1 | €6,731.25 | |
 |

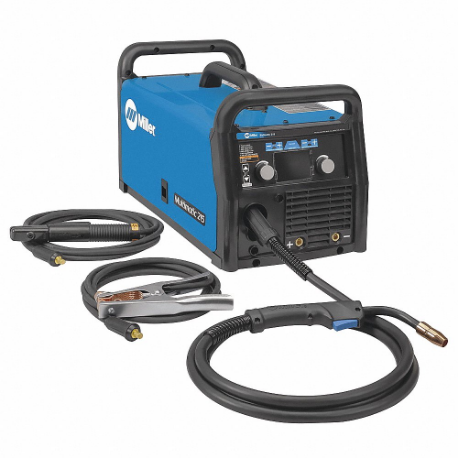

907693 | Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW) | 50/60 Hz | 210A | 5-15P, 6-50P | DC | 190A @ 27.6V, 20%, 90A @ 23.6V, 40% | RJ45 | 1.0 | €3,409.20 | |
 |

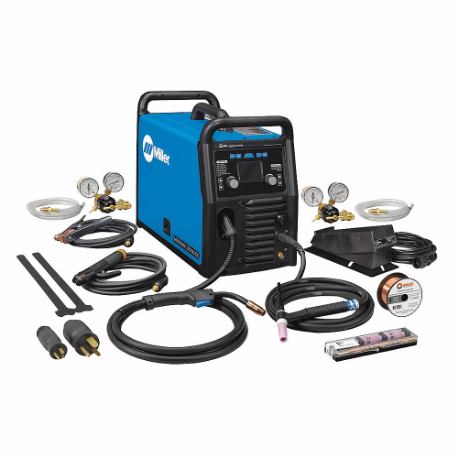

907757 | Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW) | 50/60 Hz | 210A | 5-15P, 6-50P | AC, DC | 200A @ 28.4V, 15%, 90A @ 23.6V, 40% | 14-Pin (Miller) | - | €6,698.18 | |
 |
951846 | Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW) | 50/60 Hz | 210A | 6-50P | DC | 150A @ 26V, 60% | 14-Pin (Miller) | 1.0 | €5,373.09 | |
 |

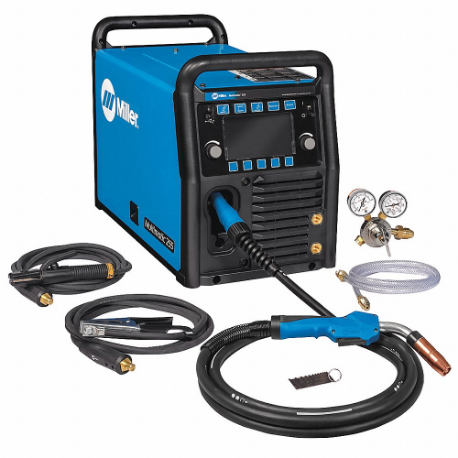

907728 | Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW) | 50/60 Hz | 275A | Bare Leads | DC | 200A @ 28V, 60% | 14-Pin (Miller) | - | €7,224.57 | |
 |

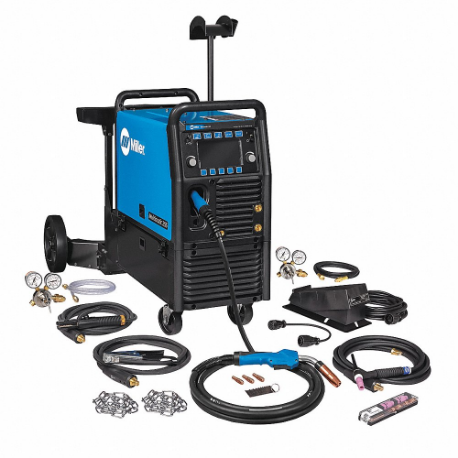

951768 | Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW) | 50/60 Hz | 275A | Bare Leads | DC | 200A @ 28V, 60% | 14-Pin (Miller) | 1.0 | €9,287.72 |
