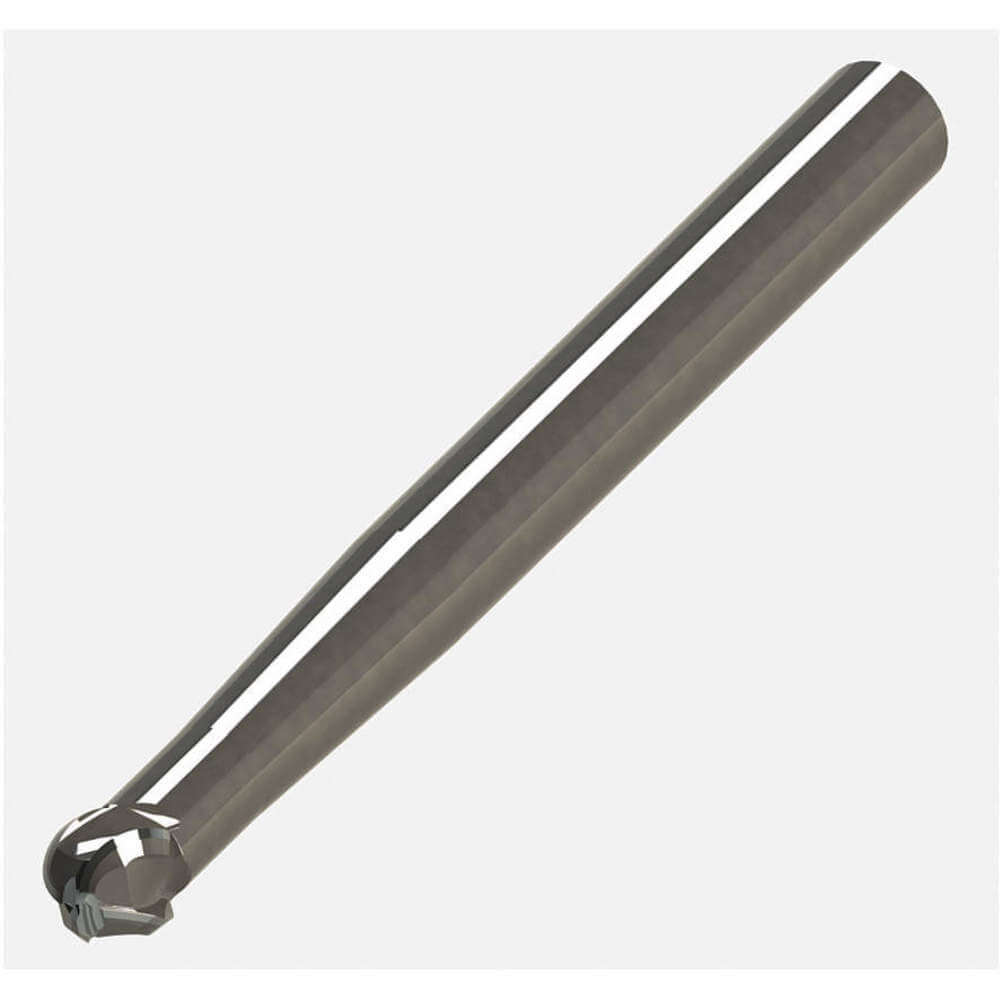

MICRO 100 SBM-500-2X Carbide End Mill 1/2 Cut .400 2 Flutes
Item: AA6NZQModel: SBM-500-2XCross Ref: 14K692
7 In Stock
Ships within 2 days via
10.00% off
€300.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Carbide End Mill |
| Chip-breaker | No |
| Coolant Fed | Non Coolant Through |
| Corner Radius | 1/4" |
| Cutting Direction | Right Hand |
| Cutting Length | 2/5" |
| Cutting Type | Center |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End | Single |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Ball Nose |
| Finish | AlTiN Coat |
| Finish - Machining | AlTiN |
| Grade | Grade C2 |
| Helix Angle | 30° |
| Length Of Cut | 25/64" |
| List Number | SBM |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | Micrograin |
| Measurement System | Fractional Inch |
| Milling Dia. | 1/2" |
| Neck Dia. | 2/5" |
| Neck Length | 7/8" |
| Number Of Flutes | 2 |
| Overall Length | 4" |
| Primary Material Application | Hardened Steel, Nickel, Stainless Steel, Steel, Titanium, Tool And Die Steel |
| Primary Material Application Iso Code | H, M, P, S |
| Shank Dia. | 1/2" |
| Shank Type - Machining | Straight |
| Single End/double End | Single End |
| Type | Finishing |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 1.74 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 1.74 |
| HS code | 8207703030 |
| Country of Origin | US |
Product Variants
| Model | Overall Length | Coolant Fed | Number Of Flutes | Cutting Length | Neck Dia. | Milling Dia. | Neck Length | Corner Radius | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SBM-312-4 | 4" | Non-Coolant Through | 4 | 1/4" | 1/4" | 5/16" | 19/32" | 0.156" | €210.02 | |
| SBM-500-4X | 4" | Non-Coolant Through | 4 | 2/5" | 25/64" | 1/2" | 7/8" | 1/4" | €355.58 | |
| SBMM-020-216X | 75 mm | Non-Coolant Through | 2 | 1.3 mm | 1.3 mm | 2 mm | 16 mm | 1 mm | €167.70 | |
| SBMM-040-220X | 75 mm | Non-Coolant Through | 2 | 2.7 mm | 2.7 mm | 4 mm | 20 mm | 2 mm | €167.70 | |
| SBMM-060-218 | 75 mm | Non-Coolant Through | 2 | 4 mm | 4 mm | 6 mm | 18 mm | 3 mm | €158.46 | |
| SBMM-100-250 | 100 mm | Non-Coolant Through | 2 | 6.7 mm | 6.7 mm | 10 mm | 50 mm | 5 mm | €268.73 | |
| SBMM-100-272 | 100 mm | Non-Coolant Through | 2 | 6.7 mm | 6.7 mm | 10 mm | 55 mm | 5 mm | €268.73 |
