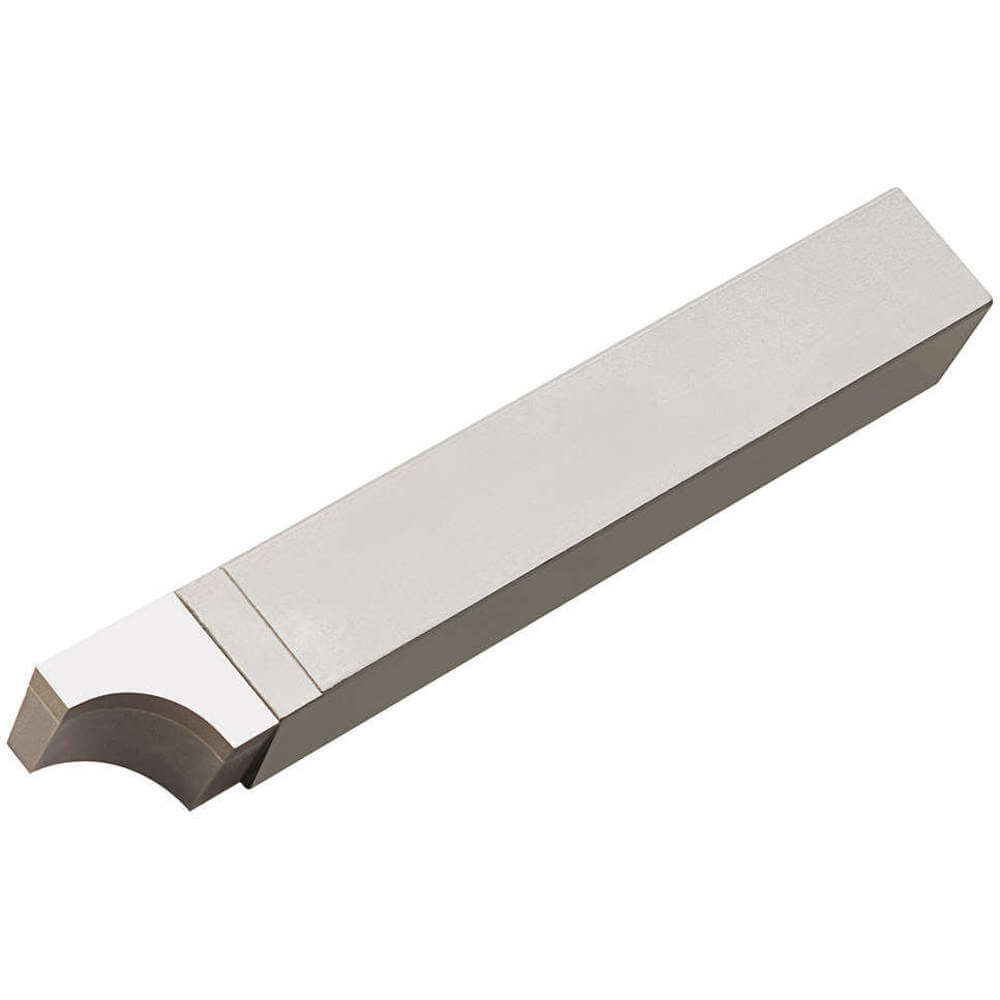

MICRO 100 RAD-16 Forming Bit, 0.5 Inch Radius, 4.5 Inch Overall Length, 0.75 Inch Square Shank
Item: AA8FHCModel: RAD-16Cross Ref: 18D632
7 In Stock
Ships within 2 days via
10.00% off
€91.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Forming Bit |
| Application | Turning |
| Cutting Application | Convex Radius |
| Cutting Direction | Right Hand |
| Features | 5 Degrees Blend Angles Aid In Providing A Burr-Free Transition |
| Finish | Uncoated |
| Nose Radius | 1/2" |
| Offset Point | 0.23" |
| Overall Length | 4 1/2" |
| Profile | Radius |
| Radius | 1/2" |
| Shank Height | 3/4" |
| Shank Width | 3/4" |
| Square Shank | 3/4" |
| Tip Length | 3/4" |
| Tip Material | Carbide |
| Tip Thickness | 3/16" |
| Tolerance | 0.001" |
| Tool Bit Style Code | Rad |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 1.91 |
| HS code | 8207803000 |
| Country of Origin | US |
Product Variants
| Model | Shank Width | Shank Height | Nose Radius | Tip Length | Radius | Tip Thickness | Tool Bit Style Code | Cutting Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RAD-1 | 3/8" | 3/8" | 1/32" | 3/8" | 1/32" | 3/32" | Rad | Right Hand | €83.03 | |
| RAD-2 | 3/8" | 3/8" | 1/16" | 3/8" | 1/16" | 3/32" | Rad | Right Hand | €82.86 | |
| RAD-3 | 3/8" | 3/8" | 3/32" | 3/8" | 0.0938" | 3/32" | Rad | Right Hand | €83.03 | |
| RAD-4 | 3/8" | 3/8" | 1/8" | 3/8" | 1/8" | 3/32" | Rad | Right Hand | €83.99 | |
| RAD-5 | 3/8" | 3/8" | 5/32" | 3/8" | 5/32" | 3/32" | Rad | Right Hand | €82.93 | |
| RAD-6 | 3/8" | 3/8" | 3/16" | 3/8" | 3/16" | 3/32" | Rad | Right Hand | €82.04 | |
| RAD-7 | 3/8" | 3/8" | 7/32" | 3/8" | 7/32" | 3/32" | Rad | Right Hand | €81.80 |
