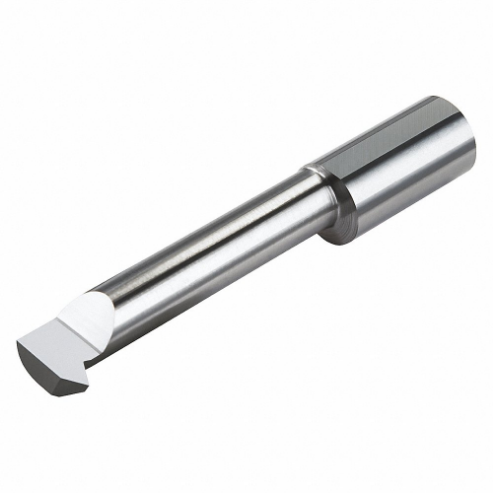

MICRO 100 IT-1 Threading Tool Set, Standard, UN Threads, Single Point, Right Hand
Item: AA7WMQModel: IT-1Cross Ref: 16T410
7 In Stock
Ships within 2 days via
10.00% off
€635.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Threading Tool |
| Application | Interal Threading |
| Center To Cutting Tip | 0.055", 0.074", 0.075", 0.133", 0.134", 0.173" |
| Cutting Angle | 60° |
| Cutting Application | Threading |
| Cutting Direction | Right Hand |
| Features | Corner Radius Profile, Polished Split Face For Improved Edge Retention And Chip Evacuation While Reducing Galling, Split Geometry Makes The Tool As Rigid As Possible |
| Finish | Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Included Angle | 60° |
| Includes | It-200600, It-230600, It-290750, It-320750, It-360750, Mfr. No. It-180500 |
| Largest Bar Max. Hole Depth | 3/4" |
| Largest Bar Min. Bore Dia. | 0.36" |
| Largest Shank Dia. | 3/8" |
| Material | Carbide |
| Material - Machining | Carbide |
| Maximum Hole Depth | 0.6", 1/2", 3/4" |
| Min. Teeth Per Inch | 10, 14, 20, 24 |
| Number Of Pieces | 6 |
| Number Of Tools | 6 |
| Offset Point | 0.023", 0.026", 0.032", 0.04", 0.043", 0.049" |
| Overall Length | 2 1/2" |
| Projection | 0.04", 0.045", 0.055", 0.07", 0.075", 0.085" |
| Shank Diameter | 1/4", 3/8", 5/16" |
| Shank Material | Carbide |
| Shank Type | Straight With Three Flats |
| Shank Type - Machining | Straight With Three Flats |
| Smallest Bar Max. Hole Depth | 1/2" |
| Smallest Bar Min. Bore Dia. | 0.18" |
| Smallest Shank Dia. | 1/4" |
| Style | Internal Threading Tool |
| Thread Direction | Right Hand |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 15.56 |
| HS code | 8209000030 |
| Country of Origin | US |
Product Variants
| Model | Hole Dia. | Max. Depth | Projection | Shank Dia. | Overall Length | Offset Point | Max. Hole Depth | Cutting Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| IT-040075 | 1/25" | 0.075" | 0.015" | 1/8" | - | 0.009" | 0.075" | Right Hand | €70.70 | |
| IT-040100 | 1/25" | 0.1" | 0.015" | 1/8" | 1 1/2" | 0.009" | 0.1" | Right Hand | €70.70 | |
| IT-040150 | 1/25" | 0.15" | 0.015" | 1/8" | 1 1/2" | 0.009" | 0.15" | Right Hand | €71.29 | |
| IT-050100 | 0.05" | 0.1" | 0.02" | 1/8" | 1 1/2" | 0.012" | 0.1" | Right Hand | €71.29 | |
| IT-050150 | 0.05" | 0.15" | 0.02" | 1/8" | 1 1/2" | 0.012" | 0.15" | Right Hand | €70.70 | |
| IT-050200 | 0.05" | 1/5" | 0.02" | 1/8" | 1 1/2" | 0.012" | 1/5" | Right Hand | €71.29 | |
| IT-060200 | 0.06" | 1/5" | 0.02" | 1/8" | 1 1/2" | 0.012" | 1/5" | Right Hand | €62.18 |
