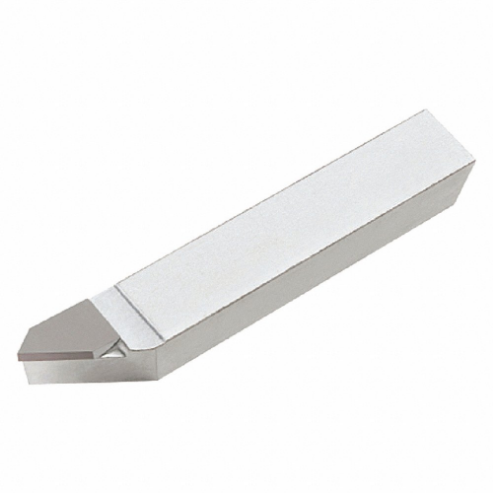

MICRO 100 EL-5 Threading Tool, 0.27 Inch Brazed Width, 2.25 Inch Overall Length, 0.3125 Inch Square Shank
Item: AA8FAEModel: EL-5Cross Ref: 18D442
7 In Stock
Ships within 2 days via
10.00% off
€20.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Threading Tool |
| Application | Turning |
| Brazed Width | 0.27" |
| Cutting Application | Outside Diameter Threading Close To Shoulder |
| Cutting Direction | Left Hand |
| Features | Zinc Coated Shank Provides Durability And Corrosion Resistance |
| Finish | Zinc |
| Included Angle | 60° |
| Length | 9/25" |
| Offset Point | 0.063" |
| Overall Length | 2 1/4" |
| Shank Height | 5/16" |
| Shank Width | 5/16" |
| Square Shank | 5/16" |
| Tip Length | 3/8" |
| Tip Material | Carbide |
| Tip Thickness | 3/32" |
| Tip Width | 0.27" |
| Tool Bit Style Code | EL |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 0.79 |
| Ship length (cm) | 5.72 |
| Ship width (cm) | 0.79 |
| HS code | 8207803000 |
| Country of Origin | US |
Product Variants
| Model | Overall Length | Shank Height | Shank Width | Offset Point | Cutting Direction | Finish | Tip Material | Included Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EL-6 | 2 1/2" | 3/8" | 3/8" | 0.063" | Left Hand | Zinc | Carbide | 60° | €24.35 | |
| EL-8 | 3 1/2" | 1/2" | 1/2" | 0.094" | Left Hand | Zinc | Carbide | 60° | €27.89 | |
| EL-10 | 4" | 5/8" | 5/8" | 0.094" | Left Hand | Zinc | Carbide | 60° | €40.04 | |
| EL-12 | 4 1/2" | 3/4" | 3/4" | 1/8" | Left Hand | Zinc | Carbide | 60° | €61.47 |
