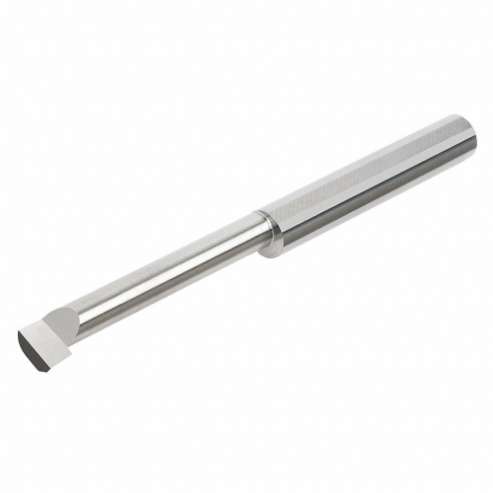

MICRO 100 BBM-080725 Boring Bar, 25 mm Max. Bore Depth, 7 mm Head Width, 7.500 mm Min. Bore Dia.
Item: AA7CCWModel: BBM-080725Cross Ref: 15T586
7 In Stock
Ships within 2 days via
10.00% off
€58.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Boring Bar |
| Application | Boring |
| Bore Depth | 25 mm |
| Bore Dia. | 7 mm |
| Boring Bar Type | Boring |
| Center To Cutting Tip | 3 mm |
| Centerline Offset | 3 mm |
| Compatible With | Micro-Quik Tool Holder |
| Compatible With Product Type | Micro-Quik Tool Holder |
| Cutting Application | Boring |
| Cutting Direction | Right Hand |
| Features | Sharp Corner Profile, Split Geometry |
| Finish | Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Head Width | 7 mm |
| Max. Bore Depth | 25 mm |
| Min. Bore Dia. | 7.5 mm |
| Overall Length | 63 mm |
| Product Datasheet | micro-100-bb-050150.pdf |
| Projection | 1.75 mm |
| Shank Dia. | 8 mm |
| Shank Material | Carbide |
| Shank Type - Machining | Straight With Three Flats |
| Side Cutting Edge Angle | 6° |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 0.79 |
| Ship length (cm) | 6.3 |
| Ship width (cm) | 0.79 |
| HS code | 8207600061 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Center To Cutting Tip | Finish | Shank Dia. | Min. Bore Dia. | Projection | Overall Length | Offset Point | Cutting Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BB-050150S | -0.013" | Uncoated | 1/8" | 0.055" | 0.012" | - | -0.013" | Right Hand | €43.23 | |
| BB-050150SG | -0.013" | Tin Coated | 1/8" | 0.055" | 0.012" | 1 1/2" | -0.013" | Right Hand | €47.65 | |
| BB-050200S | -0.013" | Uncoated | 1/8" | 0.055" | 0.012" | - | -0.013" | Right Hand | €43.23 | |
| BB-050200SG | -0.013" | Tin Coated | 1/8" | 0.055" | 0.012" | - | -0.013" | Right Hand | €47.65 | |
| BB-050300S | -0.013" | Uncoated | 1/8" | 0.055" | 0.012" | 1 1/2" | -0.013" | Right Hand | €43.23 | |
| BB-050300SG | -0.013" | Tin Coated | 1/8" | 0.055" | 0.012" | - | -0.013" | Right Hand | €48.21 | |
| BB-050400S | -0.013" | Uncoated | - | 0.055" | 0.012" | 1 1/2" | -0.013" | - | €43.23 |
