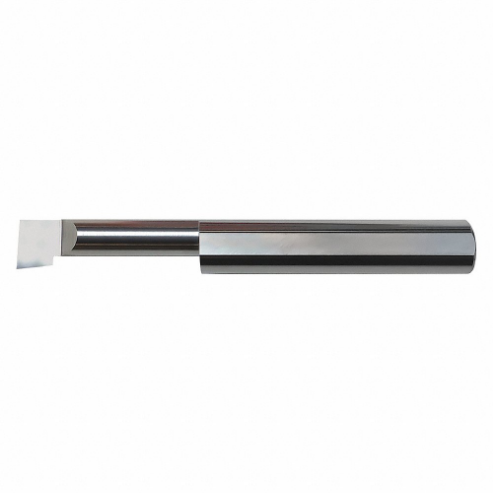

MICRO 100 BBL-200600 Boring Bar, 0.200 In Head Wd, 0.216 In Min Bore, 0.600 In Max Dp, UN
Item: AA7BXGModel: BBL-200600Cross Ref: 15T386
7 In Stock
Ships within 2 days via
5.00% off
€51.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Boring Bar |
| Application | Boring |
| Boring Bar Type | Boring |
| Center To Cutting Tip | 0.075" |
| Cutting Application | Boring |
| Features | Corner Radius Profile, Split Geometry |
| Finish | Uncoated |
| Finish-machining | Bright (Uncoated) |
| Groove Width | 0.15" |
| Head Width | 1/5" |
| Length | 0.175" |
| Max. Bore Depth | 0.6" |
| Min. Bore Dia. | 0.216" |
| Neck Dia. | 0.15" |
| Off Set Point | 0.075" |
| Overall Length | 2 1/2" |
| Product Datasheet | micro-100-bb-050150.pdf |
| Projection | 0.05" |
| Radius | 0.005" to 0.008" |
| Shank Dia. | 1/4" |
| Shank Material | Carbide |
| Shank Type-machining | Straight With Three Flats |
| Side Cutting Edge Angle | 6° |
| Split Length | 0.175" |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 0.64 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 0.64 |
| HS code | 8207600061 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Max. Bore Depth | Min. Bore Dia. | Head Width | Shank Dia. | Finish | Projection | Radius | Neck Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BBL-050150 | 0.15" | 0.055" | 0.05" | 1/8" | Uncoated | 0.012" | 0.003" to 0.005" | 0.038" | €47.45 | |
| BBL-050150G | 0.15" | 0.05" | - | 1/8" | TiN Coating | 0.012" | 0.003" to 0.005" | 0.038" | €52.50 | |
| BBL-050400 | 2/5" | 0.055" | 0.05" | 1/8" | Uncoated | 0.012" | 0.003" to 0.005" | 0.038" | €47.45 | |
| BBL-060150 | 0.15" | 0.07" | 0.06" | 1/8" | Uncoated | 1/64" | 0.003" to 0.005" | 0.045" | €47.45 | |
| BBL-060200 | 0.2" | 0.07" | 0.06" | - | Uncoated | 1/64" | 0.003" to 0.005" | 0.045" | €47.45 | |
| BBL-060300 | 0.3" | 0.06" | - | 1/8" | Uncoated | 0.015" | 0.003" to 0.005" | 0.045" | €47.45 | |
| BBL-080200 | 0.2" | 0.09" | 2/25" | 1/8" | Uncoated | 0.02" | 0.003" to 0.005" | 0.06" | €47.45 |
