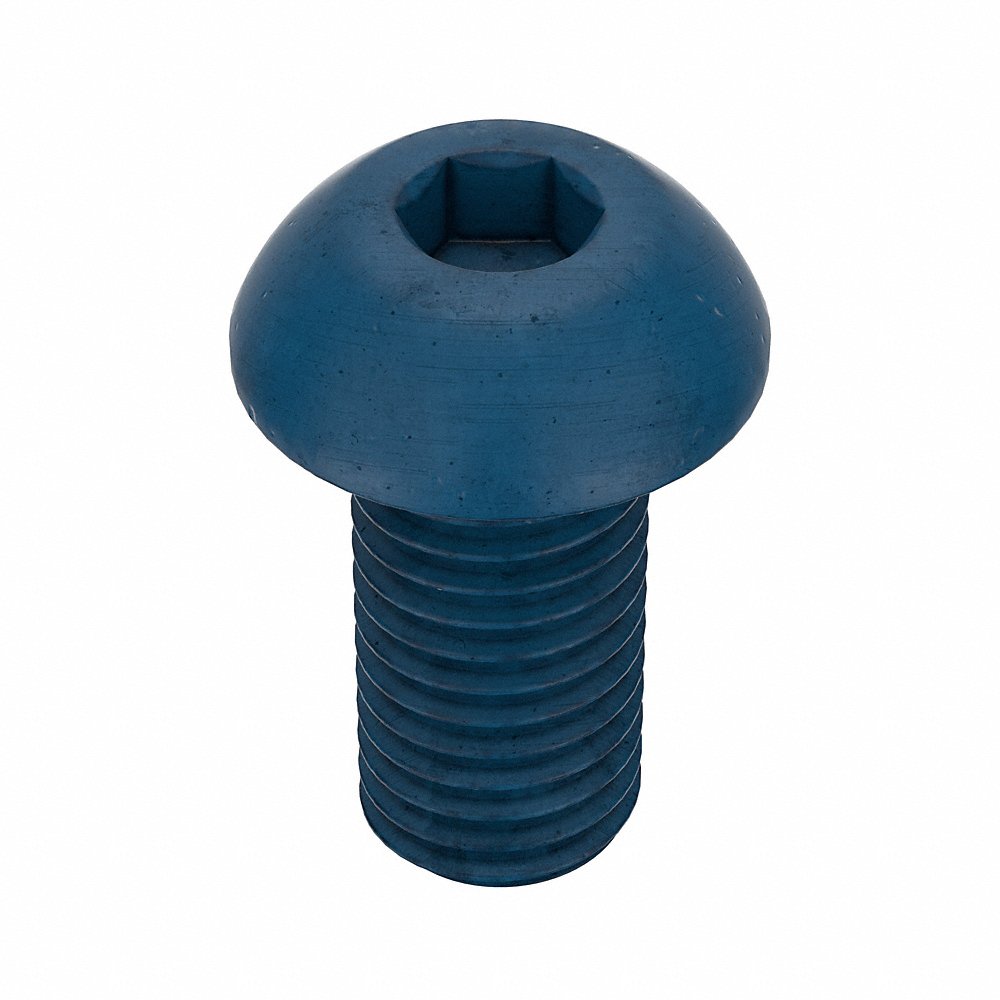

METRIC BLUE UST194873 Metric Socket Head Cap Screw, M12x1.75 Thread Size, Button, 25 mm Lg., Blue
Get it by Monday, Feb 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€55.67 /pkg. of 50
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Metric Socket Head Cap Screw |
| Combined Material & Grade | Grade Steel |
| Dimensional Standards | Iso 7380-1 |
| Display Qty | 50 |
| Drive Size | 8 mm |
| Drive Type | Socket |
| Finish | Blue Phosphate |
| Hardness | Rockwell C32 |
| Head Dia. | 21 mm |
| Head Height | 6.6 mm |
| Head Type | Button |
| Length | 25 mm |
| Material | Steel |
| Material Type | Steel |
| Min. Tensile Strength | 150800 psi |
| Minimum Thread Length | 25 mm |
| Screw Length | 25 mm |
| System Of Measurement | Metric |
| Tensile Strength | 150800 psi |
| Thread Direction | Right Hand |
| Thread Length | 25 mm |
| Thread Size | M12 x 1.75 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 1.4 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 9.53 |
| Ship width (cm) | 6.35 |
| HS code | 7318159000 |
Product Details:
- Self-Locking Element (No)
- Vented Hole Size (Not Vented)
Product Variants
| Product | Model | Thread Size | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Screw Length | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
UST194860 | M3 x 0.5 | 2 mm | 5.7 mm | 1.6 mm | 8 mm | 174000 psi | Rockwell C32-C39 | 8 mm | 50 | €7.61 | |
 |
UST194861 | M3 x 0.5 | 2 mm | 5.7 mm | 1.6 mm | 10 mm | 174000 psi | Rockwell C32-C39 | 10 mm | 50 | €14.13 | |
 |
UST194862 | M3 x 0.5 | 2 mm | 5.7 mm | 1.6 mm | 12 mm | 174000 psi | Rockwell C32-C39 | 12 mm | 50 | €13.57 | |
 |
UST194863 | M3 x 0.5 | 2 mm | 5.7 mm | 1.6 mm | 16 mm | 174000 psi | Rockwell C32-C39 | 16 mm | 50 | €16.73 | |
 |
UST194864 | M4 x 0.7 | 2.5 mm | 7.6 mm | 2.2 mm | 8 mm | 180000 psi | Rockwell C32-C39 | - | 50 | €9.35 | |
 |
UST185175 | M4 x 0.7 | 2.5 mm | 7.6 mm | 2.2 mm | 10 mm | 180000 psi | Rockwell C32-C39 | 10 mm | 25 | €4.71 | |
 |
UST187479 | M4 x 0.7 | 2.5 mm | 7.6 mm | 2.2 mm | 12 mm | 180000 psi | Rockwell C32-C39 | 12 mm | 25 | €5.32 |
