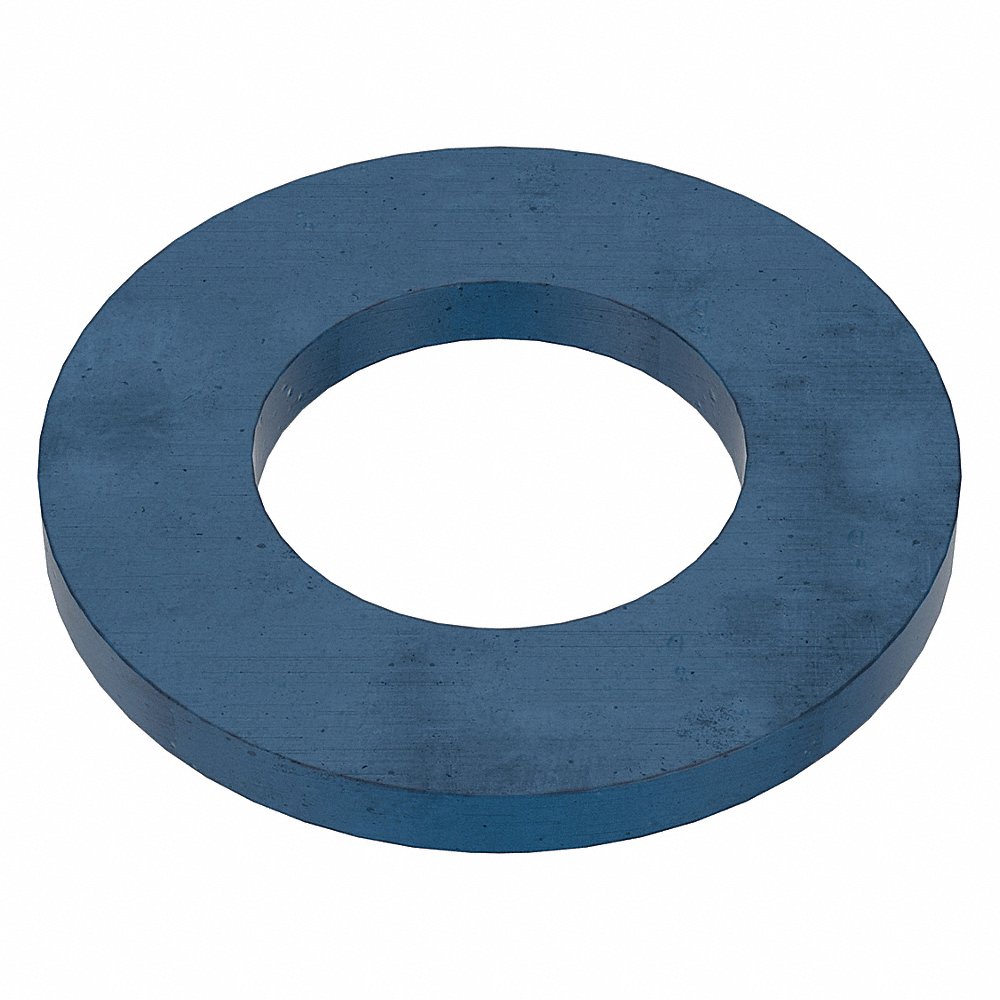

METRIC BLUE UST194163 Flat Washer, M14 Fits Bolt Size, Std, 15 mm I.D., 28 mm O.D., Gr. 8
Item: AF8EYXModel: UST194163Cross Ref: 25GW23
7 In Stock
Ships within 2 days via
10.00% off
€32.03 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer |
| Color | Blue |
| Dimensional Standards | Din 125-1A |
| Finish | Plain |
| Fits Bolt Sizes | M14 |
| Flat Washer Type | Standard |
| For Screw Size | M14 |
| Grade | Grade 8 |
| Hardness | Rockwell 200HV |
| Inside Dia. | 15 mm |
| Material | Alloy Steel |
| Material Grade/class | Grade 200HV |
| Maximum Thickness | 2.5 mm |
| Minimum Thickness | 2.5 mm |
| Outside Dia. | 28 mm |
| Rockwell Hardness | 200Hv |
| System Of Measurement | Metric |
| Thickness | 2.5 mm |
| Thickness Tolerance | -0.2 mm to +0.2 mm |
| Washer Type | Standard Washer |
Shipping Info:
| Ship weight (kg) | 0.78 |
| Ship height (cm) | 8.26 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 5.08 |
| HS code | 7318220000 |
