Product Specifications:
| Item | Fuse |
| Ac Voltage Rating | 800V |
| Ac/dc | AC/DC |
| Amp Range | 0-30A |
| Amps | 30A |
| Body Material | Polyamide |
| Body/insulating Material | Polyamide |
| Connector Type | Pressure Plate |
| Fits Fuse Type | Midget |
| For Fuse Size | 1 1/2" x 13/32" Dia. |
| Frame Type | USM |
| Frequency | 50/60 Hz |
| Fuse Block Design | Finger-Safe |
| Fuse Block Style | Nonrejection |
| Fuse Class | Midget |
| Fuse Installation Method | Clip In |
| Fuse Type | Midget |
| Fuse Ul Class | Midget |
| Height | 58.9 mm |
| Installation Mounting | DIN Rail |
| Length | 78 mm |
| Max. Fuse Rating | 30A |
| Mounting Style | DIN Rail |
| Number Of Poles | 3 |
| Product Datasheet | mersen-ferraz-usm1.pdf |
| Product Group | Fuse Holders |
| Rated Voltage Ac Ul | 800V |
| Rated Voltage Dc Ul | 1000V |
| Rohs Compliant | Yes |
| Short Circuit Current Rating (sccr) | 100 kA |
| Torque Rating | 1.695 N-m |
| Visual Indication | Non Indicating |
| Voltage | 600V |
| Voltage Rating | 800V AC/1000V DC |
| Voltage Type | AC |
| Width | 52.6 mm |
| Wire Range | 14 AWG to 6 AWG |
| Wirie Type | Solid, Stranded |
| Wiring Range | #6 to #14 |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 5.89 |
| Ship length (cm) | 7.8 |
| Ship width (cm) | 5.26 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Ac Voltage Rating | Visual Indication | Amps | Body Material | Connector Type | Voltage | Max. Fuse Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

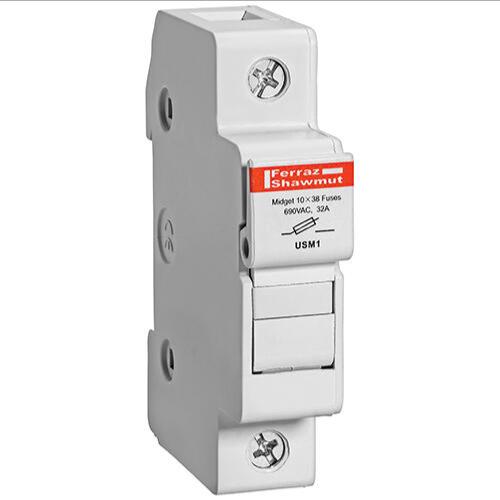

USM1 | 1 | 800V | Non Indicating | 30A | Polyamide | Pressure Plate | 600V | 30A | €43.49 | |
![]() |

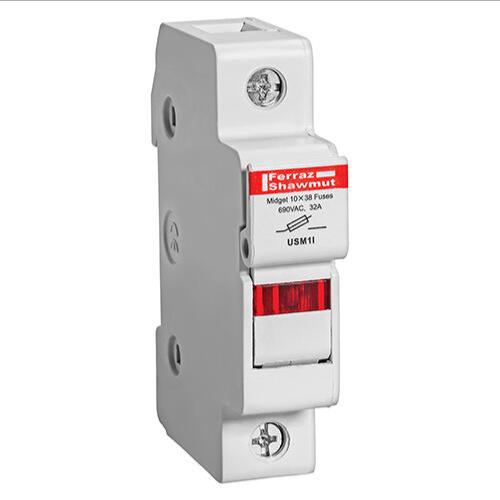

USM1I | 1 | 600V | Indicating | 30A | Polyamide | Pressure Plate | 600V | 30A | €67.82 | |
![]() |

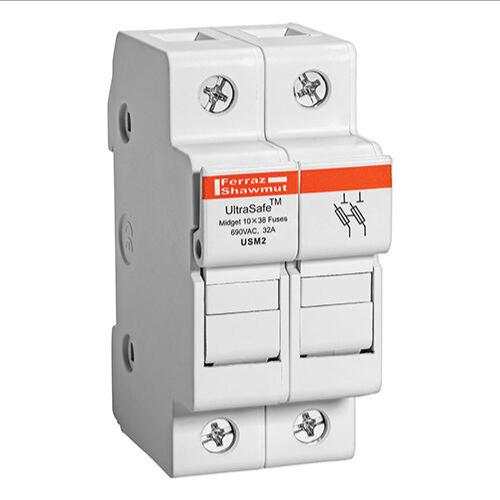

USM2 | 2 | 800V | Non Indicating | 30A | Polyamide | Pressure Plate | 600V | 30A | €34.27 | |
![]() |

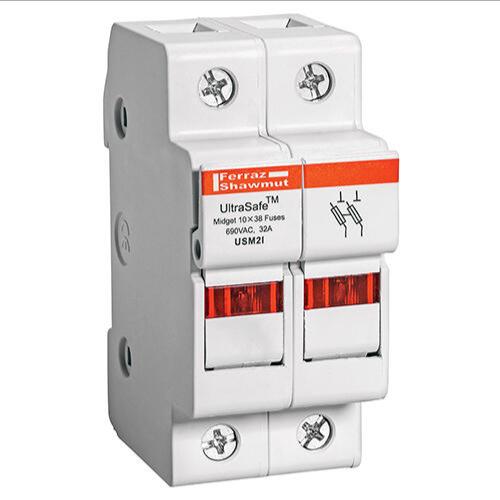

USM2I | 2 | 600V | Indicating | 30A | Polyamide | Pressure Plate | 600V | 30A | €121.12 | |
![]() |

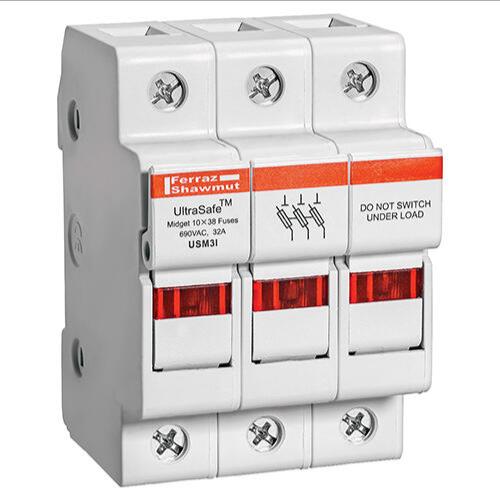

USM3I | 3 | 600V | Indicating | 30A | Polyamide | Pressure Plate | 600V | 30A | €221.07 | |
![]() |

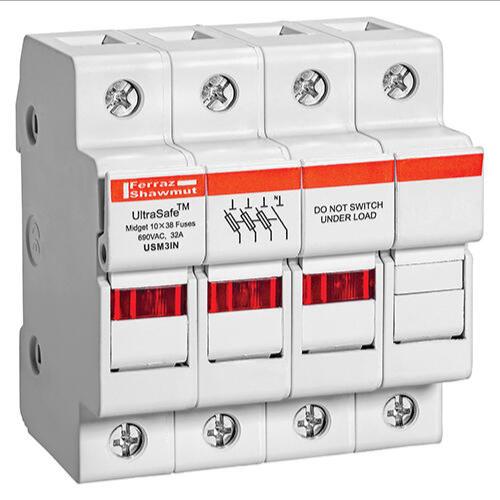

USM3IN | 3 | 600V | Indicating | 30A | Polyamide | Pressure Plate | 600V | 30A | €217.60 | |
![]() |

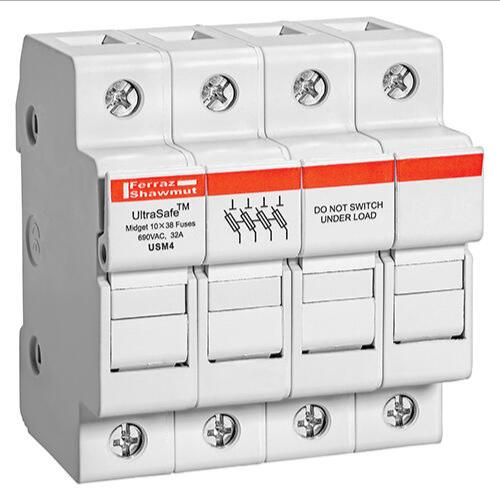

USM4 | 4 | 800V | Non Indicating | 30A | Polyamide | Pressure Plate | 600V | 30A | €114.31 |
Explore Products
- STEEL CITY 3 GC Box Cover, 8-13/16 x 4-11/16 Inch Size
- SCIENTIFIC CUTTING TOOLS TM500-14C 102741 Staggered Thread Mill, Carbide Head Tin, 0.5 Dia, 4 Flutes, 3/4 Steel Shank Dia
- HUBBELL WIRING DEVICE-KELLEMS RM1004PA001 Receptacle, Male, With 1 Feet Cable, 10 A, 4 Pole
- KUNKLE 913BEDM03-KE0600 Safety Relief Valve, Male X Female NPT, 3/4 Inch Inlet Size, Air/Gas, 600 PSI
- PARKER 06L1NFE
- SMC VALVES KQ2W16-03AS Extended Male Elbow 16mm Thread x Tube
- HUB CITY 0220-74767 Bevel Gear Drive, 16 HP, 1 Inch I.D, 1 Inch O.D, Cast Iron
- BOSTON GEAR Y2484 Spur Gear, 24 Diametral Pitch, 20 Deg. Pressure Angle, 84 Teeth, Brass
Explore More
- INGERSOLL-RAND
- KEYSHAFT
- AO SMITH WATER HEATER
- MAHLE
- ACROVYN
- Food Service Trays
- Router Bits
- Strapping Machines
- Incubator Accessories
- Electric Appliance Controls
- OIL SAFE Premium Pump Body Collars
- ANSELL 11-501 Hyflex Cut Resistant Gloves
- ASSOCIATED SPRING RAYMOND CU740 Gas Springs
- DWYER INSTRUMENTS 1211 Series Slack Tube Manometers
- CADDY INDUSTRIAL SALES Clip
- ALLEGRO SAFETY Full Mask Low Pressure Systems
- WHEATON Crimpers
- ENERPAC GA Series Gauge Adapters
- LOUISVILLE FM1400HD Series Fiberglass Twin Front Ladders
Contact us
Contact your account manager right away to get personal advice.
We're available Monday through Friday, from 07:30 until 17:00.

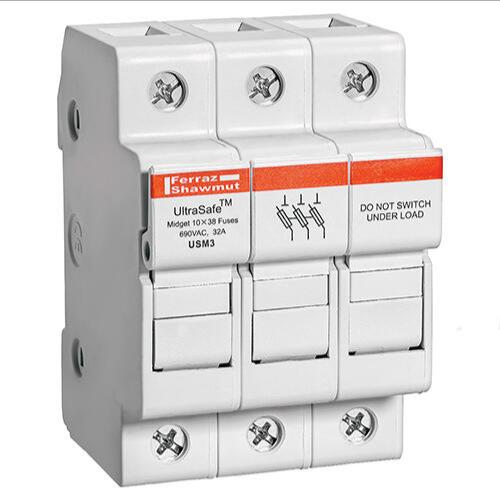

MERSEN FERRAZ USM3 Fuse, 600VAC, 30A, 3 Pole
