MERSEN FERRAZ USGM3IN Fuse Holder, Midget, 600V, 30A, 3 Pole
Get it by Tuesday, Dec 23
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Holder |
| Ac Voltage Rating | 600V AC |
| Ac/dc | AC/DC |
| Amps | 30A |
| Body Material | Polyamide |
| Body/insulating Material | Polyamide |
| Frequency | 50/60 Hz |
| Fuse Class | Midget |
| Fuse Installation Method | Clip In |
| Fuse Type | Midget |
| Height | 55.1 mm |
| Indication System | Yes |
| Indication System Type | LED |
| Installation Mounting | DIN Rail |
| Length | 104.9 mm |
| Max. Fuse Rating | 30A |
| Number Of Poles | 3 |
| Product Datasheet | mersen-ferraz-usgm1.pdf |
| Product Group | Fuse Holders |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 600V |
| Rohs Compliant | Yes |
| Short Circuit Current Rating (sccr) | 200 kA |
| Width | 51.8 mm |
| Wirie Type | Solid, Stranded |
| Wiring Range | #6 to #14 |
Shipping Info:
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 22.23 |
| Ship width (cm) | 11.43 |
Product Details:
- Cage Clamp, Light Indicator, Neutral
Documentation:
Product Variants
| Product | Model | Amps | Number Of Poles | Ac Voltage Rating | Body Material | Max. Fuse Rating | Height | Fuse Type | Fuse Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
USGM1 | 30A | 1 | 750V AC | Polyamide | 30A | 55.1 mm | Midget | Midget | €54.53 | |
 |

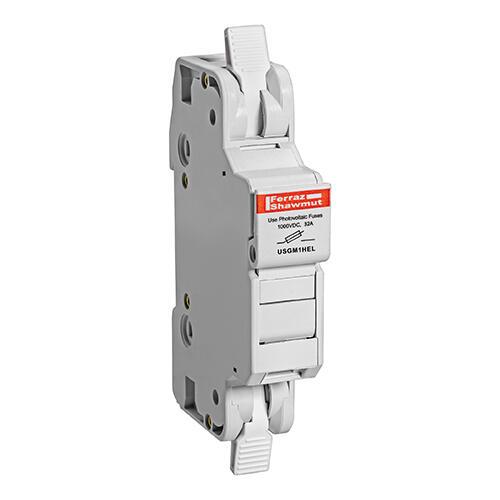

USGM1HEL | 32A | 1 | - | Polyamide | 30A | 55.1 mm | Midget | Midget | €54.53 | |
 |

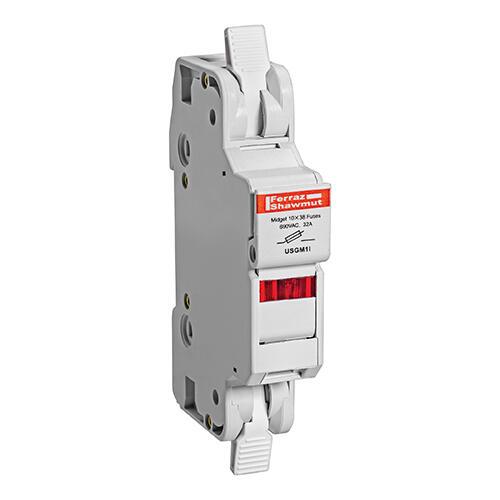

USGM1I | 30A | 1 | 600V AC | Polyamide | 30A | 55.1 mm | Midget | Midget | €86.89 | |
 |
USGM1I-DC24 | 30A | 1 | - | Polyamide | 30A | 55.1 mm | Midget | Midget | €87.63 | |
 |
USGM1IHEL | 32A | 1 | - | Polyamide | 30A | 55.1 mm | Midget | Midget | €87.63 | |
 |
USGM2 | 30A | 2 | 750V AC | Polyamide | 30A | 55.1 mm | Midget | - | €119.76 | |
 |

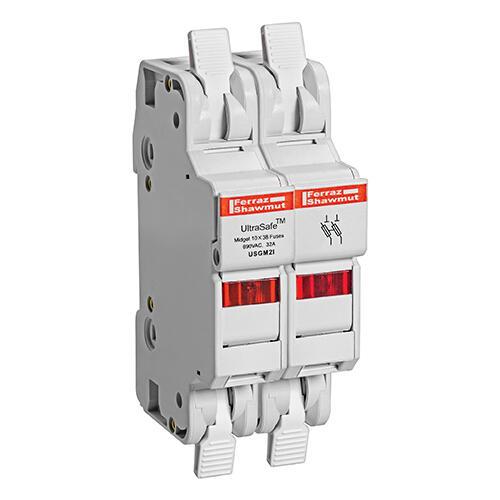

USGM2I | 30A | 2 | 600V AC | Polyamide | 30A | 55.1 mm | Midget | Midget | €177.93 |
