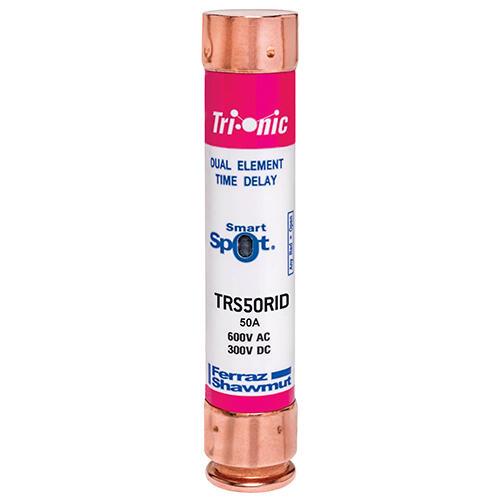

MERSEN FERRAZ TRS50RID Time Delay Fuse, 600V, 50A, Class RK5
Item: CH6CJHModel: TRS50RIDCross Ref: 4YZX1
7 In Stock
Ships within 2 days via
10.00% off
€52.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Time Delay Fuse |
| Ac Max I.r./breaking Capacity I1 | 200 kA |
| Ac Voltage | 600V AC |
| Ac/dc | AC/DC |
| Amps | 50A |
| Body Material | Polyester |
| Body Style | Cylindrical |
| Body/insulating Material | Polytube |
| Class | Class RK5 |
| Compatible Fuse Block Series | 2Hkrfb, 6Hkrfb |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Dc Voltage Rating | 300V DC |
| Diameter | 27 mm |
| Element | Dual |
| Equivalent Brand And Series | Bussmann Frs-R-Id, Littelfuse Flsr-Id, Mersen Trs-Rid |
| Equivalent Series | Flsr-Id, Frs-R-Id, Trs-Rid |
| Fits Fuse Block Style | Rejection |
| Frequency | 50/60 Hz |
| Fuse Class | Class RK5 |
| Fuse Size | 5 1/2" x 1 1/16" |
| Indication System | Yes |
| Indication System Type | Smartspot |
| Interrupt Rating | 200 kA at 600V AC, 20 kA at 300V DC |
| Length | 139.7 mm |
| Mounting | Clip |
| Product Datasheet | mersen-ferraz-tr110r.pdf |
| Product Group | Low Voltage UL/CSA Fuses |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 300V |
| Series | TRS-RID Series |
| Speed | Time Delay |
| Speed Characteristic | Time Delay |
| Speed Type | Time Delay |
| Standards | Csa, Ul |
| Visual Indication | Indicating |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 14.27 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 5.56 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Diameter | Body Material | Body Style | Visual Indication | Dc Voltage Rating | Dc Voltage | Fuse Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TRS100RID | 100A | 33.4 mm | Polyester | Blade | Indicating | 600V DC | - | - | €101.21 | |
 |
TRS10R-3PK | 10A | 20.7 mm | Polytube | - | - | - | - | - | €120.39 | |
 |
TRS10RID | 10A | 20.7 mm | Polyester | Cylindrical | Indicating | 600V DC | - | - | €33.36 | |
 |
TRS1-1/4R | 1.25A | 20.7 mm | Polyester | Cylindrical | Non Indicating | 600V DC | - | - | €18.05 | |
 |
TRS110RID | 110A | 46.1 mm | Polyester | Blade | Indicating | 600V DC | - | - | €208.10 | |
 |
TRS125RID | 125A | 46.1 mm | Polyester | Blade | Indicating | 600V DC | - | - | €219.78 | |
 |
TRS12RID | 12A | 20.7 mm | Polyester | Cylindrical | Indicating | 600V DC | - | - | €35.57 |
