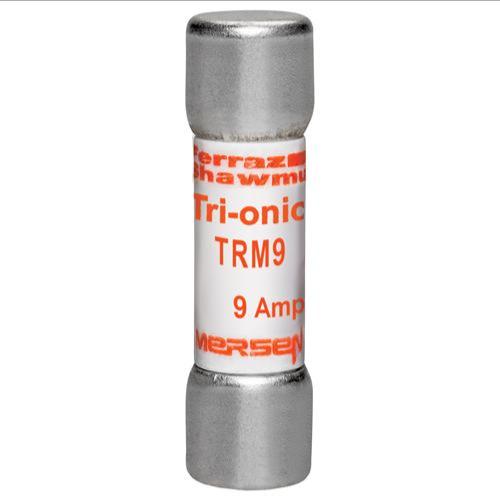

MERSEN FERRAZ TRM9 Time Delay Midget Fuse, 250V, 9A
Item: CH6CEZModel: TRM9
7 In Stock
Ships within 2 days via
10.00% off
€10.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Time Delay Fuse |
| Ac Max I.r./breaking Capacity I1 | 10 kA |
| Ac Voltage | 250V AC |
| Ac/dc | AC |
| Amps | 9A |
| Body Material | GMG |
| Body/insulating Material | GMG |
| Class | Midget |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Diameter | 10.3 mm |
| Finish | Tin Plated |
| Frequency | 50/60 Hz |
| Fuse Class | Midget |
| Fuse Type | Midget |
| Length | 38.1 mm |
| Mounting | Clip |
| Product Datasheet | mersen-ferraz-trm1.pdf |
| Product Group | Low Voltage UL/CSA Fuses |
| Rohs Compliant | Yes |
| Speed Characteristic | Time Delay |
| Speed Type | Time Delay |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 5.38 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 1.04 |
Documentation:
Product Variants
| Product | Model | Amps | Diameter | Interrupt Rating | Fuse Type | Body Material | Body Style | Amps Rating | Mounting | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TRM1 | 1A | 0.41" | 10 kA at 250V AC | Time Delay/Slow Blow | - | Cartridge Fuses | 1A | Clip | 1 | €10.51 | |
 |
TRM1/10 | 0.1A | 10.3 mm | - | Midget | GMG | - | - | Clip | 10 | €222.03 | |
 |
TRM1/2 | 0.5A | 10.3 mm | - | Midget | GMG | - | - | Clip | 1 | €10.38 | |
 |
TRM1/4 | 0.25A | 10.3 mm | - | Midget | GMG | - | - | Clip | 1 | €11.86 | |
 |
TRM10 | 10A | 0.41" | 10 kA at 250V AC | Time Delay/Slow Blow | GMG | Cartridge Fuses | 10A | Clip | 1 | €11.56 | |
 |
TRM1-1/8 | 1.125A | 10.3 mm | - | Midget | GMG | - | - | Clip | 1 | €10.38 | |
 |
TRM12 | 12A | - | - | - | - | - | - | - | 1 | €6.31 |
