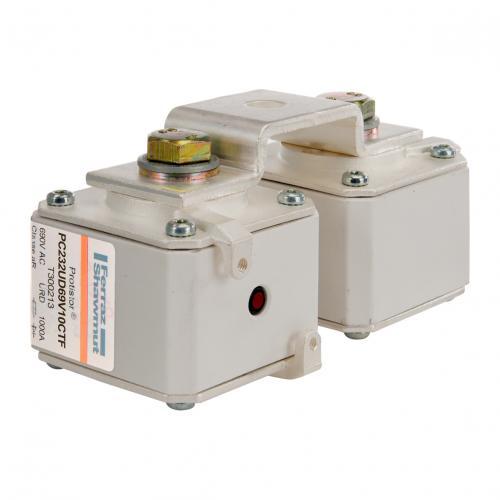

MERSEN FERRAZ T300213 PC232UD69V10CTF Fuse, 1000A
Get it by Tuesday, Sep 1
€2,423.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac/dc | AC |
| Amps | 1000A |
| Body/insulating Material | Ceramic |
| Clearing I2t @ Rated Voltage | 590 sq. kA sec. |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Flush Ends |
| Finish | Silver Plated |
| Fuse Size | 2" x 32" |
| Height | 65 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 76.6 mm |
| Melting I2t | 111 sq. kA sec. |
| Mounting | Bolted |
| Power Dissipation @ Rated Amps Value | 165 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 690V |
| Rated Voltage Ac Ul | 700V |
| Rohs Compliant | Yes |
| Speed Characteristic | AR |
| Width | 136.9 mm |
Shipping Info:
| Ship weight (kg) | 1.32 |
| Ship height (cm) | 7.01 |
| Ship length (cm) | 20.5 |
| Ship width (cm) | 9.19 |
Product Variants
| Product | Model | Amps | Height | Connection/terminal Material | Ac Max. I R Breaking Capacity I1 | Fuse Size | Rated Voltage Ac Ul | Power Dissipation @ Rated Amps Value | Clearing I2t @ Rated Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D300268 | 1250A | 78.5 mm | Brass | 170 kA | 2" x 33" | 700V | 230 W | 850 sq. kA sec. | €2,344.19 | |
 |
E300269 | 1400A | 78.5 mm | Brass | 170 kA | 2" x 33" | 700V | 240 W | 1200 sq. kA sec. | €2,582.43 | |
 |
F300270 | 1600A | 78.5 mm | Brass | 170 kA | 2" x 33" | 700V | 250 W | 1900 sq. kA sec. | €2,683.89 | |
|
G300087 | 1400A | 65 mm | Brass | 170 kA | 2" x 32" | 700V | 200 W | 1600 sq. kA sec. | €2,423.00 | |
 |
L301977 | 3000A | 78.5 mm | Copper | 150 kA | 2" x 33" | 600V | 440 W | 9000 sq. kA sec. | €2,942.75 | |
 |
N302232 | 2800A | 78.5 mm | Copper | 160 kA | 2" x 33" | 650V | 330 W | 8800 sq. kA sec. | €3,949.18 | |
 |
P302233 | 2500A | 78.5 mm | Copper | 160 kA | 2" x 33" | 650V | 310 W | 6600 sq. kA sec. | €2,746.07 |
