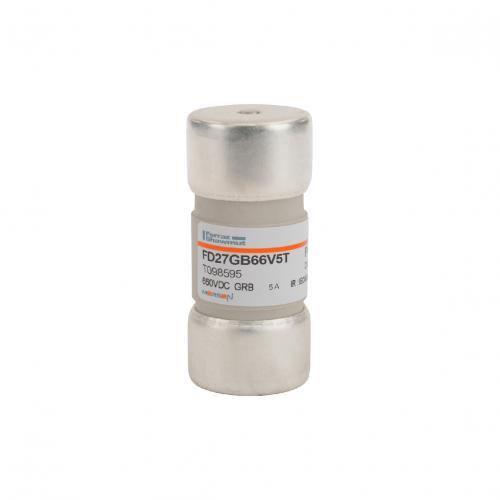

MERSEN FERRAZ T098595 Fuse, 660V, 5A
Get it by Tuesday, Aug 18
€5,109.19 /pkg. of 10
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac/dc | DC |
| Amps | 5A |
| Body/insulating Material | Ceramic |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Design Details | Grb |
| Dia. | 27 mm |
| Finish | Silver Plated |
| Fuse Size | 27" x 60" |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 60.3 mm |
| Max. Rated Breaking Capacity Dc | 50 kA |
| Mounting | Clip |
| Power Dissipation @ Rated Amps Value | 1.1 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Dc Iec | 660V |
| Rohs Compliant | Yes |
| Speed Characteristic | GR |
Shipping Info:
| Ship weight (kg) | 0.79 |
| Ship height (cm) | 3 |
| Ship length (cm) | 13.79 |
| Ship width (cm) | 12.29 |
Product Variants
| Product | Model | Amps | Power Dissipation @ Rated Amps Value | Mounting | Body/insulating Material | Connection/terminal Type | Connection/terminal Material | Speed Characteristic | Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
H098585 | 0.8A | 0.4 W | Clip | Ceramic | Ferrule | Copper | GR | 27 mm | 10 | €6,815.68 | |
 |
J098586 | 1A | 0.4 W | Clip | Ceramic | Ferrule | Copper | GR | 27 mm | 10 | €6,854.76 | |
 |
L075703 | 12A | 2.4 W | Clip | Ceramic | Ferrule | Copper | GR | 27 mm | 10 | €6,941.22 | |
 |
L076301 | 8A | 2 W | Clip | Ceramic | Ferrule | Copper | GR | 27 mm | 10 | €7,264.89 | |
 |
M075635 | 25A | 4.7 W | Clip | Ceramic | Ferrule | Copper | GR | 27 mm | 10 | €7,264.89 | |
 |
M076302 | 10A | 2.3 W | Clip | Ceramic | Ferrule | Copper | GR | 27 mm | 10 | €7,264.89 | |
 |
N076303 | 16A | 3.3 W | Clip | Ceramic | Ferrule | Copper | GR | 27 mm | 10 | €7,195.98 |
