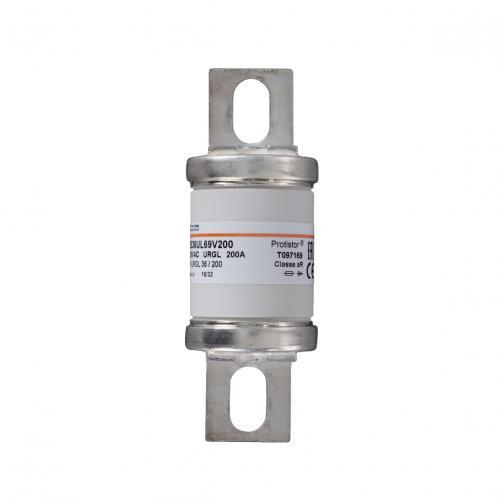

MERSEN FERRAZ T097169 Fuse, 200A
Get it by Tuesday, Sep 1
€1,229.34 /pkg. of 3
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac Max. I R Breaking Capacity I1 | 200 kA |
| Ac/dc | AC |
| Amps | 200A |
| Body/insulating Material | Ceramic |
| Clearing I2t @ Rated Voltage | 25500 sq. A sec. |
| Connection/terminal Material | Copper |
| Connection/terminal Type | L Brackets |
| Design Details | Grb |
| Dia. | 39.7 mm |
| Fuse Size | 36" x 55" |
| Length | 82 mm |
| Melting I2t | 5350 sq. A sec. |
| Mounting | Bolted |
| Power Dissipation @ Rated Amps Value | 35.7 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 690V |
| Rohs Compliant | Yes |
| Speed Characteristic | AR |
Shipping Info:
| Ship weight (kg) | 1.29 |
| Ship height (cm) | 6.91 |
| Ship length (cm) | 15.01 |
| Ship width (cm) | 14.61 |
Product Variants
| Product | Model | Amps | Fuse Size | Power Dissipation @ Rated Amps Value | Clearing I2t @ Rated Voltage | Rated Voltage Ac Iec | Melting I2t | Dia. | Rated Voltage Ac Ul | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A075900 | 40A | 17" x 49" | 10.5 W | 1080 sq. A sec. | 690V | 98 sq. A sec. | 18.5 mm | 700V | 1 | €521.32 | |
 |
A097175 | 280A | 36" x 55" | 38 W | 145000 sq. A sec. | 690V | 29100 sq. A sec. | 39.7 mm | - | 3 | €1,608.87 | |
 |
A099958 | 90A | 2" x 17" x 49" | 22.8 W | 5130 sq. A sec. | 690V | 252 sq. A sec. | - | 700V | 5 | €1,920.40 | |
|
A220961 | 32A | 17" x 49" | 9 W | 330 sq. A sec. | 690V | 52.5 sq. A sec. | 18.5 mm | 700V | 10 | €1,218.36 | |
|
B075901 | 45A | 17" x 49" | 11.4 W | 1280 sq. A sec. | 690V | 130 sq. A sec. | 18.5 mm | 700V | 3 | €1,689.38 | |
|
B097176 | 315A | 36" x 55" | 42.6 W | 180000 sq. A sec. | 690V | 38100 sq. A sec. | 39.7 mm | - | 3 | €1,608.87 | |
 |
B099959 | 110A | 2" x 17" x 49" | 26.5 W | 7840 sq. A sec. | 690V | 850 sq. A sec. | - | 700V | 5 | €1,405.33 |
