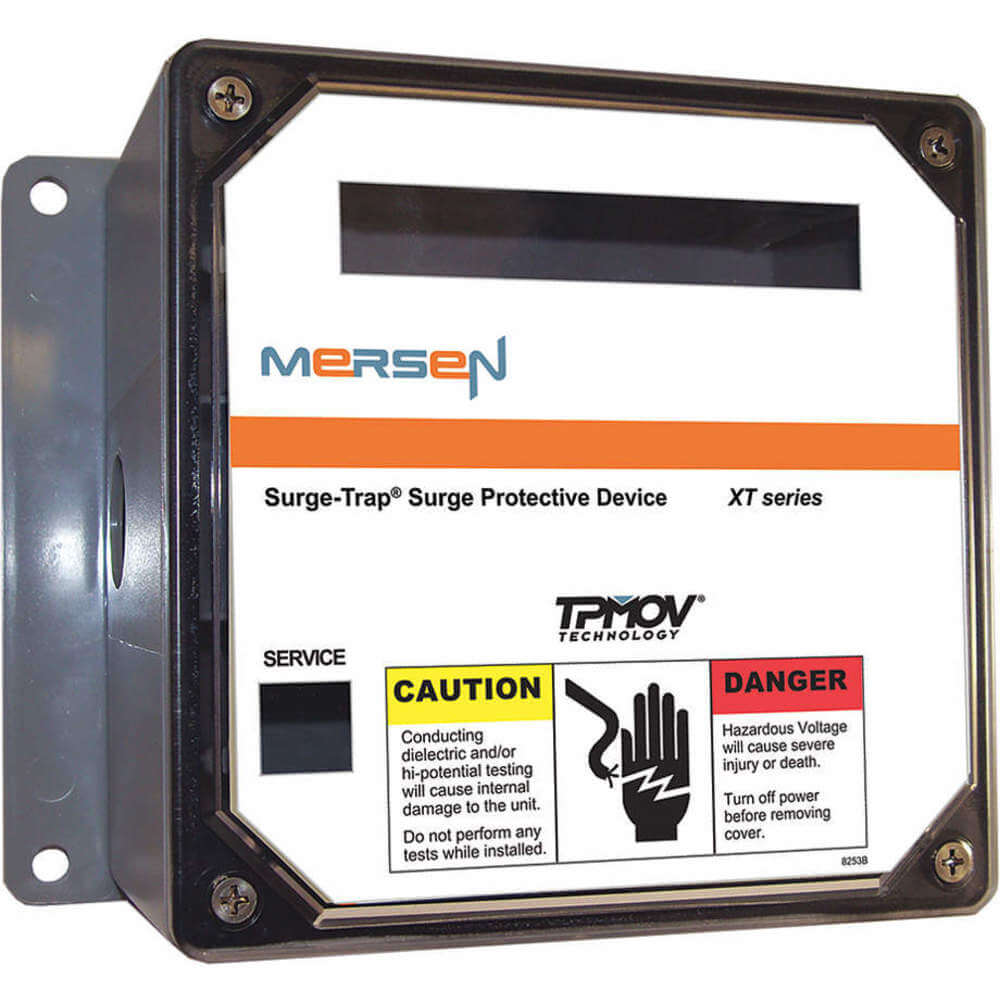

MERSEN FERRAZ STXT04S1004XA Surge Protector 3p 20ka Type1
Item: AA8MQAModel: STXT04S1004XA
7 In Stock
Ships within 2 days via
5.00% off
€2,943.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Surge Protection Device |
| Amps | 100 kA |
| Basic Material | Nonmetallic |
| Chase Nipple Size | 3/4" |
| Color | Gray |
| Depth | 4" |
| Enclosure Material | Polycarbonate |
| Enclosure Nema Rating | 4X |
| Enclosure Type | NEMA 4X |
| Filter Type | Filtering |
| Filtering | Yes |
| Included | Emi/Rfi Filter For Cleaner Attenuation |
| Ip Rating | 65 |
| Length | 7 2/5" |
| Lightning Impulse Amps | 100 kA |
| Location Type | Type 1 |
| Max. Continuing Operating Voltage | 320V |
| Max. Continuing Operating Voltage | 320V AC |
| Max. Operating Temp. | 185°F |
| Max. Surge Amps Per Mode | 100 kA |
| Max. Surge Amps Per Phase | 100 kA |
| Max. Surge Current Per Mode | 50kA |
| Max. Surge Current Per Phase | 100kA |
| Min. Operating Temp. | -40°F |
| Modes Of Protection | L-L , L-G , L-N , N-G |
| Modes Of Protection | L G, L L, L N, N G |
| Modular | No |
| Mounting Style | Screw |
| No. Of Poles | 3 |
| No. Of Wires | 4 |
| Noise Attenuation | -50dB @ 10kHz to 100MHz |
| Noise Reduction Rating Nrr | -50 dB |
| Nominal Discharge Amps | 20 kA |
| Nominal Discharge Current | 20kA |
| Phase | 3 |
| Short Circuit Amps | 200 kA |
| Short Circuit Current Rating | 200kA |
| System Connection | Parallel |
| Type | Surge Trap |
| Ul Spd Type | Type 1 |
| Voltage | 277/480V AC Wye |
| Voltage Protection Rating | 1200V (L-G, L-N, N-G), 2000V (L-L) |
| Voltage Protection Rating | L-N 1200V , L-G 1200V , N-G 1200V , L-L 2000V |
| Width | 7.08" |
| Wire | 4 |
| Wire Gauge | 8 AWG |
Shipping Info:
| Ship weight (kg) | 1.98 |
| Ship height (cm) | 14.48 |
| Ship length (cm) | 30.73 |
| Ship width (cm) | 26.67 |
| HS code | 8537109070 |
| Country of Origin | US |
