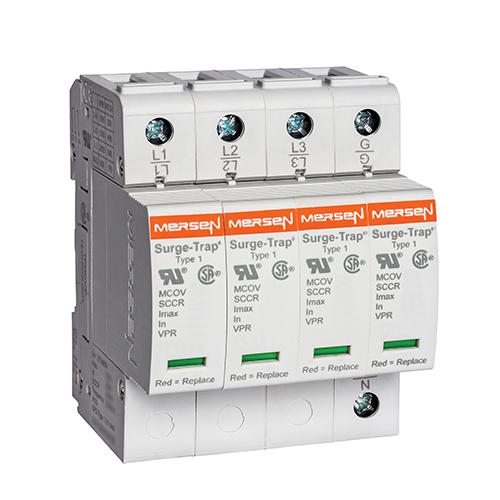

MERSEN FERRAZ STP600YN07 Surge Protection Device, Plugable, 600V, 75kA, 4 Pole
Item: CH6BTCModel: STP600YN07Cross Ref: 491G74
7 In Stock
Ships within 2 days via
10.00% off
€658.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Surge Protection Device |
| Ac/dc | AC |
| Amps | 75 kA |
| Basic Material | Nonmetallic |
| Body Material | Polyethelene Terphthalate |
| Color | Gray |
| Connection/terminal Type | Box |
| Depth | 2.81" |
| Enclosure Material | Polyethylene Terephthalate |
| Enclosure Nema Rating | 1 |
| Filtering | No |
| Frequency | 50/60 Hz |
| Height | 71.4 mm |
| Installation Mounting | DIN Rail |
| Ip Rating | 20 |
| Length | 106.4 mm |
| Lightning Impulse Current | 75 kA |
| Max. Continuing Operating Voltage | 275/420/695/840V AC |
| Max. Operating Temp. | 185°F |
| Max. Surge Current Per Mode | 75 kA |
| Max. Surge Current Per Phase | 75 kA |
| Mcov L-g | 695V |
| Mcov L-l | 840V |
| Mcov L-n | 420V |
| Mcov N-g | 275V |
| Min. Operating Temp. | -40°F |
| Modes Of Protection | L G, L L, L N, N G |
| Modular | Yes |
| Mounting Style | DIN Rail |
| Mov Response Time | 0 nsec. To 25 nsec. |
| Nominal Discharge Current | 10 kA |
| Number Of Poles | 4 |
| Number Of Wires | 5 |
| Phase | Three |
| Product Datasheet | mersen-ferraz-sp07u175.pdf |
| Product Group | Power Line SPDS |
| Protection Modes | L-N |
| Rated Torque | 35.4 Lbs.In. |
| Rated Torque | 35.4 lbs.-in. |
| Replacement Plug L1 | SP07U420 |
| Replacement Plug L2 | SP07U420 |
| Replacement Plug L3 | Sp07U420 |
| Replacement Plug N-g | SP07U275 |
| Rohs Compliant | Yes |
| Short Circuit Current Rating | 200 kA |
| Standards | Ansi/Ul 1449 4Th Edition, Ansi/Ieee C62.41.1, C62.41.2, C62.45, Rohs Compliant, Type 1 |
| System Configuration | 3 Phase Wye |
| System Connection | Parallel |
| Torque Rating | 4 N-m |
| Ul Spd Type | Type 1, Type 1 Component Assembly |
| Voltage | 347/600V AC |
| Voltage Protection Rating | 1500V (L-N), 2000V (L-G), 2500V (L-L), 800V (N-G) |
| Vpr L-g | 2000V |
| Vpr L-l | 2500V |
| Vpr L-n | 1500V |
| Vpr N-g | 800V |
| Width | 70.1 mm |
| Wire Gauge | 14 AWG to 4 AWG |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 7.14 |
| Ship length (cm) | 10.64 |
| Ship width (cm) | 7.01 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Number Of Wires | Phase | Voltage | Modes Of Protection | Height | Nominal Discharge Current | Voltage Protection Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SP07U175 | 1 | 2 | - | - | - | 45 mm | 20 kA | - | - | RFQ
|
|
SP07U275 | 1 | 2 | - | - | - | 45 mm | 20 kA | - | €90.44 | |
|
SP07U320 | 1 | 2 | - | - | - | 45 mm | 20 kA | - | - | RFQ
|
|
SP07U420 | 1 | 2 | - | - | - | 45 mm | 20 kA | - | €120.65 | |
|
SP07U550 | 1 | 2 | - | - | - | 45 mm | 20 kA | - | €189.99 | |
 |
STP120P07 | 1 | 2 | Single | 120V AC | L N | 71.4 mm | 20 kA | 600V (L-N) | €201.07 | |
 |
STP120P07M | 1 | 2 | Single | 120V AC | L N | 71.4 mm | 20 kA | 600V (L-N) | €247.34 |
