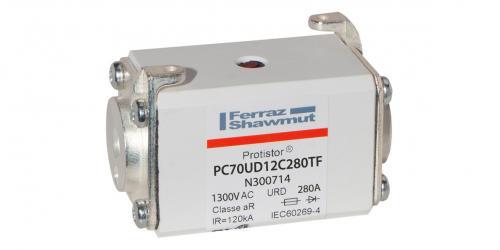

MERSEN FERRAZ N300714 PC70UD12C280TF Fuse, 280A
Get it by Friday, Aug 28
€2,414.89 /pkg. of 3
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac Max. I R Breaking Capacity I1 | 150 kA |
| Ac/dc | AC |
| Amps | 280A |
| Body/insulating Material | Ceramic |
| Clearing I2t @ Rated Voltage | 106000 sq. A sec. |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Flush Ends |
| Finish | Silver Plated |
| Fuse Size | 70 |
| Height | 49.5 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 74 mm |
| Melting I2t | 14200 sq. A sec. |
| Mounting | Bolted |
| Power Dissipation @ Rated Amps Value | 61 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 1200V |
| Rated Voltage Ac Ul | 1300V |
| Speed Characteristic | AR |
| Width | 39.8 mm |
Shipping Info:
| Ship weight (kg) | 1.01 |
| Ship height (cm) | 5.51 |
| Ship length (cm) | 13.31 |
| Ship width (cm) | 8.51 |
Product Variants
| Product | Model | Amps | Mounting | Connection/terminal Type | Connection/terminal Material | Ac Max. I R Breaking Capacity I1 | Fuse Size | Rated Voltage Ac Ul | Power Dissipation @ Rated Amps Value | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A300541 | 200A | Bolted | Din 110 Blades | Copper | 126 kA | 70 | 1300V | 56 W | 3 | €2,265.91 | |
 |
A300656 | 160A | Bolted | Slotted Blades | Copper | 200 kA | 70 | 1300V | 45 W | 3 | €2,067.87 | |
 |
A301024 | 350A | Bolted | Flush Ends | Brass | 150 kA | 70 | 1200V | 68 W | 1 | €726.95 | |
 |
A301185 | 63A | Clip | Plain Blades | Copper | 126 kA | 72 | 1300V | 26 W | 1 | €699.33 | |
 |
B300542 | 250A | Bolted | Din 110 Blades | Copper | 126 kA | 70 | 1300V | 61 W | 1 | €755.30 | |
 |
B300657 | 200A | Bolted | Slotted Blades | Copper | 200 kA | 70 | 1300V | 56 W | 1 | €689.29 | |
 |
C300543 | 315A | Bolted | Din 110 Blades | Copper | 150 kA | 70 | 1300V | 72 W | 3 | €2,357.94 |
