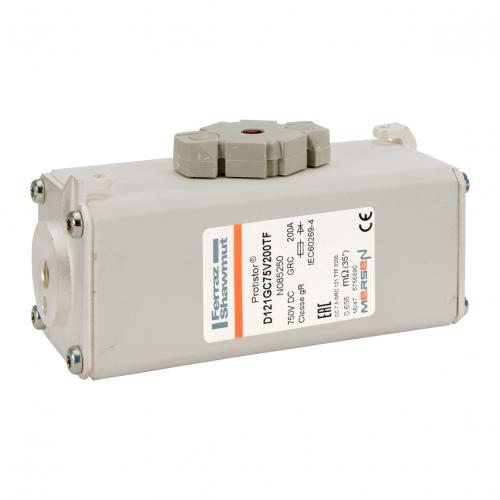

MERSEN FERRAZ N085250 Fuse, 750V, 200A
Get it by Thursday, Aug 20
€2,625.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac/dc | DC |
| Amps | 200A |
| Body/insulating Material | Ceramic |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Flush Ends |
| Design Details | Grc |
| Finish | Silver Plated |
| Fuse Size | 121 |
| Height | 55 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 131 mm |
| Max. Rated Breaking Capacity Dc | 100 kA |
| Melting I2t | 11.85 sq. kA sec. |
| Mounting | Bolted |
| Power Dissipation @ Rated Amps Value | 37.5 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Dc Iec | 750V |
| Rohs Compliant | Yes |
| Speed Characteristic | GR |
| Width | 51 mm |
Shipping Info:
| Ship weight (kg) | 0.87 |
| Ship height (cm) | 5.99 |
| Ship length (cm) | 19.99 |
| Ship width (cm) | 11 |
Product Variants
| Product | Model | Amps | Height | Connection/terminal Type | Connection/terminal Material | Fuse Size | Rated Voltage Dc Iec | Design Details | Power Dissipation @ Rated Amps Value | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
B098556 | 630A | 77 mm | Open Slot Blades | Copper | 123 | 750V | Grb | - | €3,269.78 | |
 |
G220944 | 800A | 77 mm | Open Slot Blades | Copper | 123 | 660V | Grb | - | €7,230.12 | |
|
J220946 | 800A | 77 mm | Flush Ends | Brass | 123 | 660V | Grb | - | €3,176.48 | |
 |
L089388 | 400A | 63 mm | Open Slot Blades | Copper | 122 | 750V | Grc | 74.5 W | €2,723.73 | |
 |
L220948 | 1600A | 73 mm | Flush Ends | Brass | 2" x 123" | 660V | Grb | - | €8,562.22 | |
 |
M085203 | 250A | 55 mm | Open Slot Blades | Copper | 121 | 750V | Grc | 46.7 W | €2,037.10 | |
 |
M085249 | 315A | 63 mm | Flush Ends | Brass | 122 | 750V | Grc | 58 W | - | RFQ
|
