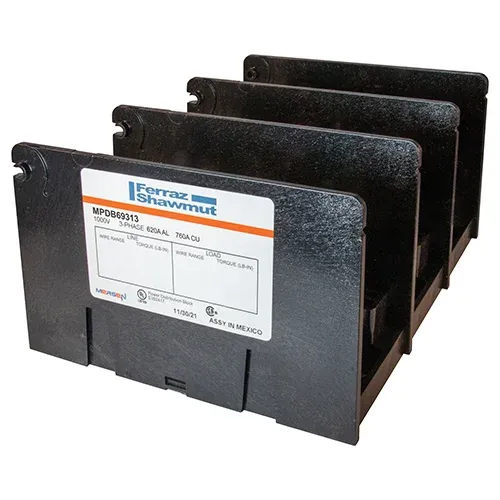

MERSEN FERRAZ MPDB69313 Power Distribution Box, Large, 1000V, 760A, 3 Pole, Aluminium
Get it by Tuesday, Dec 23
€822.46 /pkg. of 2
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Power Distribution Block |
| Ac Voltage Rating | 1000V |
| Ac/dc | AC/DC |
| Ampere Rating (al) | 620A |
| Ampere Rating (cu) | 760A |
| Body Material | GFPC |
| Body/insulating Material | Glass Filled Polycarbonate |
| Connector Material | Aluminum |
| Connector Material Finish | Tin Plated |
| Connector Type | Box |
| Frequency | 50/60 Hz |
| Height | 90.2 mm |
| Installation Mounting | Direct Screw Mount |
| Length | 144.8 mm |
| Number Of Poles | 3 |
| Primary Hex/screw Size | 13/16"-16 x 1.06 |
| Primary Hole Diameter | 22/25" |
| Primary Number Of Openings Per Pole | 2 |
| Primary Torque Rating | 500-#4 500 |
| Primary Wire Range | #4 AWG to 500 kcmil |
| Product Datasheet | mersen-ferraz-mpdbc6263.pdf |
| Product Group | Power Distribution Blocks |
| Rated Voltage Ac Ul | 1000V |
| Rated Voltage Dc Ul | 1000V |
| Rohs Compliant | Yes |
| Secondary Hex/screw Size | 1/2"-20 |
| Secondary Hex/screw Size Thread Length | 3/4" |
| Secondary Hole Diameter | 14/25" |
| Secondary Number Of Openings Per Pole | 4 |
| Secondary Torque Rating | 4/0-#3 150, #4 100, #6 80 |
| Secondary Wire Range | 4/0 AWG to #6 |
| Short Circuit Rating (class Cc) | 100 Ka With 30A Fuse |
| Short Circuit Rating (class G) | 100 Ka With 60A Fuse |
| Short Circuit Rating (class J) | 100 kA With 600A Fuse |
| Short Circuit Rating (class L) | 100 kA With 800A Fuse |
| Short Circuit Rating (class Rk1) | 100 kA With 600A Fuse |
| Short Circuit Rating (class Rk5) | 100 kA With 600A Fuse |
| Short Circuit Rating (class T) | 100 kA With 800A Fuse |
| Short Circuit Rating (standalone) | 10 kA |
| Width | 200.4 mm |
Shipping Info:
| Ship weight (kg) | 2.43 |
| Ship height (cm) | 9.02 |
| Ship length (cm) | 14.48 |
| Ship width (cm) | 20.04 |
Documentation:
Product Variants
| Product | Model | Number Of Poles | For Conductor Material | Line Connections/pole | Load Connections/pole | For Maximum Line Wire Size | For Maximum Load Wire Size | Height | Connector Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MPDBC6263 | 1 | - | - | - | - | - | 2 mm | - | 1 | €6.47 | |
 |
MPDBC6667 | 1 | - | - | - | - | - | 2 mm | - | 1 | €10.36 | |
 |
MPDBC6869 | 1 | - | - | - | - | - | 2 mm | - | 1 | €17.68 | |
 |
MPDB63101 | 1 | Aluminum | 1 | 1 | 4 AWG | 4 AWG | 71.4 mm | Aluminum | 1 | €11.13 | |
 |
MPDB63131 | 1 | Aluminum | 1 | 4 | 2/0 AWG | 4 AWG | 71.4 mm | Aluminum | 1 | €18.98 | |
 |
MPDB63132 | 2 | Aluminum | 1 | 4 | 2/0 AWG | 4 AWG | 71.4 mm | Aluminum | 1 | €33.19 | |
 |
MPDB63133 | 3 | Aluminum | 1 | 4 | 2/0 AWG | 4 AWG | 71.4 mm | Aluminum | 1 | €39.26 |
