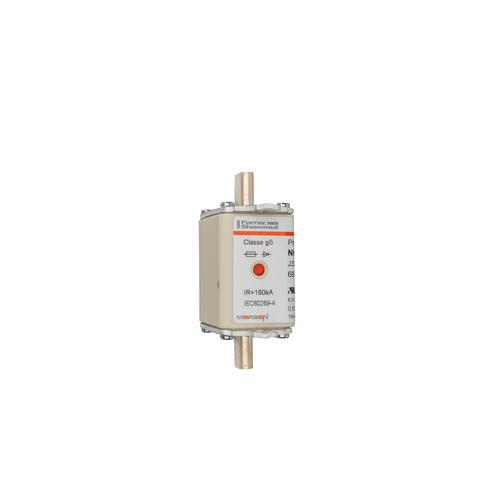

MERSEN FERRAZ J322169 NH00GS69V160PV Fuse Link, 160A, 690V
Get it by Wednesday, Aug 19
€675.06 /pkg. of 3
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Link |
| Ac Max. I R Breaking Capacity I1 | 160 kA |
| Ac/dc | AC |
| Amps | 160A |
| Body/insulating Material | Ceramic |
| Clearing I2t @ Rated Voltage | 21340 sq. A sec. |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Plain Blades |
| Height | 60 mm |
| Indication System | Yes |
| Indication System Type | Double Indicator |
| Length | 78.5 mm |
| Melting I2t | 4270 sq. A sec. |
| Mounting | Clip |
| Power Dissipation @ Rated Amps Value | 19 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 690V |
| Rated Voltage Ac Ul | 700V |
| Rohs Compliant | Yes |
| Speed Characteristic | GS |
| Width | 30 mm |
Shipping Info:
| Ship weight (kg) | 0.6 |
| Ship height (cm) | 6.5 |
| Ship length (cm) | 9.5 |
| Ship width (cm) | 8.51 |
Product Variants
| Product | Model | Amps | Mounting | Connection/terminal Type | Connection/terminal Material | Speed Characteristic | Ac Max. I R Breaking Capacity I1 | Power Dissipation @ Rated Amps Value | Clearing I2t @ Rated Voltage | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
B322047 | 40A | Clip | Plain Blades | Brass | GS | 160 kA | 9 W | 386 sq. A sec. | 3 | €626.67 | |
 |
C301716 | 500A | Bolted | Flush Ends | Brass | GR | 150 kA | 84 W | 280 sq. kA sec. | 1 | €1,257.61 | |
 |
D1014579 | 16A | Clip | Ferrule | Copper | GR | 160 kA | 3 W | 140 sq. A sec. | 1 | €68.39 | |
 |
D301280 | 63A | Bolted | Flush Ends | Brass | GR | 150 kA | 18 W | 1600 sq. A sec. | 1 | €1,068.88 | |
 |
D301349 | 400A | Bolted | Open Slot Blades | Copper | GR | 150 kA | 73 W | 160 sq. kA sec. | 1 | €1,159.91 | |
 |
E302500 | 350A | Bolted | Din 110 Blades | Copper | GR | 150 kA | 60 W | 140 sq. kA sec. | 3 | €4,125.88 | |
 |
E322165 | 125A | Clip | Plain Blades | Brass | GS | 160 kA | 16 W | 10850 sq. A sec. | 3 | €675.06 |
