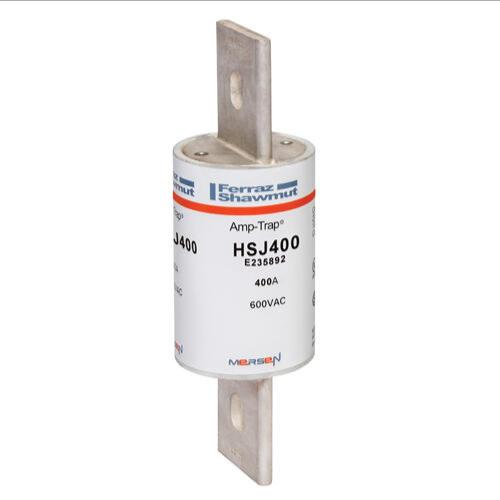

MERSEN FERRAZ HSJ400 Fuse, High Speed, Class J, 600V, 400A
Get it by Tuesday, Dec 23
€1,062.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac Max I.r./breaking Capacity I1 | 200 kA |
| Ac Voltage | 600V AC |
| Ac/dc | AC/DC |
| Amps | 400A |
| Body Material | GMG |
| Body/insulating Material | GMG |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Blade |
| Diameter | 54 mm |
| Frequency | 50/60 Hz |
| Fuse Class | Class J |
| Fuse Dia. | 2 3/25" |
| Fuse Length | 7.13" |
| Length | 181.1 mm |
| Mounting | Clip |
| Mounting Style | Clip |
| Product Datasheet | mersen-ferraz-hsj1.pdf |
| Product Group | Low Voltage UL/CSA Fuses |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 500V |
| Rohs Compliant | Yes |
| Speed Characteristic | High Speed |
| Speed Type | High Speed |
Shipping Info:
| Ship weight (kg) | 0.85 |
| Ship height (cm) | 18.42 |
| Ship length (cm) | 5.38 |
| Ship width (cm) | 5.38 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Body Style | Speed Type | Fuse Dia. | Fuse Length | Dc Voltage Rating | Speed | Visual Indication | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HSJ1 | 1A | - | High Speed | 0.81" | 2 1/4" | - | - | - | 10 | €880.31 | |
 |
HSJ10 | 10A | - | High Speed | 0.81" | 2 1/4" | - | - | - | 1 | €28.27 | |
 |
HSJ100 | 100A | - | High Speed | 1.06" | 4.63" | - | - | - | 1 | €102.50 | |
 |
HSJ110 | 110A | - | High Speed | 1.62" | 5 3/4" | - | - | - | 1 | €550.44 | |
 |
HSJ125 | 125A | - | High Speed | 1.62" | 5 3/4" | - | - | - | 1 | €526.68 | |
 |
HSJ150 | 150A | Blade | High Speed | 1.62" | 5 3/4" | 500V DC | Very Fast Acting | Non Indicating | 1 | €328.93 | |
 |
HSJ175 | 175A | - | High Speed | 1.62" | 5 3/4" | - | - | - | 1 | - | RFQ
|
