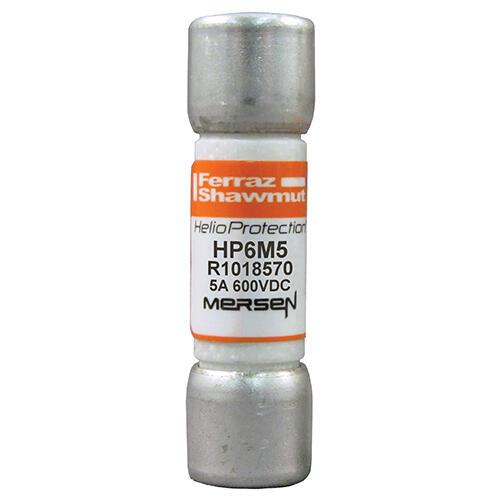

MERSEN FERRAZ HP6M5 Fuse, 600 VDC, 5A, gPV Class
Item: CH4YZJModel: HP6M5Cross Ref: 15D797
7 In Stock
Ships within 2 days via
10.00% off
€24.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Midget Fuse |
| Ac Max I.r./breaking Capacity I1 | 10 kA |
| Ac Voltage Rating | Not Rated |
| Ac/dc | DC |
| Amps | 5A |
| Body Material | GMG |
| Body Style | Cylindrical |
| Body/insulating Material | GMG |
| Class | GPV |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Dc Voltage Rating | 600V DC |
| Diameter | 38.1 mm |
| Element | Single |
| Equivalent Brand And Series | Bussmann Klm, Littelfuse Klkd, Mersen Hp6M |
| Equivalent Series | Hp6M, Klkd, Klm |
| Finish | Tin Plated |
| Fits Fuse Block Style | Nonrejection |
| Frequency | 50/60 Hz |
| Fuse Class | Photovoltaic |
| Fuse Size | 1 1/2" x 13/32" |
| Fuse Type | Photovoltaic |
| Interrupt Rating | 10 kA @ 600V DC |
| Length | 10.4 mm |
| Mounting | Clip |
| Mounting Type | Clip |
| Product Datasheet | mersen-ferraz-hp6m1.pdf |
| Product Group | Special Purpose Fuses |
| Rated Voltage Dc Ul | 600V |
| Rohs Compliant | Yes |
| Series | HP6M Series |
| Speed | Fast Acting |
| Speed Characteristic | GPV |
| Standards | Ce, Csa Component Certified C22.2, Iec 60269-6 Approved, Ul Listed To Standard Ul2579 File E333668 |
| Visual Indication | Non Indicating |
Shipping Info:
| Ship height (cm) | 4.11 |
| Ship length (cm) | 5.38 |
| Ship width (cm) | 2.24 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Ac Voltage Rating | Dc Voltage Rating | Speed | Visual Indication | Body Style | Diameter | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HP6M1 | 1A | Not Rated | 600V DC | Fast Acting | Non Indicating | Cylindrical | 38.1 mm | GMG | €26.77 | |
 |
HP6M10 | 10A | Not Rated | 600V DC | Fast Acting | Non Indicating | Cylindrical | 38.1 mm | GMG | €26.77 | |
 |
HP6M12 | 12A | Not Rated | 600V DC | Fast Acting | Non Indicating | Cylindrical | 38.1 mm | GMG | €26.77 | |
 |
HP6M15 | 15A | Not Rated | 600V DC | Fast Acting | Non Indicating | Cylindrical | 38.1 mm | GMG | €26.77 | |
 |
HP6M2 | 2A | - | - | - | - | - | 38.1 mm | GMG | €26.77 | |
 |
HP6M20 | 20A | Not Rated | 600V DC | Fast Acting | Non Indicating | Cylindrical | 38.1 mm | GMG | €26.77 | |
 |
HP6M25 | 25A | Not Rated | 600V DC | Fast Acting | Non Indicating | Cylindrical | 38.1 mm | GMG | €26.77 |
