MERSEN FERRAZ FSPDB1A Power Distribution Block, 600V, 175A, 1 Pole, Aluminium
Item: AE4KAYModel: FSPDB1ACross Ref: 5LCP6
7 In Stock
Ships within 2 days via
10.00% off
€46.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Power Distribution Block |
| Ac Voltage Rating | 600V |
| Ac/dc | AC/DC |
| Ampere Rating (cu) | 175A |
| Amps | 175A |
| Body Material | Nylon |
| Body/insulating Material | Nylon |
| Connector Material | Aluminum |
| Connector Material Finish | Tin Plated |
| Connector Type | Box |
| Depth | 1.95" |
| For Conductor Material | Aluminum |
| For Maximum Line Wire Size | 2/0 AWG |
| For Maximum Load Wire Size | 2/0 AWG |
| For Minimum Line Wire Size | 14 AWG |
| For Minimum Load Wire Size | 14 AWG |
| Frequency | 50/60 Hz |
| Height | 49.5 mm |
| Installation Mounting | Screw Mount, Din Rail |
| Length | 72.6 mm |
| Line Connections/pole | 1 |
| Line Side Connection Type | Lug |
| Load Connections/pole | 1 |
| Load Side Connection Type | Lug |
| Max. Amps | 175A |
| Maximum Voltage | 1500V DC |
| Mounting Type | Din Rail |
| Number Of Poles | 1 |
| Overall Depth | 1.95" |
| Overall Length | 2.86" |
| Overall Width | 1.95" |
| Power Distribution Block Design | Finger Safe |
| Primary Hole Diameter | 0.45" |
| Primary Number Of Openings Per Pole | 1 |
| Primary Torque Rating | 2/0-#1 100, #2-#6 80, #8-#14 35 |
| Primary Wire Range | 14 to 2/0 AWG |
| Primary Wire Range | #14 AWG to 2/0 AWG |
| Product Datasheet | mersen-ferraz-fspdb1a.pdf |
| Product Group | Power Distribution Blocks |
| Rated Voltage Ac Ul | 1500V |
| Rated Voltage Dc Ul | 1500V |
| Rohs Compliant | Yes |
| Secondary Connection/pole | 1 |
| Secondary Hole Diameter | 0.45" |
| Secondary Number Of Openings Per Pole | 1 |
| Secondary Torque Rating | 2/0-#1 100, #2-#6 80, #8-#14 35 |
| Secondary Wire Range | 2/0 AWG to #14 |
| Secondary Wire Range (awg) | 14 AWG to 2/0 AWG |
| Short Circuit Rating (class Cc) | 100 Ka With 30A Fuse |
| Short Circuit Rating (class G) | 100 Ka With 60A Fuse |
| Short Circuit Rating (class J) | 100 kA With 200A Fuse |
| Short Circuit Rating (class L) | Not Tested |
| Short Circuit Rating (class Rk1) | 100 kA With 200A Fuse |
| Short Circuit Rating (class Rk5) | 100 kA With 100A Fuse |
| Short Circuit Rating (class T) | 100 kA With 200A Fuse |
| Short Circuit Rating (standalone) | 10 kA |
| Special Features | Captive Termination Screws, Compact Modularity, Snap On Din-Rail Mounting |
| Terminal Material | Aluminum |
| Type | FSPDB |
| Voltage | 600V AC |
| Width | 25.4 mm |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 4.95 |
| Ship length (cm) | 7.26 |
| Ship width (cm) | 4.95 |
| HS code | 8537109070 |
| Country of Origin | MX |
Product Details:
- Primary Connections/Pole (1)
Documentation:
Product Variants
| Product | Model | Height | Depth | Overall Length | Amps | Mounting Type | Number Of Poles | Ac Voltage Rating | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FSPDB2A | 56.1 mm | 2.21" | 3.45" | 175A | Din Rail | 1 | 600V | FSPDB | €80.85 | |
 |
FSPDB3A | 64.3 mm | 2.53" | 3.97" | 310A | Din Rail | 1 | 600V | FSPDB | €89.33 | |
 |
FSPDB4A | 80 mm | 3.15" | 5.73" | 335A | Din Rail | 1 | 600V | FSPDB | €120.11 | |
 |
FSPDB5A | 80 mm | 3.15" | 5.71" | 840A | Din Rail | 1 | 600V | FSPDB | €258.62 | |
 |

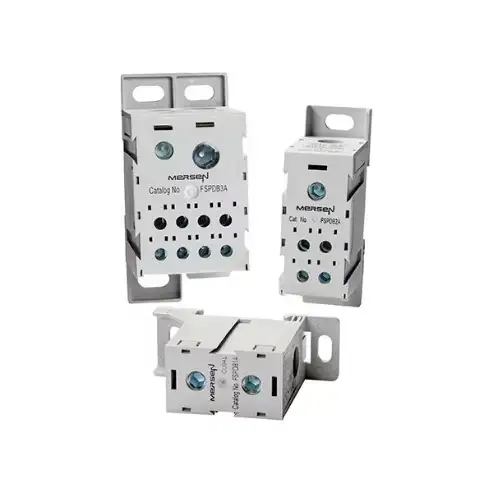

FSPDB1C | 49.5 mm | - | - | - | - | 1 | 600V | - | €57.72 | |
 |
FSPDB2C | 56.1 mm | - | - | - | - | 1 | 600V | - | €89.33 | |
 |
FSPDB3C | 64.3 mm | - | - | - | - | 1 | 600V | - | €295.42 |
