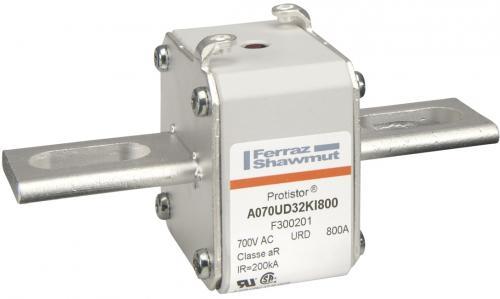

MERSEN FERRAZ F300201 A070UD32KI800 Fuse, 800A
Get it by Tuesday, Feb 17
€2,459.44 /pkg. of 3
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac Max I.r./breaking Capacity I1 | 200 kA |
| Ac/dc | AC |
| Ampere Rating | 800A |
| Body/insulating Material | Ceramic |
| Clearing I2t At Rated Voltage | 660 sq. kA sec. |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Slotted Blades |
| Finish | Silver Plated |
| Fuse Size | 32 |
| Height | 65 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 134 mm |
| Melting I2t | 115 sq. kA sec. |
| Mounting | Bolted |
| Power Dissipation At Rated Current Value | 120 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 690V |
| Rated Voltage Ac Ul | 700V |
| Rohs Compliant | Yes |
| Speed Characteristic | AR |
| Width | 59 mm |
Shipping Info:
| Ship weight (kg) | 1.64 |
| Ship height (cm) | 7.19 |
| Ship length (cm) | 19.51 |
| Ship width (cm) | 16 |
