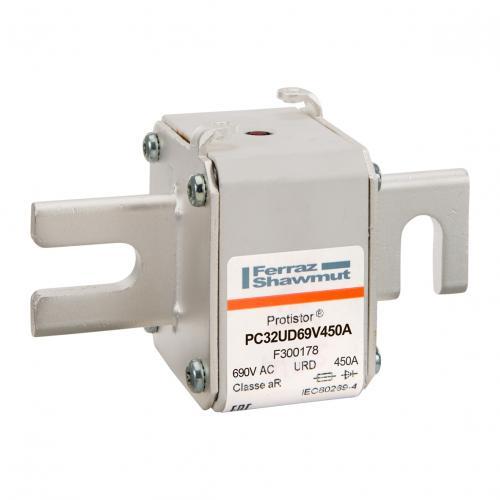

MERSEN FERRAZ F300178 PC32UD69V450A Fuse, 450A
Get it by Friday, Jul 3
€2,384.47 /pkg. of 3
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac Max. I R Breaking Capacity I1 | 200 kA |
| Ac/dc | AC |
| Amps | 450A |
| Body/insulating Material | Ceramic |
| Clearing I2t @ Rated Voltage | 130 sq. kA sec. |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Din 80 Blades |
| Finish | Silver Plated |
| Fuse Size | 32 |
| Height | 65 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 110 mm |
| Melting I2t | 22 sq. kA sec. |
| Mounting | Bolted |
| Power Dissipation @ Rated Amps Value | 80 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 690V |
| Rated Voltage Ac Ul | 700V |
| Rohs Compliant | Yes |
| Speed Characteristic | AR |
| Width | 59 mm |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 7.49 |
| Ship length (cm) | 19.51 |
| Ship width (cm) | 14 |
Product Variants
| Product | Model | Amps | Mounting | Height | Fuse Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|
 |
A300081 | 900A | Bolted | 78.5 mm | 33 | 3 | €3,534.14 | |
 |
A300173 | 700A | Bolted | 65 mm | 32 | 3 | €2,376.20 | |
 |
A300196 | 450A | Bolted | 65 mm | 32 | 1 | €734.70 | |
 |
A300219 | 550A | Bolted | 78.5 mm | 33 | 1 | €1,123.42 | |
 |
A300242 | 800A | Bolted | 78.5 mm | 33 | 1 | €1,044.86 | |
 |
A300265 | 1100A | Bolted | 78.5 mm | 33 | 3 | €3,530.62 | |
|
B300082 | 1000A | Bolted | 78.5 mm | 33 | 3 | €3,715.43 |
