MERSEN FERRAZ ATDR1 Time Delay Fuse, 600VAC/300 VDC, 1A, Class CC, 1 Pole
Item: AG8LUPModel: ATDR1Cross Ref: 4ZAU5
7 In Stock
Ships within 2 days via
10.00% off
€16.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Time Delay Fuse |
| Ac Max I.r./breaking Capacity I1 | 200 kA |
| Ac Voltage | 600V AC |
| Ac/dc | AC/DC |
| Amps | 1A |
| Body Material | Melamine |
| Body/insulating Material | GMG |
| Class | Class CC |
| Compatible Fuse Block Series | Uscc, Usfmcc |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Dc Voltage Rating | 300V DC |
| Diameter | 10.4 mm |
| Element | Dual |
| Equivalent Brand And Series | Bussmann LP-CC, Littelfuse CCMR, Mersen ATDR Series |
| Equivalent Series | Atdr, Ccmr, Lp-Cc |
| Finish | Tin Plated |
| Fits Fuse Block Style | Rejection |
| Frame Type | ATDR |
| Frequency | 50/60 Hz |
| Fuse Class | Class CC |
| Fuse Size (lg X Dia) | 1 1/2" x 13/32" |
| Length | 38.1 mm |
| Mounting | Clip |
| Number Of Poles | 1 |
| Product Datasheet | mersen-ferraz-atdr1.pdf |
| Product Group | Low Voltage UL/CSA Fuses |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 300V |
| Series | ATDR Series |
| Speed | Time Delay |
| Speed Characteristic | Time Delay |
| Speed Type | Time Delay |
| Standards | Ul/Csa |
| Visual Indication | Non Indicating |
| Voltage | 600V |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.03 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 1.04 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Body Style | Body Material | Class | Amps Rating | Dc Voltage Rating | Speed | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

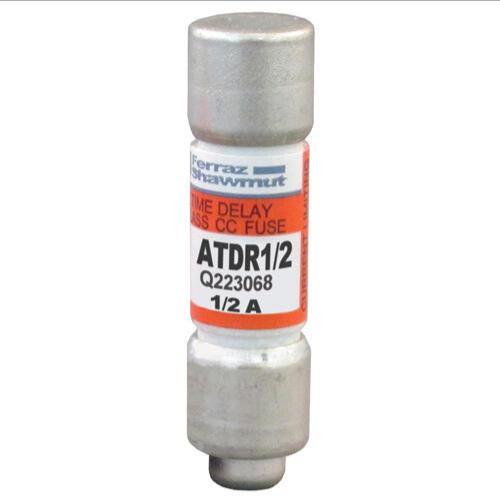

ATDR1/2 | 1/2A | Cartridge Fuses | Melamine | CC | 500 mA | 300V DC | Time Delay | Power Fuses | €26.44 | |
 |
ATDR1/4 | 1/4A | Cartridge Fuses | Melamine | CC | 250 mA | 300V DC | Time Delay | Power Fuses | €18.91 | |
|
ATDR10 | 10A | Cartridge Fuses | Melamine | CC | 10A | 300V DC | Time Delay | Power Fuses | €24.19 | |
|
ATDR1-1/2 | 1.5A | Cartridge Fuses | Melamine | CC | 1.5A | 300V DC | Time Delay | Power Fuses | €18.91 | |
|
ATDR1-1/4 | 1.25A | Cylindrical | Melamine | CC | - | 300V DC | Time Delay | - | €25.53 | |
|
ATDR1-1/8 | 1.125A | Cylindrical | Melamine | CC | - | 300V DC | Time Delay | - | €17.07 | |
 |
ATDR12 | 12A | Cartridge Fuses | Melamine | Class CC | 12A | 300V DC | Time Delay | Power Fuses | €17.80 |
