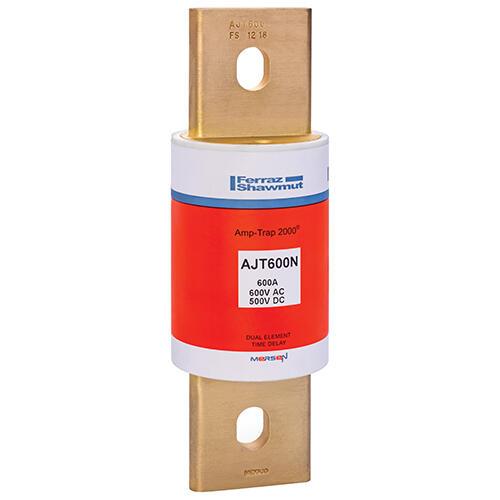

MERSEN FERRAZ AJT600N Time Delay Fuse, 600V, 600A, Class J
Get it by Tuesday, Dec 23
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Time Delay Fuse |
| Ac Max I.r./breaking Capacity I1 | 200 kA |
| Ac Voltage | 600V AC |
| Ac/dc | AC/DC |
| Amps | 600A |
| Body Material | GMG |
| Body/insulating Material | GMG |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Blade |
| Diameter | 63.5 mm |
| Frequency | 50/60 Hz |
| Fuse Class | Class J |
| Fuse Dia. | 2 1/2" |
| Fuse Length | 8" |
| Length | 203.2 mm |
| Mounting | Clip, Bolted |
| Mounting Style | Clip Or Bolted |
| Product Datasheet | mersen-ferraz-ajt10.pdf |
| Product Group | Low Voltage UL/CSA Fuses |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 500V |
| Rohs Compliant | Yes |
| Speed Characteristic | Time Delay |
| Speed Type | Time Delay |
Shipping Info:
| Ship weight (kg) | 1.56 |
| Ship height (cm) | 6.05 |
| Ship length (cm) | 22.23 |
| Ship width (cm) | 6.35 |
Documentation:
